The ALMICRO KW-900 Tool Maker Microscope is a high-precision dimensional measurement microscope, engineered for tool rooms, inspection labs, and manufacturing quality control. Unlike MM-series metallurgical microscopes (MM-5 / MM-5A / MM-6), which focus on surface inspection, microstructure analysis, or hardness measurement, the KW-900 is purpose-built for accurate linear and angular measurement of components.
It features high-precision X-Y micrometer-controlled ball-bearing slides with a least count of 0.01 mm / 0.005 mm, enabling exact measurement of tool profiles, edges, radii, and mechanical parts. The rotary stage with 360° rotation and 30° inclined observation tube allow precise angular measurement and comfortable long-duration inspection.
With both transmitted and incident illumination, the KW-900 supports measurement of opaque and transparent components, making it ideal for dies, punches, gauges, PCBs, precision machined parts, and calibration tasks.
How KW-900 differs from MM-Series Microscopes
KW-900: Designed for dimensional & angular measurement
MM-5 / MM-5A: Metallurgical surface inspection & microstructure study
MM-6: Dedicated Brinell hardness measurement
High-accuracy X-Y micrometer stage (measurement-grade)
Rotary stage for angular inspection (not imaging-focused)
Supplied in a protective wooden box for metrology environments
Key Highlights
Precision X-Y movement on ball-bearing guides
Least count: 0.01 mm / 0.005 mm
360° rotary stage for angular measurement
30° inclined monocular observation tube
Large, rigid base for vibration-free accuracy
Transmitted + incident illumination
Ideal for tool rooms, calibration labs & manufacturing QC
Ideal for:
Tool rooms, gauge inspection, die & mold measurement, component profiling, manufacturing quality control, engineering colleges, and calibration laboratories.
Customize
Product Details

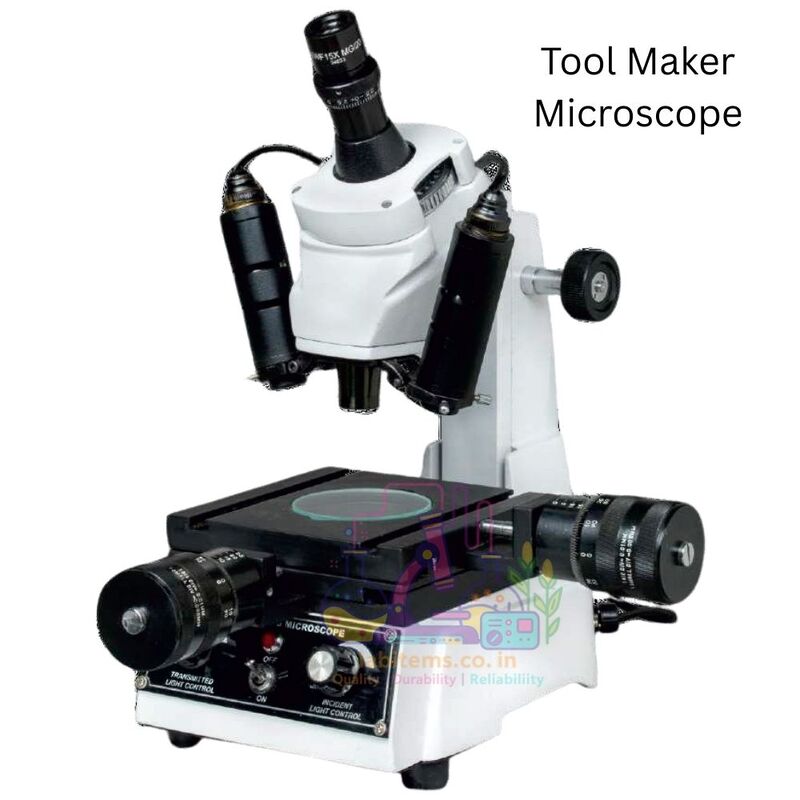

The KW-900 Tool Maker Microscope is a high-precision measuring microscope designed for accurate dimensional inspection, tool verification, and precision engineering applications. Equipped with X–Y movement on ball-bearing slides, a fine least count of 0.01 mm / 0.005 mm, and both transmitted and incident illumination, the KW-900 delivers reliable measurement performance for tool rooms, metrology labs, and manufacturing quality control.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Precision X–Y Measuring Stage | Accurate dimensional measurement in both directions |
| Fine Least Count (0.01 mm / 0.005 mm) | High measurement resolution for precision components |
| Ball Bearing Guided Stage | Smooth, backlash-free stage movement |
| Goniometer Head | Angular measurement capability |
| Dual Illumination (Incident & Transmitted) | Suitable for opaque and transparent samples |
| Heavy Rigid Base | Excellent vibration damping and stability |
| Monocular Inclined Viewing | Comfortable observation during prolonged use |
| Supplied in Wooden Box | Safe storage and transport |
Optical & Observation System
| Parameter | Specification |
|---|---|
| Observation Tube | Monocular |
| Tube Inclination | 30° |
| Head Type | Goniometer Head |
| Viewing Comfort | Ergonomically inclined design |
Measuring Stage & Movement
| Parameter | Specification |
|---|---|
| Stage Size | 150 × 150 mm |
| Stage Guidance | Ball bearing guides |
| X–Y Travel | Up to 50 mm in each direction |
| Measurement System | Precision micrometer driven |
| Least Count | 0.01 mm / 0.005 mm |
Base & Mechanical Construction
| Feature | Description |
|---|---|
| Base Type | Large, heavy-duty base |
| Rigidity | High structural stability |
| Vibration Control | Enhanced accuracy during measurement |
| Suitability | Ideal for shop-floor and lab environments |
Illumination System
| Parameter | Specification |
|---|---|
| Illumination Type | Transmitted illumination (sub-stage) |
| Light Source | Halogen lamp |
| Illumination Mode | Bottom illumination for profile and contour inspection |
| Additional Lighting | Incident light support |
Applications
| Industry / Area | Application |
|---|---|
| Tool Rooms | Tool and die inspection |
| Metrology Labs | Dimensional measurement |
| Precision Engineering | Component verification |
| Manufacturing QC | Quality inspection |
| Automotive & Aerospace | Precision part analysis |
| Educational Institutes | Measurement and metrology training |
Packaging & Delivery
| Item | Details |
|---|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Cardboard Box |
| Special Packing | Supplied in wooden storage box |
| Transport Safety | Secure and shock-resistant |
