Dual Light Trap (DLT) with UV LED and Miniature light trap on CDC model with all accessories LI-MR-47a

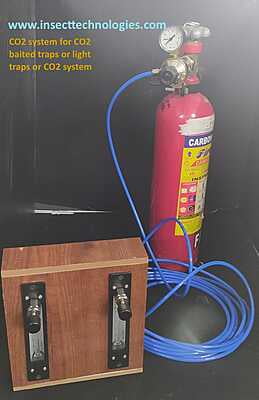

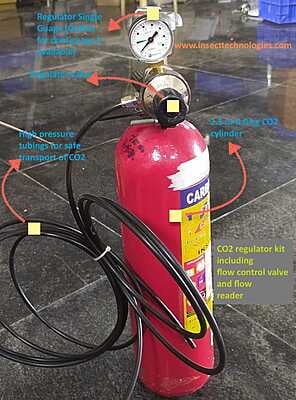

The insectPRO Dual Light Trap (DLT) is available on GeM for purchase Click here to access the link . CO2 accessories or upgrade set can be found here

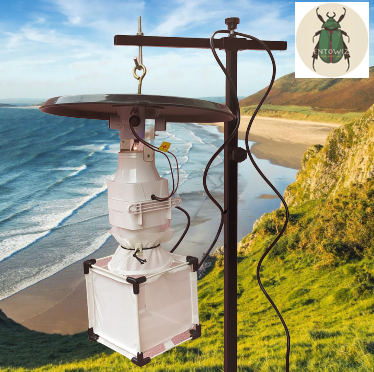

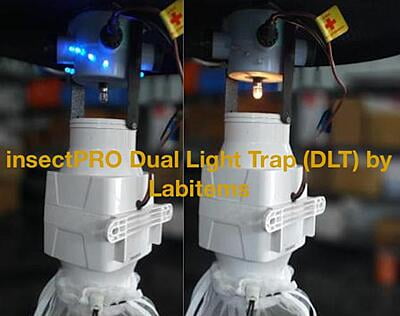

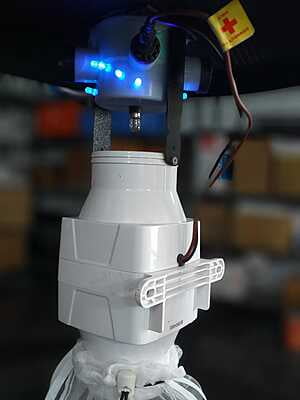

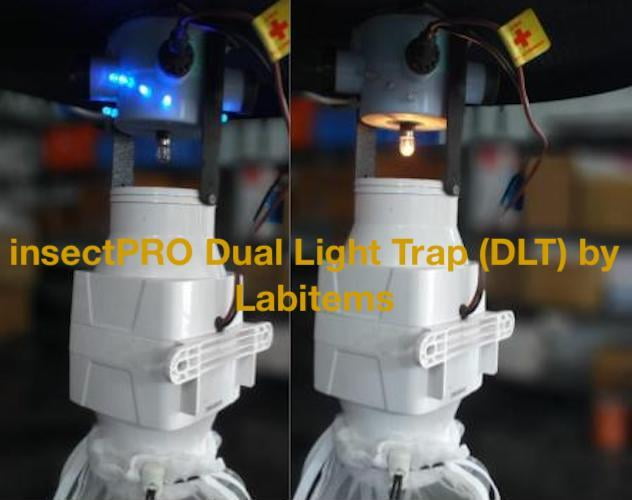

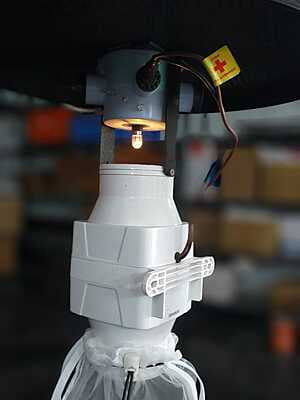

The dual model light trap that works both as a UV light trap and as a CDC traditional miniature light bulb trap. The same trap supplied with the dual set up under a single toggle switch. Using the toggle switch the required lighting system can be used one at a time i.e. trap will run either on UV or on miniature bulb. Please watch a working video for more information. The trap has extensively been tested under indoor and field conditions successfully. The unit has been tested against various insect species and is capable of catching Aedes mosquito in doors. The unit has been constructed keeping in view of the field and rugged conditions. The fan assembly is not visible outside which is cased in a ABS shield casing as shown in the picture. The unit has a rain shield to protect unit and its electronics and electrical components from rain. The trap is supplied with insect collection cages which are removables from the main unit. One cage can be installed and the other can be used to replace the existing cage in the next day to replace the old. No need to work in the field with mosquitoes as the cage can be carried to laboratory and work with the same at convenience. One field bag will be provided to hold all of the items together. Two units of 12v 7ah will be supplied along with a one powerful, auto-cut off charger to be used to charge the batteries conveniently.
1 dual light trap assembly (DLT Assembly) | 2 light weight cages | Two batteries (Parallel connection cable) | One field bag to carry the contents | One aspirator | One AC adaptor | One DC cable cum charging wire | One Charger | Field installation height adjustable stand, two Batteries, AC power adaptor (helps run the trap on AC power, 5m cable for distant installations), Battery Charger
Additional recommended items: a Mechanical Aspirator, Advanced Mechanical aspirator for field collection of insects
Installation instructions of insectPRO DLT are here
Download the product brochure here
