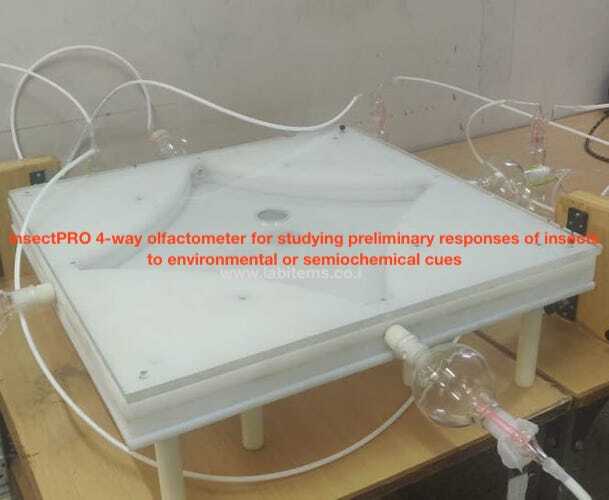

Four-Way Insect Olfactometer

The four-way olfactometer is a standard tool used in entomology and chemical ecology to study insect responses to different odors. The design consists of a central release chamber connected to four arms, each supplied with an independent airflow. This setup allows researchers to present insects with multiple odor sources or odor versus control comparisons in the same experiment.

How It Works

The device has four arms connected to a central chamber:

1. The test insect is released in the central chamber.

2. Each arm carries air containing a different odor source (plant extract, pheromone, chemical, etc.).

3. Airflow pumps ensure the odors move toward the center.

4. Researchers observe which arm the insect chooses, indicating attraction or repulsion.

Example test:

The insect’s movement toward a specific arm shows its behavioral preference.

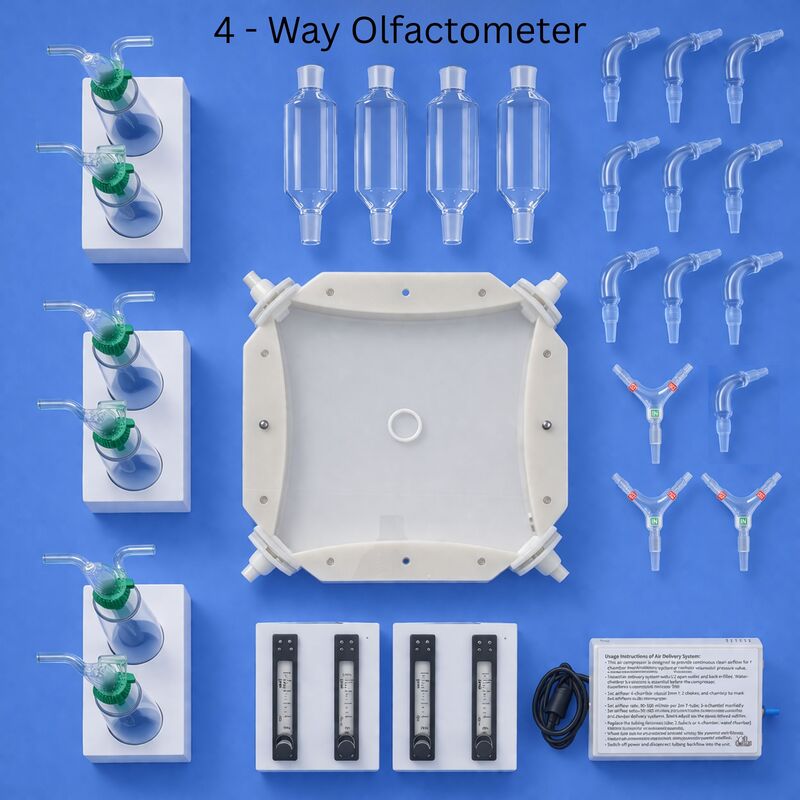

Main Components

Key Features

• Multiple size options – Available in 1 × 1 ft, 1.5 × 1.5 ft, and 2 × 2 ft models to suit different insect species and experimental setups.

• Clearance height variants – Chambers are available with 20 mm or 40 mm height, allowing flexibility for both crawling insects and flying insects.

• Transparent working chamber – Ensures easy observation and recording of insect movement and choice behavior.

• Independent airflow channels – Each arm can deliver clean, humidified, and filtered air, with or without odor stimulus. (See airflow delivery systems and sample containing bottles for odor setups.)

• Modular design – Easy to clean, assemble, and integrate with odor delivery accessories.

Typical Applications

• Studying insect attraction or repellency to plant volatiles or synthetic compounds.

• Screening repellents or attractants for pest management studies, often combined with aspirators for insect collection.

• Understanding host-finding behavior in vectors like mosquitoes, aphids, or whiteflies—where insect cages are often used for rearing test insects.

• Training and student experiments in insect behavior and ecology, supported with field utility bags and collection kits.

Why These Variants?

• Smaller chambers (1 × 1 ft, 20 mm height) are suited for small insects like aphids, thrips, or parasitoids.

• Larger chambers (2 × 2 ft, 40 mm height) provide more space for larger beetles, moths, or mosquitoes.

• The choice of clearance height helps maintain appropriate movement conditions depending on whether the insects walk, hop, or fly.
