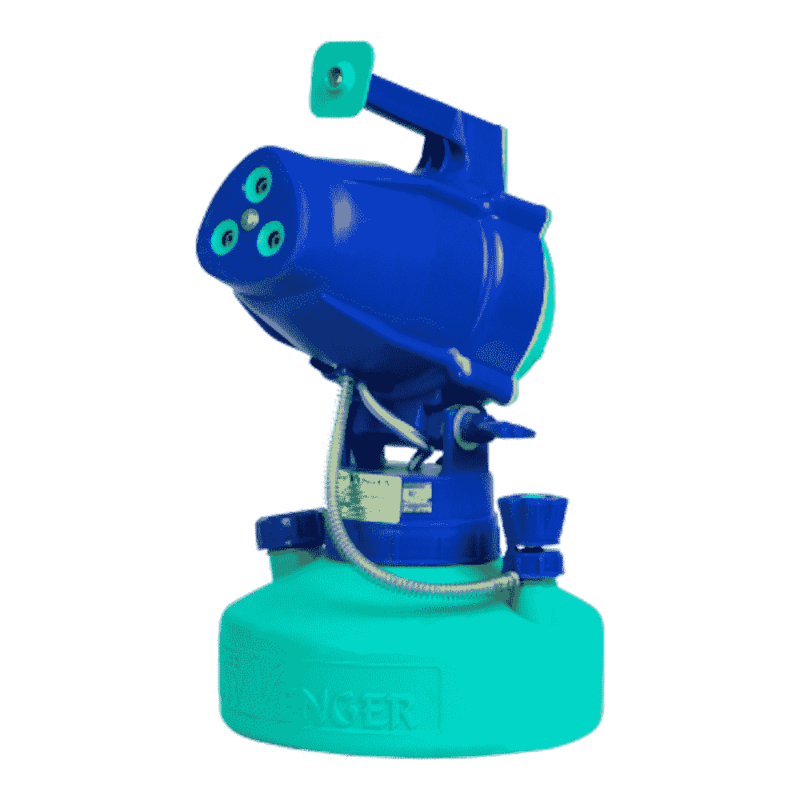

ULV fogger AVVENGER - Electric Ultra Low Volume Fogging Machine
Electric ULV Fogger Avvenger – Portable Mosquito & Disinfection Fogging Machine
The ULV Fogger Avvenger is a high-performance electric ultra low volume (ULV) fogging machine designed for effective mosquito control, disinfection, and pest management. It produces fine mist droplets ranging from 5–50 microns, ensuring uniform chemical distribution and effective coverage.
Equipped with a powerful 1100W motor, heavy-duty blower assembly, and 4-liter HDPE chemical tank, the machine delivers adjustable output up to 13 liters per hour. The chrome-plated brass metering valve allows precise chemical flow control for efficient fogging operations.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Discharge Rate | 0 – 13 Liters / Hour |
| Droplet Size | 5 – 50 Microns |
| Voltage | 230 V / 50 Hz |
| Motor Power | 1100 W |
| Phase | Single Phase |
| Motor Speed | 20,000 RPM |
| Tank Capacity | 4 Liters |
| Coverage Area | 2500 m² / Hour |
| Cable Requirement | 3 Core Flexible (40×36, 20 Amp) |
| Weight | Approx. 5.75 Kg |
Its lightweight portable design makes it ideal for use in hospitals, warehouses, public health departments, agriculture, and sanitation programs.
Customize
Product Details
The ULV Fogger Avvenger is a compact and efficient electric ultra-low-volume fogging machine designed for mosquito control, pest management, and sanitation fogging applications.
The fogger uses a high-speed blower system to atomize liquid chemicals into ultra-fine droplets between 5–50 microns, allowing the fog to remain suspended in air for longer durations. This ensures effective penetration into difficult areas such as corners, vegetation, warehouses, and indoor spaces.
The machine features a 4-liter HDPE blow-molded chemical tank, offering excellent chemical resistance and durability. The SS chrome-plated brass metering valve ensures accurate chemical discharge control.
Powered by a 1100W single-phase electric motor running at 20,000 RPM, the fogger generates strong airflow and wide area coverage of up to 2500 m² per hour, making it suitable for both indoor and outdoor fogging operations.
Its lightweight portable design (approx. 5.75 kg) allows easy transportation and convenient handling during long spraying operations.
Key Features
• Ultra Low Volume (ULV) Fogging Technology
Produces fine mist droplets between 5–50 microns for efficient pest control.
• Powerful 1100W Electric Motor
High-speed motor operating at 20,000 RPM ensures powerful fogging performance.
• 4 Liter HDPE Chemical Tank
Durable blow-molded tank resistant to chemicals and corrosion.
• Adjustable Output Control
Discharge rate adjustable from 0 to 13 liters per hour.
• Chrome Plated Brass Metering Valve
Ensures precise flow control and long operational life.
• Wide Coverage Area
Covers approximately 2500 square meters per hour.
• Lightweight Portable Design
Weighing only ~5.75 kg, making it easy to handle and operate.
• Clean Fogging Operation
Produces fine fog without visible liquid residue.
Applications
• Mosquito control programs
• Public health sanitation
• Hospital disinfection fogging
• Warehouse pest control
• Poultry farm sanitation
• Agricultural pest management
• Indoor & outdoor fogging operations
• Commercial building disinfection
