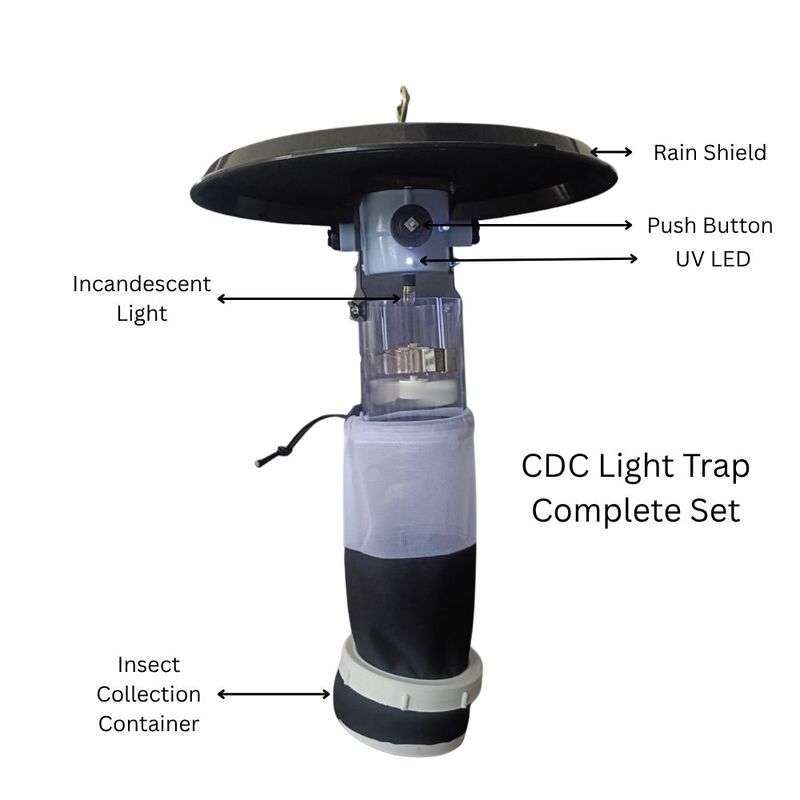

CDC Light Trap Complete Set with Insect Container
📦 Contents
| S.No | Component | Quantity |
|---|---|---|
| 1 | Rain Shield with Hanger | 1 |
| 2 | Light Assembly Unit | 1 |
| 3 | Blower Unit | 1 |
| 4 | Insect Collection Container / Cage | 2 |
| 5 | Battery (Not available for exports) | 1 |
| 6 | Battery Charger | 1 |
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Rain Shield Diameter | 360 mm |
| Light Assembly | UV LED (6 VDC) – 6 Nos, Incandescent Light (6 VDC) – 1 No |
| Blower Unit | 6 VDC Fan |
| Insect Collection Container | Height: 30 cm (approx.), Diameter: 12 cm |
| Insect Collection Cage | 15 Ă— 15 Ă— 15 cm |
| Battery | 6 VDC, 10 Ah |
| Charger Input | 100–240 VAC, 0.6 A, 50/60 Hz |
| Charger Output | 9 VDC, 2.2 A |
🔋 Performance
| Parameter | Specification |
|---|---|
| Operating Time | Up to 8 hours on a single charge |
Customize
Product Details
The Dual Light Trap (DLT) with UV LED and Miniature Light Trap on CDC Model is an advanced insect collection
system developed for effective monitoring of mosquitoes and other nocturnal flying insects. The trap integrates
two proven attraction mechanisms—UV LED illumination and a CDC-style miniature light trap design—to enhance
capture efficiency across a wide range of insect species.
The UV LED light source acts as a strong visual attractant, drawing insects toward the trap, while the CDC model
miniature trap configuration ensures efficient suction and secure retention of captured specimens in the
collection chamber. This dual-mode attraction improves sampling reliability compared to single-light systems.
Designed for field portability and ease of deployment, the trap is lightweight, compact, and suitable for outdoor
and semi-outdoor environments. Its low power consumption makes it ideal for extended surveillance periods,
particularly in remote or resource-limited locations.
By combining UV LED attraction with CDC-style trapping efficiency, the Dual Light Trap delivers consistent,
repeatable insect collection, making it a dependable tool for professional vector surveillance and research
applications.
