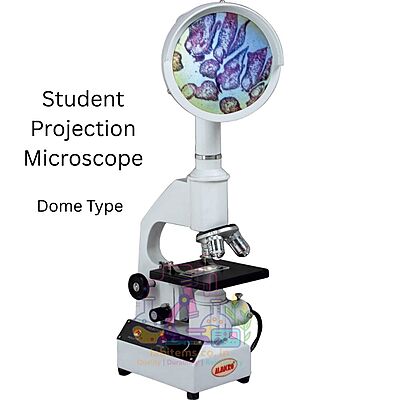

Student Projection Microscope KW-700C (Dome Type) - ALMICRO
The ALMICRO KW-700C Student Projection Microscope is specially designed for school-level education and basic classroom demonstrations, offering clear specimen visualization through a rotatable dome-type projection screen. Equipped with energy-efficient LED illumination, achromatic objectives, and a stable rack-and-pinion focusing mechanism, it provides bright and sharp projected images with minimal heat generation. Its compact design, simple operation, and robust construction make it ideal for student training, biology classrooms, and introductory microscopy learning.
Comparison: KW-700C vs Projection Microscope KW-500
| Feature | KW-700C (Student Projection) | KW-500 (Projection Microscope) |
|---|---|---|
| Target User | School students & basic labs | Colleges & training institutes |
| Illumination | LED lamp (low heat, low power) | 12V 100W halogen (high intensity) |
| Projection Screen | 150 mm dome screen, 360° rotatable | 160 mm flat ground glass screen |
| Viewing Orientation | Direct dome viewing | Screen & wall projection |
| Application | Classroom teaching, demonstrations | Group instruction & lectures |
| Overall Design | Compact, student-friendly | Heavy-duty, demonstration-focused |
Best suited for
School biology laboratories
Student demonstrations
Introductory microscopy education
Low-power, safe classroom environments
Customize
Product Details
The KW-700C Student Projection Microscope (Dome Type) is specially designed for classroom teaching, school laboratories, and group learning environments, allowing multiple students to observe microscopic specimens simultaneously through a rotatable dome-style projection screen.
With its compact monocular design, LED illumination, smooth rack & pinion focusing, and durable construction, the KW-700C provides an ideal balance of clarity, safety, and ease of use, making it perfectly suited for school-level biology education and demonstrations.
Key Features & Advantages
| Feature | Benefit |
|---|---|
| Dome-Type Projection Screen | Enables group viewing without eyepieces |
| 360° Rotatable Screen | Flexible viewing angle for classrooms |
| LED Illumination | Long life, low heat, energy efficient |
| Dual-Side Focusing Knobs | Easy operation for instructors and students |
| Triple Revolving Nosepiece | Quick objective changes during lessons |
| Compact Student-Friendly Design | Safe and easy to handle in school labs |
Optical Specifications
| Parameter | Specification |
|---|---|
| Optical System | Achromatic |
| Objectives | 4×, 10×, 40× |
| Tube Type | Monocular fixed straight tube |
| Tube Length | 160 mm |
Mechanical & Focusing System
| Parameter | Specification |
|---|---|
| Stage Type | Square stage |
| Stage Size | 110 × 110 mm |
| Stage Clips | Provided |
| Mechanical Stage | Optional |
| Focusing System | Rack & pinion |
| Focusing Range | 15 mm |
| Controls | Focusing knobs on both sides |
Projection System
| Parameter | Specification |
|---|---|
| Screen Type | Glass dome projection screen |
| Screen Diameter | 150 mm |
| Rotation | 360° rotatable on microscope tube |
| Viewing Mode | Direct screen projection |
Illumination System
| Parameter | Specification |
|---|---|
| Light Source | LED lamp |
| Illumination Type | Transmitted light |
| Power Supply | 230V AC |
Applications
| Field | Usage |
|---|---|
| Schools | Biology and science education |
| Student Laboratories | Group learning and demonstrations |
| Teaching Institutions | Introductory microscopy |
| Training Centers | Visual specimen explanation |
Packaging & Delivery
| Item | Details |
|---|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Corrugated cardboard box |
| Shipping | Secure and transport-safe |
Specifications
- Eye Piece TypeProjection
- NosepieceTriple revolving nosepiece with positive click stops
- StageFixed 110 × 110 mm with stage clips
- FocusingRack & pinion focusing(15 mm) - Focusing knobs on both sides
- IlluminationTransmitted LED
- Objective TypeAchromatic
- Power230V - 50 HZ AC
- Optical QualityProjection-optimized achromatic optics
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
- Special AttachmentsOptional Mechanical Stage
- Screen Diameter150 mm
- Screen TypeGlass dome projection screen
- Viewing Environment360° rotatable on microscope tube
- Rotation360° rotatable on microscope tube
- Tube TypeMonocular fixed straight tube
- Tube Length160 mm
