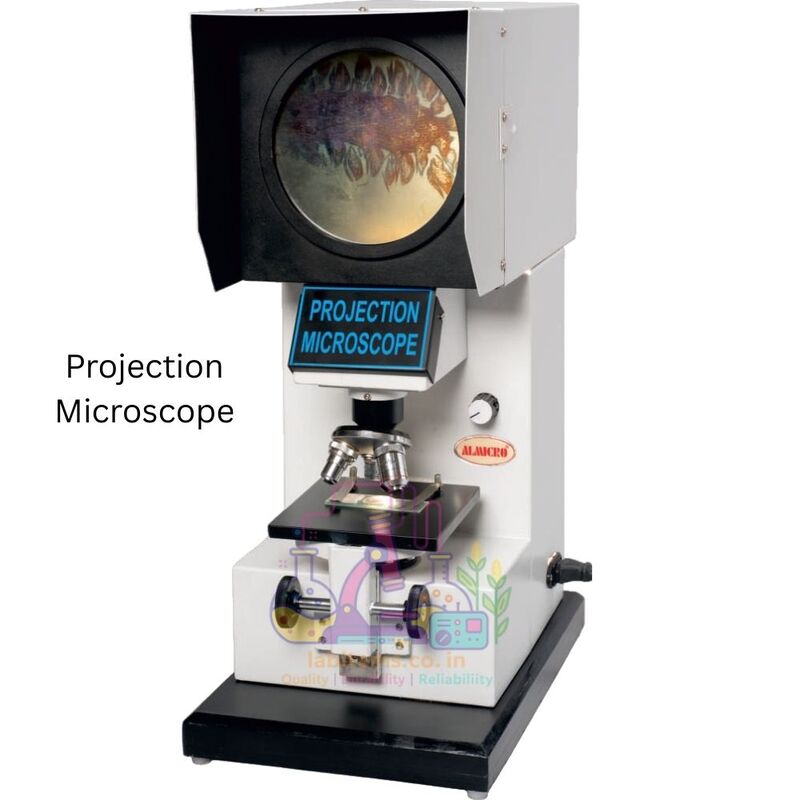

Projection Microscope KW-500 - ALMICRO
The ALMICRO KW-500 Projection Microscope is designed for group teaching, classroom demonstrations, and training laboratories, allowing specimens to be viewed simultaneously by multiple users on a built-in screen or projected onto a wall. Unlike conventional student or teaching microscopes that are limited to individual viewing, the KW-500 features a large optically ground projection screen with high-intensity halogen illumination, ensuring clear, magnified image display even in low-light environments. Equipped with achromatic objectives and a stable rack-and-pinion focusing system, it is ideally suited for biology education, medical training institutes, and lecture-based demonstrations where collective observation is essential.
How it differs from standard Teaching / Student Microscopes
Projection viewing instead of eyepiece-only observation
Enables simultaneous viewing by an entire class
Designed specifically for demonstration & instruction, not routine slide analysis
Higher illumination output for screen and wall projection
Customize
Product Details
The KW-500 Projection Microscope is specially designed for classroom teaching, group demonstrations, and educational institutions, enabling clear projection of microscopic specimens onto a built-in screen or wall surface. With its powerful halogen illumination, optically true projection screen, and rugged mechanical construction, the KW-500 allows multiple students to observe specimens simultaneously without individual eyepiece viewing.
This microscope is ideal for schools, colleges, training centers, and teaching laboratories, where visual clarity and ease of demonstration are essential.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Built-in Projection System | Enables group viewing without eyepieces |
| High-Intensity Halogen Illumination | Bright, clear projected images |
| Ground Glass Projection Screen | Sharp and distortion-free projection |
| Wall & Screen Projection Capability | Flexible teaching options in dark rooms |
| Dual-Side Focusing Knobs | Easy operation from both sides |
| Triple Revolving Nosepiece | Quick objective change during demonstrations |
| Robust Metal Body | Long-term durability for institutional use |
Optical Specifications
| Parameter | Specification |
|---|---|
| Objectives | Achromatic 5×, 10×, 20× |
| Nosepiece | Triple revolving nosepiece with positive click stops |
| Optical System | Projection-optimized achromatic optics |
Mechanical & Focusing System
| Parameter | Specification |
|---|---|
| Stage Type | Square stage |
| Stage Size | 110 × 110 mm |
| Stage Clips | Provided for secure slide holding |
| Mechanical Stage | Optional |
| Focusing System | Rack & pinion focusing |
| Focusing Range | 15 mm |
| Control | Focusing knobs on both sides |
Projection System
| Parameter | Specification |
|---|---|
| Screen Diameter | 160 mm |
| Screen Type | Optically true ground glass |
| Projection Mode | Screen and wall projection |
| Screen Housing | Hinged, removable for wall projection |
| Viewing Environment | Optimized for dark room use |
Illumination System
| Parameter | Specification |
|---|---|
| Light Source | Halogen lamp |
| Lamp Rating | 12V / 100W |
| Illumination Type | High-intensity transmitted light |
| Power Supply | 230V AC |
Applications
| Field | Usage |
|---|---|
| Schools & Colleges | Biology and science demonstrations |
| Teaching Laboratories | Group specimen observation |
| Training Institutes | Instructor-led visual teaching |
| Educational Institutions | Projection-based microscopy learning |
Packaging & Delivery
| Item | Details |
|---|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Corrugated cardboard box |
| Shipping | Secure packaging suitable for transport |
Specifications
- Eye Piece TypeProjection
- NosepieceTriple revolving nosepiece with positive click stops
- StageFixed 110 × 110 mm with stage clips
- FocusingRack & pinion focusing(15 mm) - Focusing knobs on both sides
- IlluminationHalogen lamp - 12V / 100W (High-intensity transmitted light)
- Objective TypeAchromatic
- Objectives5X; 10X & 20X
- Power230V - 50 HZ AC
- Optical QualityProjection-optimized achromatic optics
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
- Special AttachmentsOptional Mechanical Stage
- Screen Diameter160 mm
- Screen TypeOptically true ground glass
- Projection ModeScreen and wall projection
- Screen HousingHinged & removable for wall projection
- Viewing EnvironmentOptimized for dark room use
