Almicro Projection Microscope Series—precision teaching tools for real-time group specimen visualization in classrooms and laboratories. The KW-700C Dome Type Student Projection Microscope features a monocular tube, LED lamp illumination, and a 150mm rotatable glass screen for direct above-instrument viewing. The KW-500 Wall Projection Microscope enables bright, high-resolution images on a 160mm ground glass screen or full wall projection in dark rooms, powered by a 100W halogen lamp. Both models offer triple nosepieces, simple operation, reliable mechanics, and achromatic objectives for multi-level magnification—ideal solutions for schools, colleges, and educational demonstrations.
Customize
Almicro Student & Projection Microscope Series – Group Teaching Excellence
The Alamicro projection microscope range is specially engineered for effective science education, classroom engagement, and large-group specimen demonstrations. With robust design, easy operation, and versatile projection capability, these microscopes allow many students to simultaneously view the same specimen—essential for schools, colleges, and training institutes.

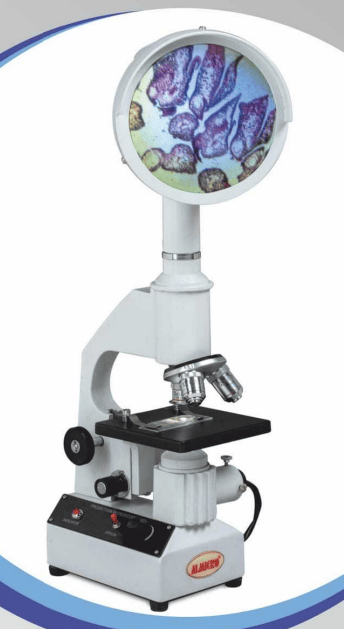

KW-700C Student Projection Microscope (Dome Type)
- Design: Monocular fixed straight tube (length 160mm), simple, student-friendly operation.
- Illumination: Bright LED lamp for cool, even lighting and long service life.
- Stage: 110 x 110mm square stage with slide clips; optional mechanical stage available.
- Focusing: Dual focusing knobs for smooth rack-and-pinion adjustment (15mm range).
- Nosepiece: Triple revolving nosepiece with positive click stops for rapid magnification changes.
- Screen: 150mm diameter glass dome screen rotates 360° for comfortable viewing above the instrument.
- Objectives: Achromatic 4x, 10x, 40x for basic to intermediate magnification needs.
- Packaging: Secure Thermocol/Styrofoam inner and cardboard outer for safe delivery.

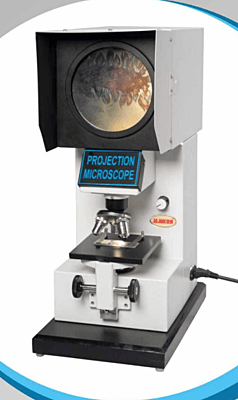

KW-500 Projection Microscope (Wall/Surface Projection Type)
- Illumination: 12V 100W halogen lamp delivers brilliant field for high-resolution projection.
- Stage: 110 x 110mm square stage with optional mechanical stage, fits standard glass slides.
- Focusing: Dual knobs for precise, smooth focusing (15mm rack and pinion range).
- Nosepiece: Triple revolving nosepiece with click stops for efficient magnification transitions.
- Screen & Wall Projection: 160mm true ground glass screen (hinged)—use upright or rotated away for direct wall/surface projection in a darkened environment.
- Objectives: Achromatic 5x, 10x, 20x for various levels of classroom viewing.
- Packaging: Thermocol/Styrofoam inner and cardboard outer for transport protection.
Applications
- Group teaching and educational demonstrations
- School and college science laboratories
- Workshops, exhibitions, science fairs
- Realtime projection for student engagement
- Instructor demonstrations and practical training
Advantages
- Allows several students to observe details simultaneously
- Project on built-in screen or wall for larger group visibility
- Reliable and easy to use—suitable for all skill levels
- Achromatic objectives ensure clear, distortion-free images
- Durable build, ergonomic controls, and safe for student use
