Alamicro Professional Laboratory Microscope Series

The Alamicro Professional Laboratory Microscope Series represents India's most comprehensive range of clinical and pathological microscopy instruments. Manufactured since 1978, this collection spans six professional variants designed to meet every laboratory requirement—from cost-conscious diagnostic centers to premium research institutions demanding the highest optical performance.

Product Overview

Alamicro's commitment to optical excellence and mechanical precision has made them India's leading laboratory microscope manufacturer. This complete series addresses the diverse needs of medical diagnostics, pathological analysis, clinical research, and educational training—offering solutions that balance performance, ergonomics, and value across monocular and binocular configurations.

Why Choose Alamicro Laboratory Microscopes

• Proven Track Record: Over 45 years of manufacturing excellence serving India's medical institutions
• ISI Certified Quality: Compliance with Indian Standards for laboratory equipment
• Complete Range: Six variants cover every budget and application requirement
• Professional Optics: Achromatic to semi-plan objectives with hard coatings deliver clinical-grade resolution
• Modern Illumination: LED lighting systems provide consistent, heat-free specimen illumination
• Robust Construction: Heavy-duty die-cast bodies withstand demanding laboratory environments
• Service Network: Reliable after-sales support and spare parts availability nationwide

Product Variants

MONOCULAR SERIES - Cost-Effective Professional Performance

BM-5 - Medical Microscope (Clinical Grade)

ISI marked medical microscope with 90° inclinable heavy-duty monocular body designed specifically for clinical laboratories and medical education. Features 160mm mechanical tube length with triple nosepiece, double lens bright field Abbe condenser (NA 1.25), fixed co-axial horizontal graduated mechanical stage (120x120mm), separate coarse and fine focusing, and piano-concave mirror illumination. Includes adjustable down stopper to prevent accidental slide damage. Perfect for pathology departments, diagnostic centers, and teaching hospitals requiring reliable clinical-grade performance.

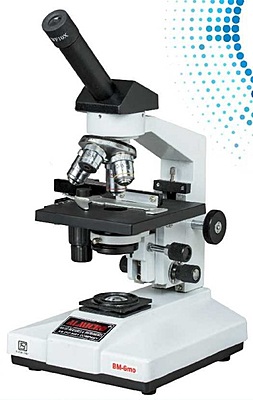

BM-6mo - Pathological Monocular Microscope (Standard)

Professional entry-level monocular featuring one 10x wide-field eyepiece, four achromatic objectives (4x, 10x, 40x SL, 100x SL oil immersion), horizontal mechanical stage (120x125mm), Abbe condenser with iris diaphragm, and LED lighting with intensity control. Confirmed to IS: 8275:1976 standards. Ideal for routine diagnostic pathology work in high-volume laboratories seeking cost efficiency without sacrificing optical quality.

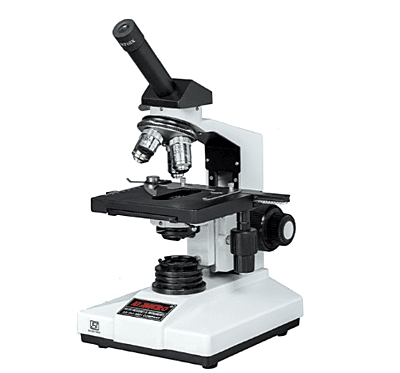

BM-8mo - Pathological Monocular Microscope (Enhanced)

Advanced monocular model with one 10x wide-field eyepiece, four semi-plan achromatic objectives (4x, 10x, 40x SL, 100x SL oil immersion) offering superior flat-field performance. Features LED lighting with on/off switch and intensity regulator, 360° eyepiece rotation capability, co-axial focusing, and piano-concave mirror attachment option. Best choice for laboratories upgrading from basic models while maintaining monocular configuration benefits.

BINOCULAR SERIES - Enhanced Ergonomics & Depth Perception

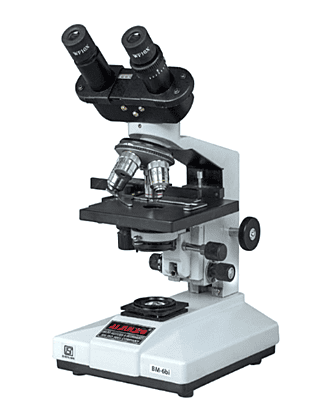

BM-6bi - Pathological Binocular Microscope (Standard)

Professional binocular entry-level model featuring two 10x wide-field eyepieces for reduced eye strain and enhanced depth perception. Equipped with four achromatic objectives (4x, 10x, 40x SL, 100x SL oil immersion), quintuple revolving nosepiece, horizontal mechanical stage (120x125mm), Abbe condenser with iris diaphragm, and LED lighting system. Confirmed to IS: 8275:1976 standards. Perfect for pathology laboratories requiring comfortable extended viewing sessions at an affordable price point.

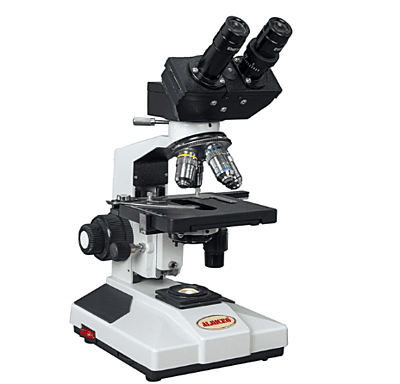

BM-8bi - Pathological Binocular Microscope (Enhanced)

Mid-range professional binocular with two 10x wide-field eyepieces and four semi-plan achromatic objectives (4x, 10x, 40x SL, 100x SL oil immersion) delivering improved flat-field correction. Features 360° eyepiece rotation for optimal ergonomic positioning, LED illumination with adjustable intensity and on/off switch, co-axial focusing with coarse and fine controls, and optional piano-concave mirror attachment. Popular choice for diagnostic centers and hospital laboratories balancing performance and investment.

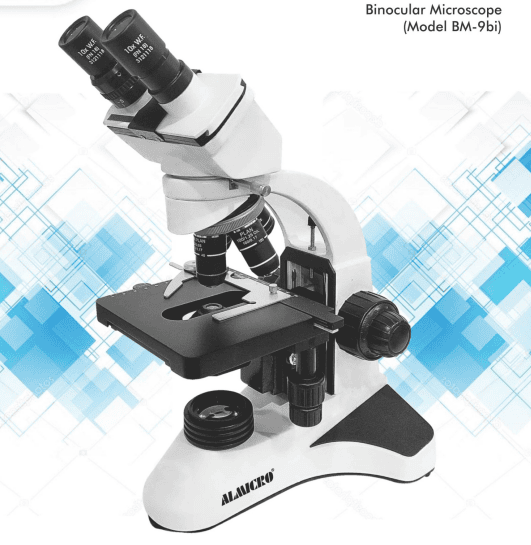

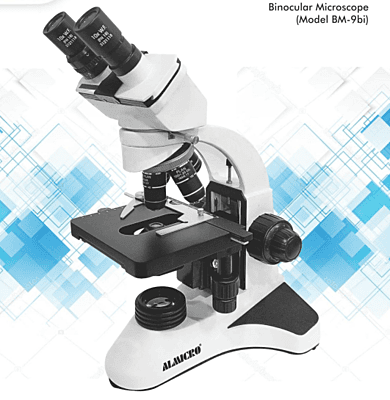

BM-9bi - Binocular Microscope (Premium Professional)

The flagship model representing the pinnacle of Alamicro's microscopy engineering. Features ergonomic binocular head with hard-coated prisms, extra wide-field 10x eyepieces (18mm paired) with hard coating, four semi-plan achromatic objectives (4x, 10x, 40x, 100x oil) with superior resolution. Equipped with quadruple revolving ball-bearing nosepiece for precision indexing, double-layered mechanical stage with low-positioned co-axial knobs, co-axial focusing system, bright LED with solid-state power supply, and sturdy C-shaped aluminum alloy die-cast stand. Designed for high-volume diagnostic pathology, research institutions, and teaching hospitals demanding exceptional optical performance and durability.

Complete Specifications Comparison

Technology & Features Breakdown

Optical Systems

Achromatic Objectives (BM-5, BM-6mo, BM-6bi)

• Color-corrected optics minimize chromatic aberration
• Suitable for routine diagnostic and educational applications
• Cost-effective solution for standard pathology work
• Proven reliability for blood smears and tissue sections

Semi-Plan Achromatic Objectives (BM-8mo, BM-8bi, BM-9bi)

• Superior flat-field correction across 80% of field of view
• Enhanced resolution and clarity for detailed specimen analysis
• Reduced curvature of field distortion at image periphery
• Professional-grade performance for critical diagnostic work

Hard-Coated Optics (BM-9bi)

• Advanced multi-layer coating increases light transmission
• Enhanced contrast and brightness
• Scratch-resistant surfaces ensure long-term optical quality
• Premium optics for research and high-volume diagnostics

Illumination Technology

Piano-Concave Mirror System (BM-5)

• Natural daylight reflection for classroom and field use
• Zero electricity consumption
• Adjustable angle for optimal specimen illumination
• Suitable for environments with reliable natural lighting

LED Illumination Systems (BM-6mo, BM-8mo, BM-6bi, BM-8bi, BM-9bi)

• Consistent, heat-free light source prevents specimen damage
• Adjustable intensity control for contrast optimization
• Long-lasting LED lifespan reduces maintenance costs
• Solid-state power supply ensures stable operation
• Energy-efficient operation suitable for continuous laboratory use

Mechanical Systems

Stage Systems

• Fixed Co-axial Graduated (BM-5): Horizontal mechanical stage (120x120mm) with graduated measurements for precise specimen positioning
• Horizontal Mechanical (Most Models): Professional 120x125mm stages with smooth X-Y movement via control knobs
• Double Layered (BM-9bi): Premium construction with low-positioned co-axial knobs for enhanced ergonomics and stability

Focusing Mechanisms

• Separate Controls (BM-5): Independent coarse and fine adjustment mechanisms
• Co-axial Controls (All Others): Professional coaxial focus knobs enable one-handed operation with separate coarse and fine control rings
• Ball Bearing Nosepiece (BM-9bi): Precision ball bearing mechanism ensures smooth objective switching with positive click-stop indexing

Condenser Systems

Abbe Condenser with Iris Diaphragm

• Professional light concentration system across all models
• Numerical aperture 1.25 (BM-5) optimized for clinical work
• Iris diaphragm provides continuously variable aperture control
• Swing-out filter holder (select models) for contrast enhancement techniques
• Rack and pinion vertical adjustment for precise focal height

Ergonomic Features

Monocular Configuration Benefits

• Compact footprint ideal for space-constrained laboratories
• Lower cost of ownership with simpler mechanical construction
• Faster training for new laboratory technicians
• Suitable for routine diagnostic work with shorter examination times

Binocular Configuration Advantages

• Enhanced depth perception through stereoscopic 3D vision
• Dramatically reduced eye fatigue during extended viewing sessions
• Both eyes share workload, reducing strain and improving comfort
• 360° eyepiece rotation (select models) enables optimal ergonomic positioning
• Professional appearance enhances credibility in clinical settings

Applications by Variant

BM-5 Medical Microscope Applications

• Clinical pathology laboratories in hospitals and diagnostic centers
• Medical college teaching and demonstration
• Blood smear examination and hematology
• Routine specimen analysis in healthcare settings
• Pharmaceutical quality control laboratories
• Veterinary clinics and animal hospitals

BM-6mo & BM-8mo Monocular Applications

• High-volume diagnostic centers processing routine specimens
• Hospital pathology departments with budget constraints
• Clinical laboratories performing standard diagnostic testing
• Medical training institutions teaching microscopy basics
• Veterinary pathology and parasitology laboratories
• Food safety and quality control testing

BM-6bi & BM-8bi Binocular Applications

• Pathology laboratories with extended specimen examination requirements
• Histopathology departments processing tissue sections
• Cytology laboratories analyzing Pap smears and fine needle aspirates
• Research institutions conducting detailed biological studies
• Teaching hospitals training pathology residents
• Forensic science laboratories analyzing trace evidence

BM-9bi Premium Binocular Applications

• Advanced diagnostic pathology centers requiring highest optical quality
• Reference laboratories performing complex diagnostic procedures
• Medical research institutions conducting cutting-edge studies
• Tertiary care hospital pathology departments
• Specialized diagnostic centers (oncology, hematology-oncology)
• Quality control laboratories in pharmaceutical manufacturing
• Professional training institutions for advanced pathology education

Microscopy Techniques Supported

• Brightfield Microscopy: Standard transmitted light technique for stained specimens (all models)
• Oil Immersion Microscopy: 100x objectives enable high-resolution bacterial and cellular examination
• Contrast Enhancement: Iris diaphragm control and filter options improve specimen visibility
• Clinical Histopathology: Tissue section examination with H&E and special stains
• Cytology: Cell morphology analysis from various body fluids and aspirates
• Hematology: Blood smear examination for differential counts and morphology
• Microbiology: Bacterial identification and culture examination
• Parasitology: Parasite identification in clinical specimens
• Quality Control: Pharmaceutical and food product contamination detection

Variant Selection Guide

Choose BM-5 Medical Microscope If:

• You need ISI certified medical-grade instrument for clinical laboratories
• Natural light illumination is preferred or required
• 90° inclinable body is essential for ergonomic viewing
• Budget allows for clinical-grade without LED illumination
• Medical education and teaching demonstrations are primary use

Choose BM-6mo Monocular If:

• You require the most cost-effective professional microscope
• High-volume routine diagnostic work is primary application
• LED illumination is essential for consistent lighting
• Space constraints favor compact monocular design
• Budget is primary consideration without sacrificing quality

Choose BM-8mo Enhanced Monocular If:

• You want upgraded semi-plan optics with flat-field correction
• 360° eyepiece rotation improves ergonomics for your workspace
• Monocular benefits are preferred (cost, space, simplicity)
• Professional diagnostic quality is needed at mid-range investment
• Optical performance upgrade from BM-6mo justifies modest price increase

Choose BM-6bi Binocular If:

• You need binocular comfort for extended viewing sessions
• Reduced eye fatigue is critical for laboratory productivity
• Budget allows entry into binocular microscopy
• Professional appearance enhances laboratory credibility
• Cost-effective binocular performance is priority

Choose BM-8bi Enhanced Binocular If:

• You want semi-plan optics with binocular ergonomics
• 360° eyepiece rotation is essential for optimal positioning
• Medium to high volume diagnostic work requires comfort and quality
• Investment in professional-grade equipment is justified
• Balance of performance and cost is optimal in this range

Choose BM-9bi Premium Binocular If:

• You demand the absolute best optical performance Alamicro offers
• Hard-coated optics and premium construction are required
• Ball-bearing nosepiece precision is essential for workflow
• High-volume advanced diagnostic work demands durability
• Research applications require superior optical quality
• Long-term investment in flagship model is cost-justified

What's Included

All Models Include

• Microscope body with specified optical configuration (monocular or binocular)
• Eyepiece(s) as per variant specifications
• Complete set of achromatic or semi-plan achromatic objectives
• Revolving nosepiece (triple, quadruple, or quintuple depending on model)
• Mechanical stage with specimen clips
• Abbe condenser with iris diaphragm
• Illumination system (mirror or LED as specified)
• Power supply (for LED models)
• Dust cover
• Immersion oil sample
• User manual and care instructions
• Warranty documentation
• Protective packaging (Inner Thermocol/Styrofoam + Outer Cardboard Box)

Maintenance & Care Guidelines

Optical Care

• Clean lenses only with approved lens paper and cleaning solution
• Never use tissue paper, cloth, or abrasive materials on optical surfaces
• Remove immersion oil immediately after use with lens cleaner
• Store in dust-free environment to prevent fungal growth on optics
• Use dust cover when microscope is not in operation

Mechanical Maintenance

• Keep focusing mechanisms clean and properly lubricated
• Avoid forcing controls if resistance is encountered
• Clean stage regularly to prevent specimen debris accumulation
• Ensure stable placement on vibration-free work surface
• Check electrical connections periodically for LED models

Environmental Considerations

• Maintain laboratory temperature between 18-25°C for optimal performance
• Relative humidity should be 40-70% to prevent fungal growth
• Avoid direct sunlight exposure which can damage optics
• Keep away from chemical fumes that may corrode components
• Store in climate-controlled environment when not in regular use

Technical Support & Service

Alamicro provides comprehensive after-sales support through authorized service centers across India. Spare parts availability, calibration services, and technical consultation ensure your investment remains productive throughout its operational lifetime.

Warranty Information

• Comprehensive warranty coverage on mechanical and optical components
• Extended warranty options available for institutional purchases
• Authorized service center network for maintenance and repairs
• Genuine spare parts and accessories availability

Why Alamicro Since 1978

For over 45 years, Alamicro has been the trusted name in laboratory microscopy across India. Their dedication to optical excellence, mechanical precision, and customer service has made them the preferred supplier to:

• Government Hospitals: Reliable instruments meeting tender specifications and budget requirements
• Private Diagnostic Chains: Consistent quality across multiple laboratory locations
• Medical Colleges: Durable educational instruments withstanding heavy student use
• Research Institutions: Professional-grade performance for scientific investigation
• Pharmaceutical Companies: Quality control instruments meeting regulatory standards

Quality Certifications

• ISI Mark: Indian Standards Institution certification (select models)
• IS: 8275:1976: Compliance with Indian microscope standards
• MONO/BINO: Configuration certification (monocular/binocular)
• IL: Illumination system certification
• ABBE: Abbe condenser system certification
• 230V: Electrical safety certification for Indian power standards
• 2 DAY: Fast delivery service available

Additional Information

Power Requirements (LED Models)

• Input Voltage: 220-230V AC
• Frequency: 50 Hz (Indian standard)
• Power Consumption: Low (LED technology)
• Power Supply: Solid-state (premium models) or standard adapter

Physical Specifications (Approximate)

• Monocular Models: Compact laboratory footprint
• Binocular Models: Professional laboratory footprint
• Weight: Heavy-duty die-cast construction ensures stability
• Working Distance: Optimized for standard laboratory applications

Compliance & Safety

• Meets Indian medical device regulations
• Electrical safety standards compliance (LED models)
• Optical safety - no harmful radiation emission
• RoHS compliant materials (environmental safety)
