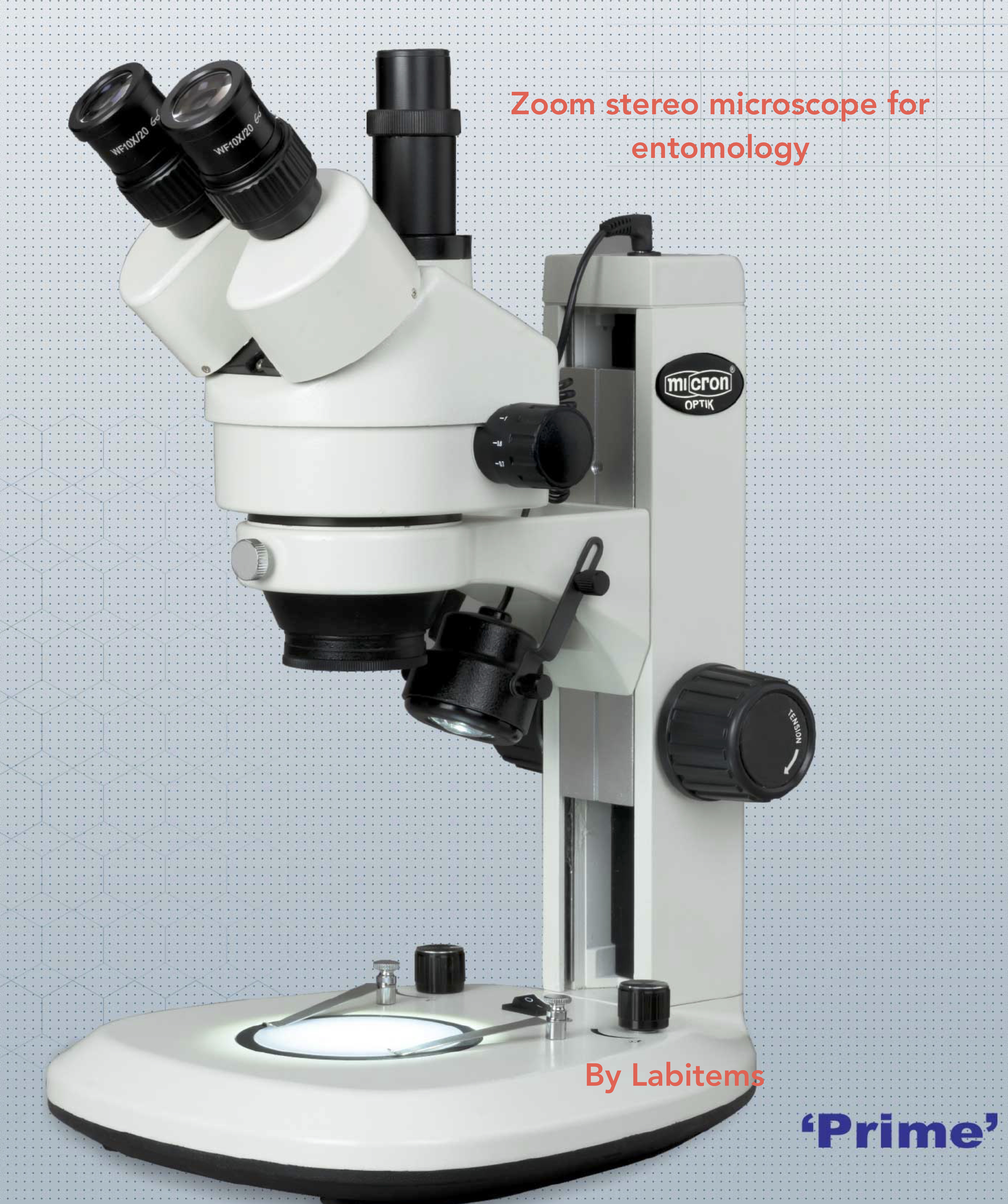

Name: TRINOCULAR STEREO ZOOM MICROSCOPE LSZM1
SKU: LSZM1
Price: 48580.0 INR
Availability: InStock
Rating: 5.0 (1 reviews)

Laboratory Instruments Dissection Microscopes TRINOCULAR STEREO ZOOM MICROSCOPE LSZM1

Trinocular Stereo Microscope with zoom Ratio 6.4 : 1, 7x to 45x magnifications and working distance 100 mm (This is the distance from the lense to the base. Illumination - Transmitted and incident 3W LED illuminations with built-in 100-240V power supply. Both illuminators can be used simultaneously and the light intensities can be adjusted separately Optional (not included in the order) Optional auxiliary lens 0.5X, 0.75X, 1.5X 2.0X. USB CAMERAS OR CCD cameras. For other microscopic things please refer here

Non-returnable

₹48,580.00

Customize

Choose Quantity :

View Details

Product Details

Introduction
Powerful imaging capabilities at an economical price with excellent specifications and ergonomics. Featuring a zoom magnification of 7x to 45x and a long working distance of 100mm is well suited for biology, medicine, scientific research, modern electronics industry and other industrial uses. Perform dissections, observe live objects, record the data of species, identify species, taxonomy, work for metallurgy, use it for phone repair, or chip check or manufacturing, etc. Uses are endless and depends on the customer intended to purchase. Fully coated prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high. These instruments are perfect for zoological studies and insectaries.
The provision has been given to record pictures of the samples using trinocular head. You may wish to use digital camera/phone camera available with you we can't guarantee the quality of the pics or may want to order an additional camera purchase.

Eye Piece	Pair WF 10x20 mm eye pieces.
Head	Trinocular heads with 45o inclined tubes.
Head	Both eye pieces with t 5 mm diopter adjustments.
Head	Inter pupillary distance adjustable between 55 mm to 15 mm.
Objective part	Ratio 6.4 : 1. 7x 10 45x magnifications.
Objective part	Field of view from 33 mm 10 4.9 mm.
Objective part	Working distance 100 mm.
Stand	Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps.
Stand	Alloy metal cast, hardened off-white painted.
Focusing Adjustment	Coarse adjustment, moving on Ball Bearing Guide ways
Illumination	Transmitted and incident 3W LED illuminations with built-in 100-240V power supply.
Illumination	Both illuminators can be used simultaneously and the light intensities can be adjusted separately.
Packing	Supplied with power cord, dust cover, use manual AlI packed in a polystyrene box.
Optional	Optional auxiliary lens 0.5X, 0.75X. 1.5X 2.0X.
Optional	USB CAMERAS OR CCD cameras.
