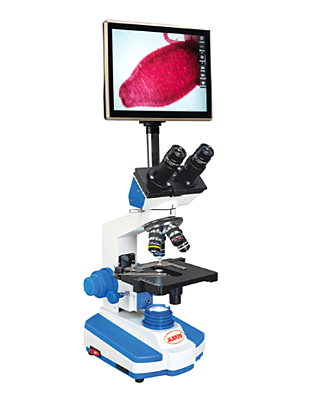

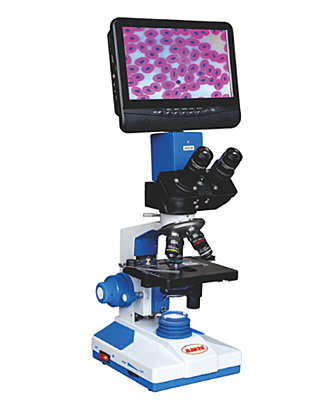

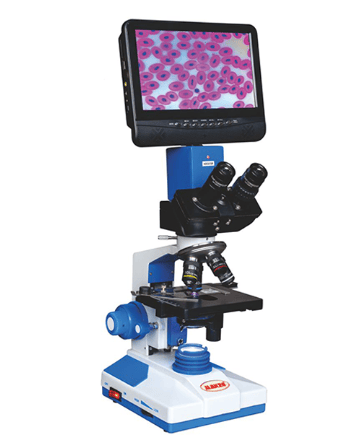

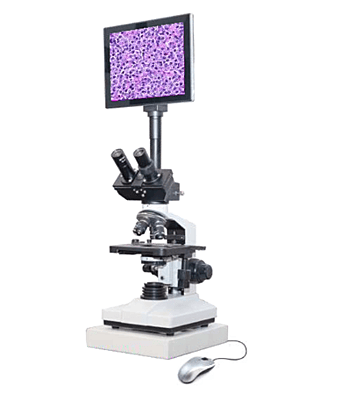

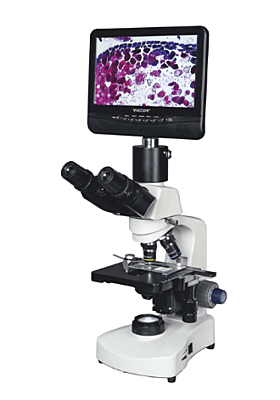

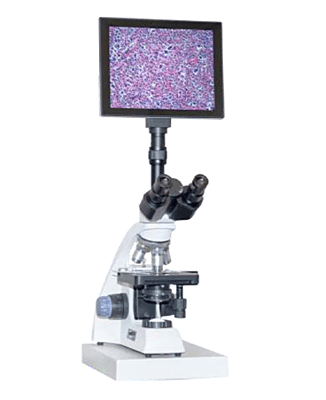

ALMICRO DIGITAL VIDEO MICROSCOPE SERIES

Advanced Professional Imaging Solutions



OVERVIEW & CONCEPT

·         The Almicro Digital Video Microscope (DVM) Series revolutionizes microscopy by integrating precision optical systems with state-of-the-art digital imaging. These instruments deliver:



·         Real-time visual observation



·         High-resolution digital documentation



·         Software-based analysis and reporting



Key Concept:

By embedding digital displays and high-resolution sensors, Almicro DVM models eliminate the need for separate camera systems and offer seamless data capture, sharing, and institutional connectivity.



PRODUCT VARIANTS

DVM-01 — 7" LED Display (Entry Research)

·         Trinocular, 7" TFT LED screen with remote control



·         Objectives: Achromatic 4x, 10x, 40x, 100x (oil)



·         Display: 3MP CMOS, real-time view and image capture



·         Applications: Research, teaching labs, group demos



·         Key Advantages:



·         Standalone display (no PC required)



·         Convenient remote adjustment



Professional optical performance



DVM-01 Plus — 7" LED + Battery Backup

·         Binocular, battery backup for uninterrupted use



·         Objectives: Plan-achromatic 4x–100x (oil)



·         Display: 3MP CMOS, ultra-precision fine focusing



·         Applications: Power-unstable environments, advanced teaching/research



Key Advantages:



Ergonomic configuration with battery backup



Superior optics, ultra-fine focus (0.0001mm)



DVM-02 — 9.7" Android Tablet + HDMI

·         Trinocular, Android touchscreen, HDMI output



·         Objectives: Achromatic 4x–100x (oil)



·         Sensor: 5MP CMOS



·         Key Features:



·         Wireless/USB/HDMI connectivity



·         Portable, expandable storage (SD card support)



·         Applications: Mobile teaching, cloud-integrated documentation



DVM-02 Plus — 9.7" Android + Imaging Software

·         Built-in measurement & annotation software



·         Key Features:



·         Particle analysis, image annotation



·         Recording capability, HDMI projection



·         Applications: Quantitative research, documentation, analysis



·         Key Advantages: Professional-grade onboard analysis tools—no external software needed



DVM-03 — 8" Windows Tablet + USB 2.0

·         Trinocular, 8" Windows tablet (1024x768 IPS)



·         Sensor: 5MP CMOS, direct PC integration



·         Key Features:



·         USB mouse support, familiar Windows interface



·         Data transfer with institutional IT compatibility



DVM-03 Plus — 8" Windows Tablet + Comprehensive Software

·         Professional software suite: measurement, annotation, geometry, video



·         Battery backup for operational continuity



·         Applications: Research labs, diagnostics, QA, quantitative measurements



DVM-04 Ultra — 11" Windows Tablet + Advanced Software

·         Flagship model: 11" Full HD tablet, 16MP CMOS, advanced software tools



·         Ultra-advanced features:



·         1080p video recording at 30fps



·         Complete suite for marking, annotation, measurement, geometry, batch processing



·         Applications: Frontier research, publication-quality imaging, multi-observer demonstrations



UNIVERSAL FEATURES (ALL DVM MODELS)

·         Optical: Plan-achromatic or achromatic objectives, precision focusing, wide-field eyepieces, oil immersion capability



·         Digital: Real-time display, integrated sensor, instant capture, built-in or tablet-based analysis software



·         Mechanical: Co-axial coarse & fine focus, smooth double-layer stage with precision movement, ball bearings, rack stops



·         Illumination: Adjustable halogen or LED, energy-efficient, some models with battery backup



·         Connectivity: USB/HDMI/SD options, direct PC/tablet integration, wireless (Android), group and institutional sharing



MODEL & DISPLAY PROGRESSION



Model	Display	OS	Key Features	Use Case
DVM-01	7" LED	—	Remote display, compact	Entry research, teaching
DVM-01 Plus	7" LED w/battery	—	Battery backup, binocular	Reliable research/teaching
DVM-02	9.7" Android	Android	Large touch, HDMI, SD card	Mobile, teaching, diagnostics
DVM-02 Plus	9.7" Android	Android SW	Analysis, measurements	Portable labs, analysis
DVM-03	8" Windows	Windows	USB to PC, IT integration	Professional diagnostics
DVM-03 Plus	8" Windows	Windows SW	Comprehensive software suite	Advanced research
DVM-04 Ultra	11" Windows	Windows Pro	16MP, 1080p, advanced suite	Frontier research



APPLICATIONS BY INSTITUTION TYPE

·         Medical Colleges: Digital documentation, student capture, group teaching



·         Dental Schools: Histology, diagnostics, recorded practicals



·         Diagnostic Centers: Reporting, verification, QA, archival



·         Research Institutions: Advanced imaging, analysis, documentation



·         Pharma/QA: Particle analysis, compliance, archiving



·         Teaching Hospitals: Group demonstrations, case discussions, archives



WHAT'S INCLUDED

All DVM Models include:



·         Microscope body, trinocular/binocular head



·         Full set of objectives & paired eyepieces



·         Quadruple revolving nosepiece



·         Mechanical stage, professional condenser



·         Halogen/LED illumination



·         Integrated display (or tablet)



·         High-resolution CMOS camera



·         All requisite cables, adapters, software (where applicable)



·         Immersion oil, dust cover, manual, warranty, and packaging



·         Model-specific additions:



·         Tablet (Android or Windows), measurement/analysis software



·         HDMI/USB/SD/Bluetooth accessories (as per model)



·         Battery backup on select models



MAINTENANCE & CARE

·         Protect display/tablet hardware from shocks/moisture; store tablets in cases when not used



·         Wipe optics with approved solution and lens paper only; clean oil objectives immediately post-use



·         Regularly update digital software for best performance and security



·         Lubricate mechanical and focusing parts periodically



·         Store in dust-free, vibration-free, temperature-controlled environments
