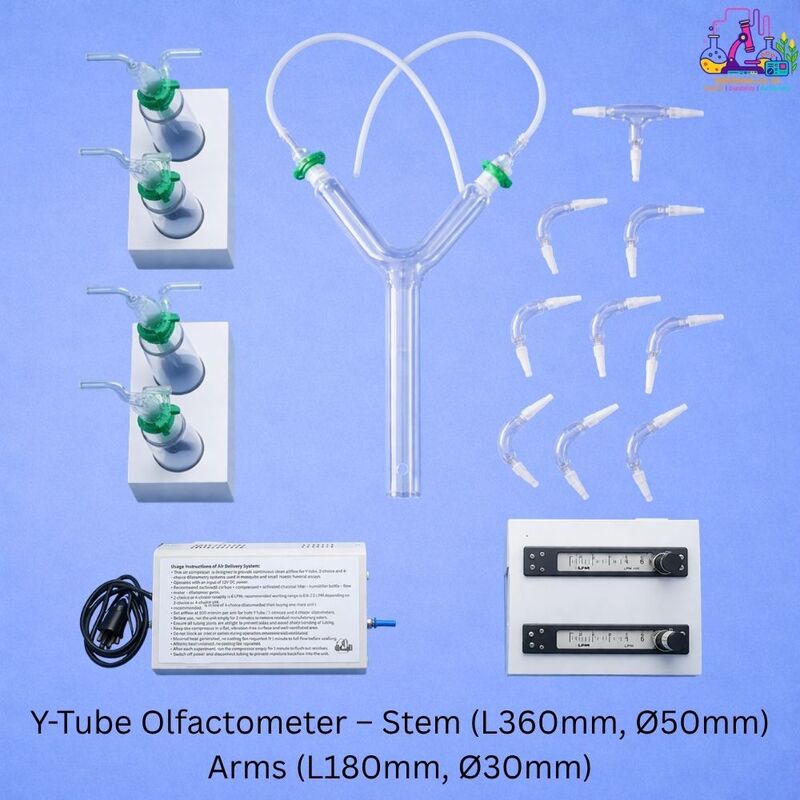

Y-Tube Olfactometer – Stem (L360, Ø50) Arm (L180, Ø30mm)
The Y-Tube Olfactometer – Stem (L360mm, Ø50mm) | Arms (L180mm, Ø30mm) is a precision glass apparatus designed for insect behavioral and olfactory studies. Here, ensuring clear specification of airflow path dimensions for accurate odor-choice assays, repellency testing, and attraction studies.
Dimension Explanation Table
| Symbol / Term | Meaning | Value mm(cm) | Description |
|---|---|---|---|
| L (Stem) | Length of main tube | 360 mm (36cm) | Distance from base inlet to junction where arms split |
| Ø (Stem) | Diameter of main tube | 50 mm (5cm) | Inner diameter allowing airflow and insect movement |
| L (Arms) | Length of each arm | 180 mm (18cm) | Distance from junction to each arm outlet |
| Ø (Arms) | Diameter of each arm | 30 mm (3cm) | Inner diameter of arms for odor stream passage |
Customize
Product Details
The Y-Tube Olfactometer – Stem (L360mm, Ø50mm) | Arms (L180mm, Ø30mm) is a high-precision laboratory instrument developed for entomology research and insect behavioral analysis. This Y-shaped glass apparatus allows insects to choose between two distinct odor streams, enabling researchers to study attraction, repellency, and olfactory preferences with high accuracy.
Manufactured from high-clarity, chemically resistant borosilicate glass, the olfactometer ensures durability and contamination-free experimentation. The 360 mm stem length with a 50 mm diameter provides a stable pathway for controlled airflow, while the two 180 mm arms (30 mm diameter) ensure balanced and uniform odor distribution.
The design is optimized to maintain laminar airflow and minimize turbulence, which is essential for obtaining reliable and reproducible behavioral responses. Its transparent construction allows clear observation of insect movement throughout the experiment.

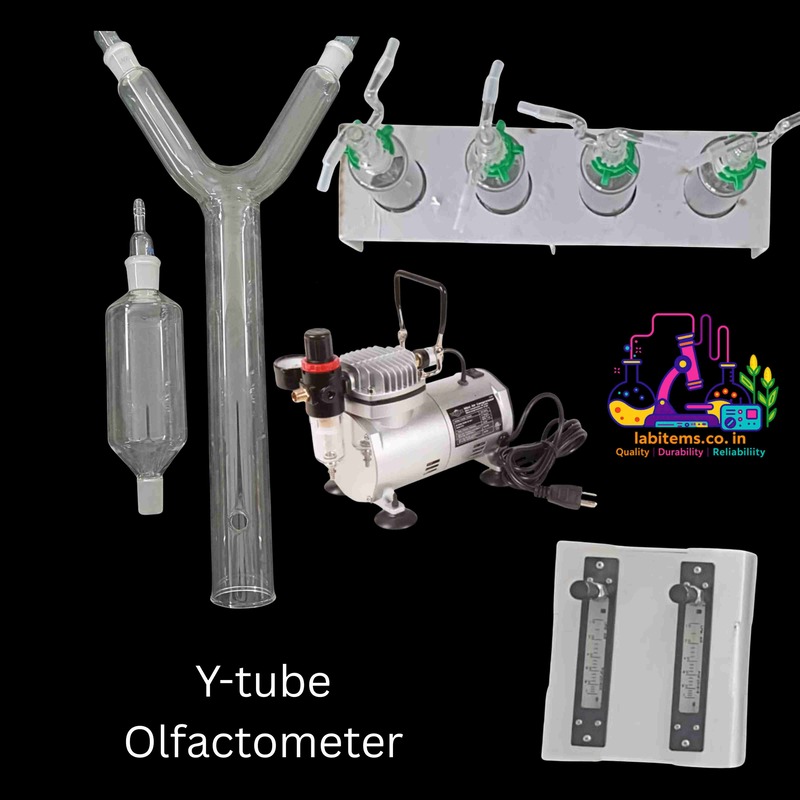

This olfactometer is ideal for integration with air compressors, airflow controllers, charcoal filters, and humidification systems, forming a complete olfactory testing setup.
Widely used in:
- Mosquito repellency and attractant evaluation
- Insect behavioral and olfactory response studies
- Vector-host interaction research
- Pest management and agricultural research
- Entomology and environmental laboratories
The ergonomic and modular design ensures easy cleaning, setup, and compatibility with laboratory airflow systems, making it a reliable tool for controlled olfactory experiments.
Key Features
- Precision Y-tube design for odor-choice assays
- 360 mm stem (Ø50 mm) for stable airflow input
- 180 mm arms (Ø30 mm) for balanced odor distribution
- Made from high-quality borosilicate glass
- Ensures laminar airflow and minimal turbulence
- Transparent for clear observation of insect behavior
- Compatible with complete olfactometer setups
- Easy to clean and maintain
Specifications
- Stem Diameter50mm
- Stem Height360mm
- Arm Diameter30mm
- Arm Height180mm
- Arm Angle45°
- Connector Diameter6mm
- ConnectorsPTFE Connector
- TubingSilicon & Teflon
- Air FlowRegulated
- Air Flow Range0.1 LPM to 1 LPM
- Humidifier ChamberYES
- Charcoal ChamberYES
- Volatile JarsTwo Jars
