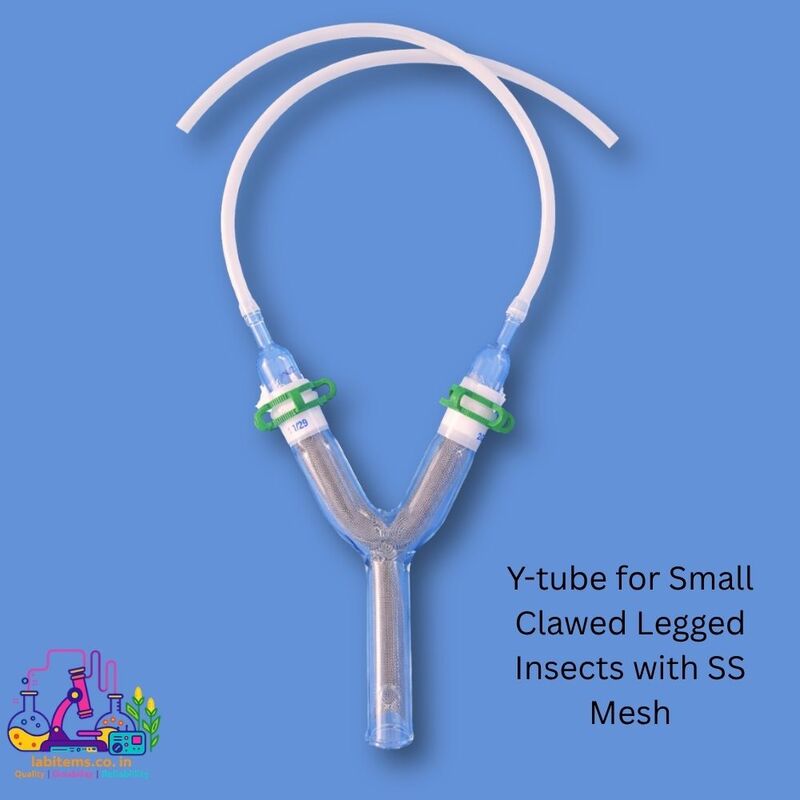

Y-tube for Small Clawed Legged Insects with SS Mesh
The Y-Tube for Small Insects is a precision glass apparatus designed for small insect behavioral and olfactory studies. It enables accurate odor-choice assays by allowing insects to choose between two airflow paths under controlled laboratory conditions.
Here, L denotes length and Ø denotes diameter, with all dimensions expressed in millimeters (mm).
Dimension Explanation Table
| Symbol / Term | Meaning | Description |
|---|---|---|
| L (Stem) | Length of main tube | Distance from inlet to junction |
| Ø (Stem) | Diameter of main tube | Inner diameter for airflow and insect movement |
| L (Arm) | Length of each arm | Distance from junction to outlet |
| Ø (Arm) | Diameter of each arm | Inner diameter of arms |
Variants
| Stem (L, Ø) mm | Arm (L, Ø) mm |
|---|---|
| (60, 10) | (50, 10) |
| (60, 15) | (70, 15) |
| (60, 20) | (60, 20) |
| (60, 8) | (110, 8) |
| (60, 10) | (110, 10) |
Customize
Product Details
The Y-Tube for Small Insects is a compact and highly precise laboratory instrument developed for entomological research and controlled olfactory experiments involving small insect species. Its design allows insects to move through a central stem and choose between two arms carrying different odor stimuli, making it ideal for studying attraction, repellency, and behavioral responses.
Manufactured from high-quality borosilicate glass, the Y-tube offers excellent clarity, durability, and resistance to chemical exposure. The smooth internal surface ensures uniform airflow with minimal turbulence, which is critical for obtaining reliable and reproducible experimental results.
The availability of multiple size variants allows researchers to select the most suitable configuration based on insect size, movement behavior, and airflow requirements. Smaller diameters are ideal for tiny insects and low airflow systems, while longer arms support extended observation and response tracking.
Its transparent construction enables clear visualization of insect movement, while the compact design ensures easy integration with air compressors, airflow controllers, charcoal filters, and humidifier chambers.
