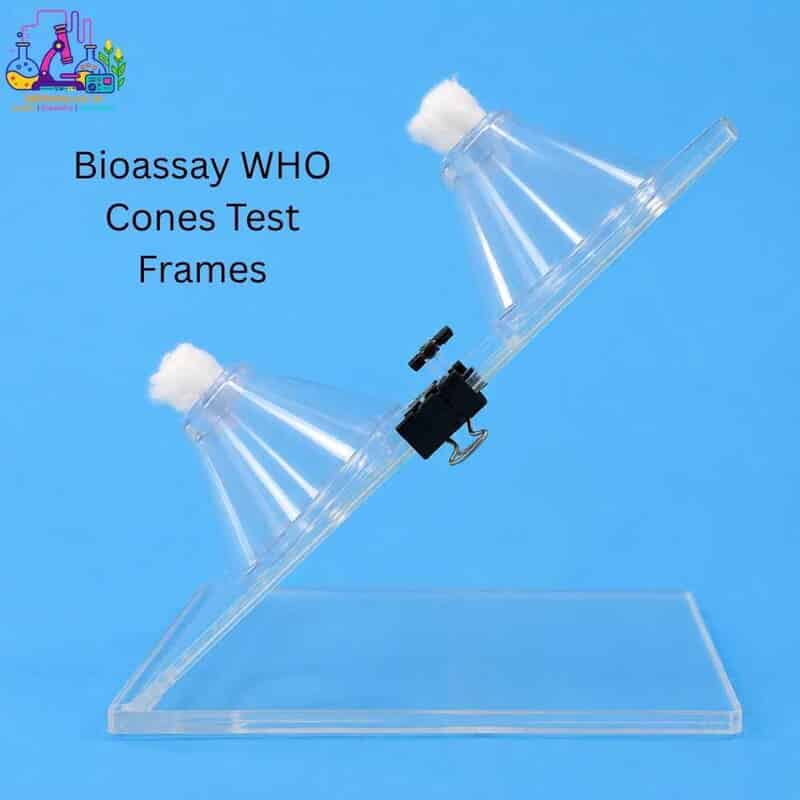

Bioassay WHO Cones Test Frames or Surfaces
Adjustable Testing Angles
| Angle | Function / Recommended Use |
|---|---|
| 0° (Horizontal) | Used for testing horizontal treated surfaces, such as table-mounted samples, treated fabrics laid flat, filter papers, and laboratory-prepared insecticide-treated materials. |
| 45° (Inclined) | Simulates inclined or sloping treated surfaces, providing a moderate landing angle commonly used in laboratory evaluations and comparative studies. |
| 60° (WHO Recommended) | Recommended for standard WHO cone bioassays on insecticide-treated nets (ITNs), long-lasting insecticidal nets (LLINs), and indoor residual spray (IRS) treated surfaces. This inclination encourages natural mosquito resting behavior while preventing prolonged contact with the cone surface. |
| 90° (Vertical) | Used for testing vertical treated surfaces, including sprayed walls, wall linings, curtains, wall-mounted treated materials, and Indoor Residual Spray (IRS) evaluations under field-like conditions. |
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | WHO Cone Test Frame |
| Application | WHO Cone Bioassay Studies |
| Frame Size | 60 × 60 cm (Each Frame) |
| Number of Frames | 2 |
| Replicates per Frame | 4 |
| Total Cone Positions | 8 |
| Cone Mounting Diameter | 11–12 cm |
| Test Area per Cone | 25 × 25 cm |
| Adjustable Angles | 0°, 45°, 60°, 90° |
| Frame Material | Solvent-Resistant Clear Acrylic |
| Assembly | Modular Design |
| Installation | Easy Assembly & Dismantling |
| Reusable | Yes |
Customize
Product Details
The WHO Cone Test Frame for Insecticide Bioassay Studies has been developed to support standardized mosquito exposure assays in accordance with WHO cone bioassay protocols. The system provides a stable and versatile platform for evaluating the efficacy of insecticide-treated materials used in vector control programs.

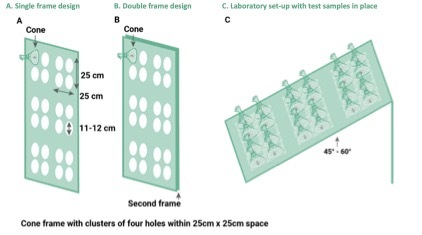

The testing system consists of two independent acrylic frames, each measuring 60 × 60 cm, with four cone mounting positions per frame, allowing a total of eight simultaneous test replicates. Each cone position is precisely located to provide uniform spacing and consistent mosquito exposure during testing.
The frame incorporates an adjustable angle mechanism, enabling researchers to position the test surface at 0°, 45°, 60°, or 90°, depending on the study requirements. This feature allows bioassays to be conducted on both horizontal and vertical treated surfaces while maintaining secure cone attachment throughout the experiment.
Each mounting position accommodates standard WHO mosquito cones, which are securely fixed using removable clips to prevent movement or damage to the test material. The frame is manufactured using high-quality solvent-resistant acrylic, making it suitable for repeated use with a wide range of insecticide formulations and cleaning agents.
Designed for quick assembly and easy handling, the modular construction allows convenient transportation, storage, and maintenance. The system is suitable for research laboratories, public health institutes, universities, vector control programs, and insecticide evaluation facilities.
Advantages of Adjustable Angle Testing
- Enables testing of both horizontal and vertical treated surfaces
- Supports WHO-recommended 60° cone bioassay orientation
- Simulates real-world mosquito landing and resting behavior
- Suitable for ITNs, LLINs, IRS-treated walls, treated fabrics, and other insecticide-treated materials
- Provides flexibility for laboratory research, quality control, and product evaluation
Package Contents
| Item | Quantity |
|---|---|
| WHO Cone Test Frame | 2 Frames |
| Cone Assay Plate | 1 Set |
| Base Plate | 1 Set |
| Adjustable Angle Plates | 1 Set |
| WHO Cones | 8 |
| WHO Mouth Aspirator | 1 |
Key Features
✓ Designed for WHO Cone Bioassay protocols
✓ Two modular frames with four replicates each
✓ Eight simultaneous cone assay positions
✓ Adjustable testing angles (0°, 45°, 60°, and 90°)
✓ Compatible with standard WHO mosquito cones
✓ Secure cone mounting system
✓ Solvent-resistant acrylic construction
✓ Easy assembly and dismantling
✓ Reusable laboratory-grade design
✓ Stable platform for insecticide efficacy testing
✓ Suitable for laboratory and field research
Applications
- WHO Cone Bioassay Testing
- Insecticide-Treated Net (ITN) Evaluation
- Long-Lasting Insecticidal Net (LLIN) Testing
- Indoor Residual Spray (IRS) Bioassays
- Insecticide Residual Efficacy Studies
- Vector Control Research
- Public Health Entomology
- Mosquito Susceptibility Studies
- Insecticide Product Development
- Academic and Research Laboratories
Advantages
- Supports up to eight simultaneous cone assays
- Adjustable test orientations for different study protocols
- Uniform mosquito exposure across all replicates
- Durable solvent-resistant construction
- Quick setup and easy cleaning
- Modular design for convenient storage and transport
- Suitable for repeated laboratory use
