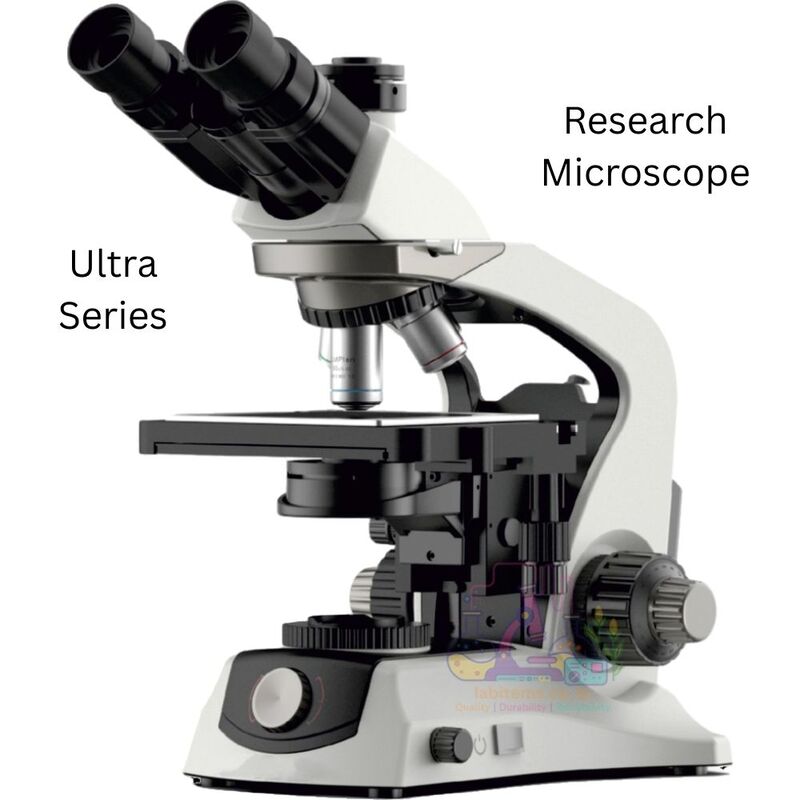

The VXL Research Microscope (Binocular & Trinocular Configuration) is a top-tier, infinity-corrected research microscope engineered for high-end laboratory analysis, advanced research, and precision imaging. Supplied as a single configurable system, it offers a binocular head for comfortable long-duration observation and a trinocular head for camera attachment, enabling seamless documentation, measurement, and digital microscopy.
Compared to the FXL Research Microscope series, the VXL series represents a significant upgrade with an infinity optical system, Köhler illumination, high-eye-point 23 mm eyepieces, and plan infinity achromatic objectives for superior contrast and edge-to-edge clarity. It also features a larger precision mechanical stage (220 × 148 mm), backward quintuple/quadruple nosepiece, and ultra-smooth coaxial focusing with 0.002 mm fine resolution, making it ideal for demanding research workflows.
Designed for maximum optical accuracy, stability, and expandability, the VXL microscope supports phase contrast, darkfield, polarization, and advanced condenser options, positioning it above both AXL and FXL series microscopes. It is the preferred choice for research institutes, advanced pathology labs, biotechnology labs, and universities requiring professional-grade imaging and analytical performance in one integrated platform.
