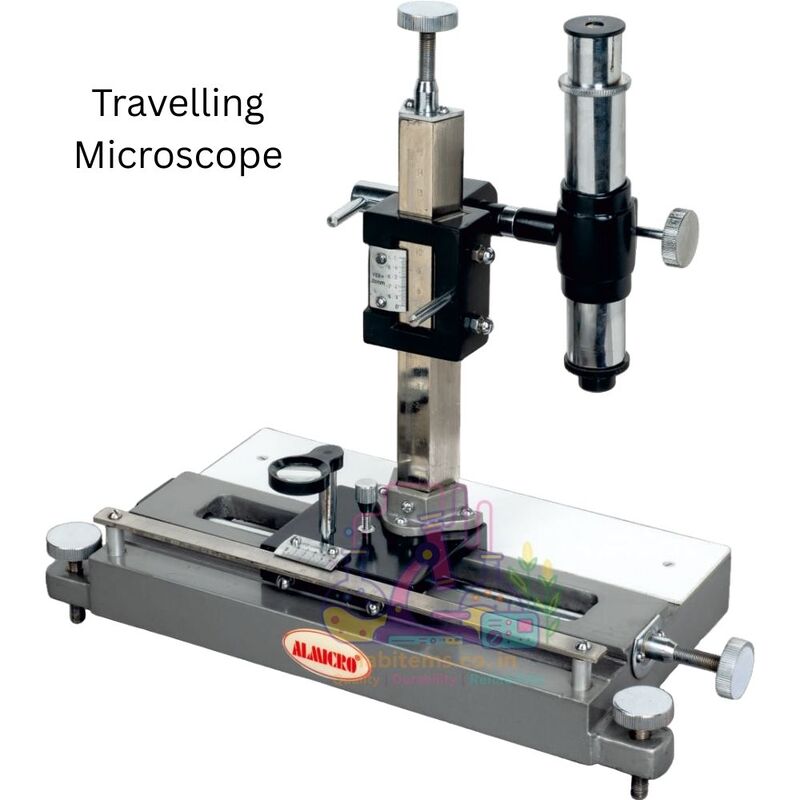

The ALMICRO VM-1 Travelling Microscope is a precision linear measurement instrument designed for physics laboratories, metrology training, and educational institutions. Unlike the KW-900 Tool Maker Microscope, which is optimized for industrial component inspection and angular measurement, the VM-1 is specifically intended for accurate displacement, length, and vernier-based measurements in laboratory experiments.

Built on a heavy cast-iron base with a machined vee-top surface, the VM-1 ensures excellent stability and smooth travel. The microscope travels horizontally up to 22 cm and vertically up to 15 cm using precision slides, while dual slow-motion knobs enable fine positioning for accurate readings. With vernier least count of 0.01 mm or 0.02 mm, the VM-1 delivers reliable measurement accuracy essential for optical and mechanical experiments.

A milky cenolite working surface allows clear placement of samples, scales, or objects, and the system is supplied with cross-hair eyepiece optics for precise alignment and reading.

How VM-1 differs from KW-900 Tool Maker Microscope

• VM-1: Designed for linear displacement & vernier measurements

• KW-900: Designed for industrial dimensional & angular inspection

• VM-1 uses manual travelling stages for experimental measurements

• KW-900 includes rotary stage & profile measurement features

• VM-1 is ideal for education & physics labs, not shop-floor QC

Key Highlights

• Heavy cast-iron base with machined vee-top

• Horizontal travel: 22 cm | Vertical travel: 15 cm

• Vernier accuracy: 0.01 mm / 0.02 mm

• Dual slow-motion fine movement knobs

• 10× eyepiece with cross-hair line

• Achromatic 2× objective (FL-50 mm)

• Supplied in protective wooden box

Ideal for:
Physics laboratories, engineering colleges, metrology training, optical experiments, displacement measurement studies, and academic demonstrations.
