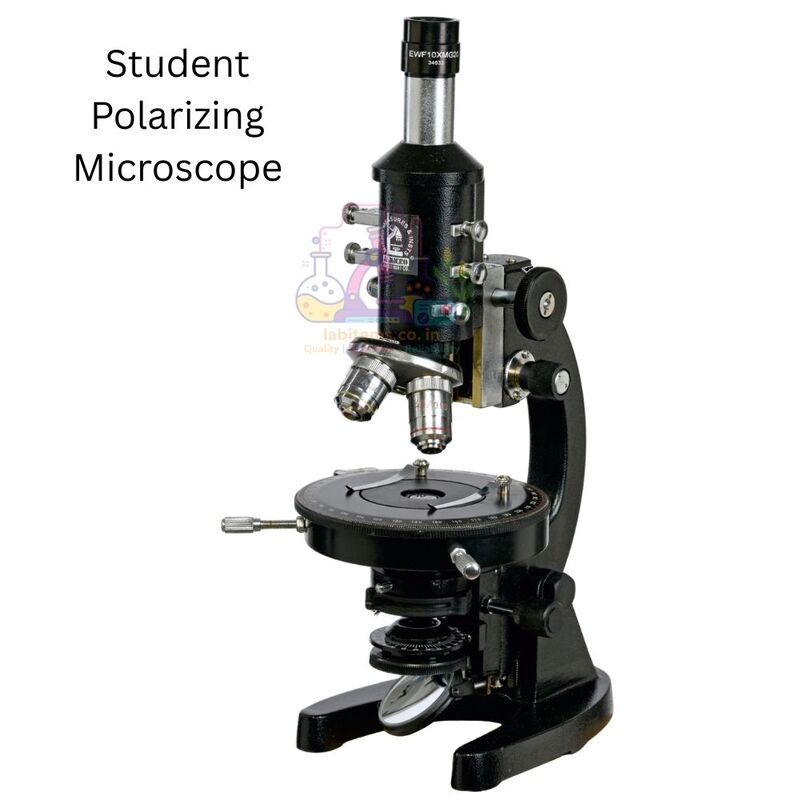

🔬 Student Polarizing Microscope PM-9
A compact and precise polarizing microscope designed for student training, mineralogical study, and basic materials analysis under polarized light.
⭐ Key Features & Benefits
| Feature | Benefit |
|---|
| Student-Focused Polarizing Design | Ideal for learning polarized light microscopy |
| Limb-Type Hinged Body (90° Inclination) | Comfortable viewing and easy handling |
| Bertrand Lens (In / Out) | Enables conoscopic and orthoscopic observation |
| Sliding Analyzer | Smooth switching between polarized and non-polarized modes |
| 1/4 Wave & Full Wave Compensators | Accurate optical retardation analysis |
| Rotatable Circular Stage (0–360°) | Precise angular measurement with vernier scale |
| Ball-Bearing Mounted Stage | Smooth, vibration-free rotation |
| Polarizer with Duly Graduated Scale | Accurate alignment of polarized light |
| Achromatic Polarizing Objectives | Clear, color-accurate specimen observation |
| Optional Sub-Stage LED Illumination | Flexible illumination upgrade |
| Robust Metal Construction | Long service life in teaching labs |
🔍 Technical Specifications
Optical & Polarizing System
| Parameter | Specification |
|---|
| Microscope Type | Student Polarizing Microscope |
| Model | PM-9 |
| Viewing Head | Monocular |
| Body Type | Limb type, hinged, inclinable to 90° |
| Bertrand Lens | In / Out type |
| Analyzer | Sliding analyzer |
| Compensators | 1/4 wave & full wave |
| Polarizer | Duly graduated, with in–out system |
Objectives, Eyepieces & Stage
| Component | Specification |
|---|
| Objectives | P5×, P10×, P40× / P45× |
| Eyepieces | 5× (cross), 10× (ocular), 15× (optional) |
| Stage Type | Circular rotatable stage |
| Stage Rotation | 0–360° with vernier |
| Stage Mounting | Ball bearing mounted |
Condenser & Illumination
| Parameter | Specification |
|---|
| Condenser | Adjustable, NA 1.25 |
| Reflector | Plano-concave mirror |
| Illumination (Optional) | Sub-stage LED (replaceable mirror) |
🧪 Applications & Usage Areas
| Field | Usage |
|---|
| Geology | Mineral identification and crystal study |
| Material Science | Birefringence analysis |
| Academic Institutions | Teaching polarized light microscopy |
| Mineralogy | Thin section examination |
| Physics Laboratories | Optical property demonstrations |
| Training Labs | Practical student instruction |
🛠 Build Quality & Ergonomics
| Component | Details |
|---|
| Frame | Heavy-duty metal construction |
| Mechanical Parts | Smooth movement with ball bearings |
| Optical Alignment | Stable and precise |
| Finish | Durable laboratory-grade coating |
| Controls | Student-friendly layout |
📦 Packaging & Delivery
| Packaging Type | Details |
|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Strong cardboard box |
🎯 Why Choose Student Polarizing Microscope PM-9
| Reason | Advantage |
|---|
| Designed for Education | Perfect balance of features and simplicity |
| True Polarizing Optics | Accurate birefringence observation |
| Smooth Rotating Stage | Precise angular measurements |
| Expandable Illumination | Optional LED upgrade |
| Cost-Effective | Ideal for institutions and training centers |
| Trusted Build Quality | Suitable for daily academic use |
