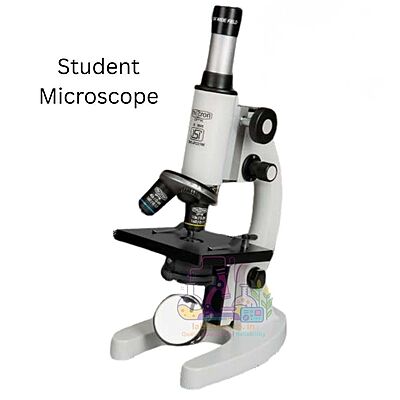

Student Microscope VG-2 - MICRON
/
Student Microscope VG-2 - MICRON
Student Microscope VG-2 - MICRON
Micron

Student Microscope VG-2 - MICRON

The VG-2 Student Microscope is a straightforward introductory model for classroom use, offering the same essential optical configuration as the KG-2 with 10× and 40× achromatic objectives, a straight monocular viewing tube, and separate coarse and fine focusing knobs for easy operation.

Like the KG-2, it uses a fixed Abbe condenser (NA 1.25) with iris diaphragm, a stable 110×110 mm stage with clips, and traditional plano-concave mirror illumination, making it suitable for basic biology and school laboratory exercises without the need for electrical lighting.

Positioned as a simple, economical alternative to the KG-2, the VG-2 delivers comparable magnification and fundamental functionality for routine student observation and introductory microscopy training.

Non-returnable
₹4,000.00
₹4,500.00
Customize
Choose Quantity:
View Details
Share:

The Micron VG-2 Student Microscope is built to provide dependable performance for basic biological observation and practical science education. It features a triple revolving nosepiece fitted with 10× and 40× achromatic objectives, allowing quick magnification changes with clear, colour-corrected images.

A fixed Abbe condenser (N.A. 1.25) with iris diaphragm delivers controlled and even illumination across the specimen. The plano concave mirror lighting system enables operation without electricity, making the microscope suitable for classrooms and field training environments.

Smooth and precise focusing is achieved through separate coarse and fine focusing knobs, while the fixed 110 × 110 mm stage with stage clips keeps slides securely positioned during observation. The straight monocular viewing tube and supplied Huygens or wide-field eyepieces provide comfortable viewing for extended study sessions.

Simple, durable, and easy to maintain, the VG-2 is an ideal entry-level microscope for foundational biology learning.


Technical Specifications

FeatureSpecification
ModelVG-2
CategoryStudent Microscope
Focusing SystemSeparate coarse & fine focusing knobs
NosepieceTriple revolving
Mechanical StageFixed 110 × 110 mm with stage clips
CondenserFixed Abbe N.A. 1.25 with iris diaphragm
IlluminationPlano concave mirror
Viewing TubeStraight monocular
Objectives10×, 40× (S/L) achromatic
Eyepiece10× & 15× Huygens / 10× wide field
  • Eye Piece Type
    Monocular
  • Eye Piece
    10X & 15X Hygienic Eyepiece
  • Nosepiece
    Triple revolving nosepiece with positive click stops
  • Stage
    Fixed 110 × 110 mm with stage clips
  • Focusing
    Separate coarse and fine adjustment
  • Condenser
    ABBE condenser with IRIS diaphragm
  • Condenser Type
    Fixed
  • Illumination
    Sub-stage piano-concave mirror
  • Objective Type
    Achromatic
  • Objectives
    10X and 40X
  • Certification
    ISI
