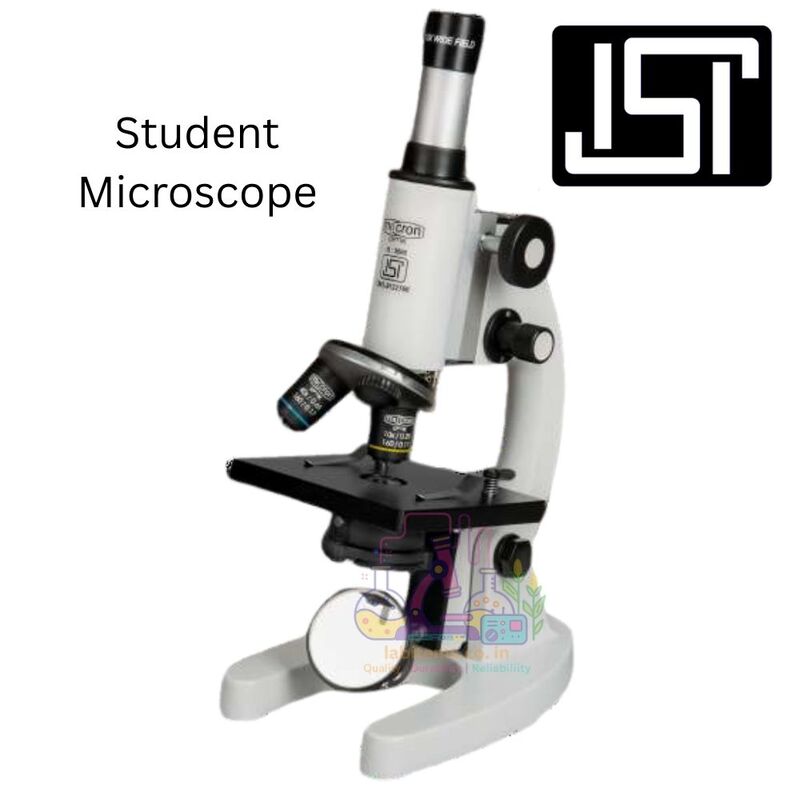

Student Microscope KG-2 - MICRON
The Micron KG-2 Student Microscope is a durable ISI-marked monocular microscope designed for schools, colleges, and basic laboratory education. It delivers reliable optical clarity, smooth focusing control, and robust construction for everyday academic use.
Customize
Product Details
The Micron Student Microscope KG-2 is purpose-built to support foundational microscopy learning in educational institutions. Featuring a triple revolving nosepiece with achromatic objectives (10× and 40×), it ensures clear and accurate specimen observation during routine biological studies.
A fixed Abbe condenser (N.A. 1.25) with iris diaphragm provides effective light management, while the plano concave mirror illumination system enables operation without electrical power—making it ideal for classrooms with limited infrastructure.
The microscope is equipped with separate coarse and fine focusing knobs for precise and smooth focusing, along with a fixed 110 × 110 mm stage with stage clips to securely hold slides in place. The straight viewing monocular tube and wide-field eyepiece options offer comfortable viewing for students during extended practical sessions.
With its ISI certification, sturdy build, and dependable optical performance, the Micron KG-2 is an excellent entry-level microscope for structured science education.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | KG-2 |
| Category | Student Microscope |
| Certification | ISI Mark |
| Focusing System | Separate coarse and fine focusing knobs |
| Nosepiece | Triple revolving nosepiece |
| Mechanical Stage | Fixed 110 × 110 mm with stage clips |
| Condenser | Fixed Abbe condenser, N.A. 1.25 with iris diaphragm |
| Illumination | Plano concave mirror |
| Viewing Tube | Straight viewing monocular tube |
| Objectives | 10×, 40× (S/L) achromatic |
| Eyepiece | 10× & 15× Huygens / 10× wide field |
Specifications
- Eye Piece TypeMonocular
- Eye Piece10X & 15X Hygienic Eyepiece
- NosepieceTriple revolving nosepiece with positive click stops
- StageFixed 110 × 110 mm with stage clips
- FocusingSeparate coarse and fine adjustment
- CondenserABBE condenser with IRIS diaphragm
- Condenser TypeFixed
- IlluminationSub-stage piano-concave mirror
- Objective TypeAchromatic
- Objectives10X and 40X
- CertificationISI
