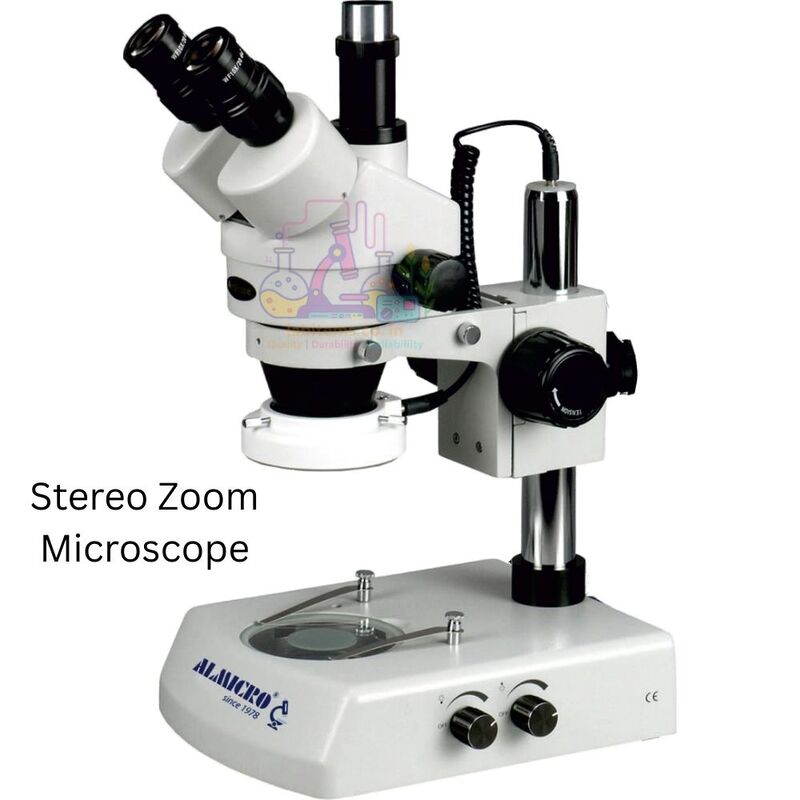

DSZ-88 Stereo Zoom Microscope
The DSZ-88 Stereo Zoom Microscope is a versatile trinocular zoom stereo microscope designed for detailed observation, inspection, and documentation across medical, biological, and industrial applications. Its integrated mechanical design and long working distance optics deliver sharp, high-resolution images with excellent depth perception.
Equipped with a 6.4:1 zoom ratio (0.7×–4.5×), 45° inclined viewing tube with 360° rotation, and reflected & transmitted halogen illumination, the DSZ-88 ensures flexibility for both surface and transparent specimen observation. The trinocular port allows easy camera attachment for imaging and analysis, making it ideal for research labs, electronics inspection, gemology, zoology, and precision industries.
DSZ-77 Stereo Zoom Microscope
The DSZ-77 Stereo Zoom Microscope is a robust binocular zoom stereo microscope engineered for routine inspection, education, and laboratory observation. Featuring a compact column-type body and ergonomic 45° inclined binocular head, it provides comfortable viewing with stable performance.
With a 6.4:1 zoom system (0.7×–4.5×), wide-field eyepieces, and dual reflected and transmitted halogen illumination, the DSZ-77 delivers bright, clear images across a wide range of applications. Its durable construction and easy operation make it well suited for biology, botany, archaeology, watchmaking, electronics inspection, and training laboratories.
Customize
Product Details
🔬 Stereo Zoom Microscope DSZ Series (DSZ-77 / DSZ-88)
A professional stereo zoom microscope designed for precision observation, inspection, and assembly across medical, biological, and industrial applications.
🔁 Available Variants
| Variant | Viewing Configuration |
|---|---|
| DSZ-77 | Binocular Stereo Zoom Microscope |
| DSZ-88 | Trinocular Stereo Zoom Microscope (Camera-Ready) |
⭐ Key Features & Benefits
| Feature | Benefit |
|---|---|
| Integrated Streamlined Mechanical Design | Stable, vibration-free performance |
| Stereo Zoom Optical System | Continuous magnification without refocusing |
| 6.4:1 Zoom Ratio | Smooth zooming for detailed inspection |
| Long Working Distance | Comfortable handling of specimens and tools |
| Clear, High-Resolution Imaging | Sharp stereo images with excellent depth |
| 45° Inclined Viewing Head | Ergonomic viewing posture |
| 360° Rotatable Head | Flexible multi-user operation |
| Wide Field Eyepieces | Large, bright field of view |
| Dual Illumination System | Supports both top and bottom lighting |
| Column Stand Design | Precise height adjustment and stability |
| Trinocular Option | Easy camera integration for documentation (DSZ-88) |
| Industrial-Grade Construction | Suitable for continuous professional use |
🔍 Technical Specifications
Optical & Viewing System
| Parameter | Specification |
|---|---|
| Microscope Type | Stereo Zoom Microscope |
| Series | DSZ |
| Viewing Head | Binocular (DSZ-77) / Trinocular (DSZ-88) |
| Viewing Angle | 45° inclined |
| Head Rotation | 360° |
| Interpupillary Distance | 55–75 mm |
| Diopter Adjustment | Left & right tubes |
| Eyepieces | WF 10× |
| Zoom Ratio | 6.4 : 1 |
| Zoom Range | 0.7× – 4.5× |
Illumination & Stand
| Component | Specification |
|---|---|
| Illumination Type | Reflected & Transmitted |
| Light Source | Halogen lamp 6V / 15W |
| Stand Type | Column type |
| Body Construction | Integrated metal housing |
| Power Supply | 230V AC |
🧪 Applications & Usage Areas
| Industry / Field | Usage |
|---|---|
| Medical & Health Sciences | Observation & analysis |
| Biology & Botany | Specimen surface study |
| Zoology | Dissection & morphology |
| Farming & Forestry | Inspection and research |
| Electronics Industry | PCB inspection & soldering |
| Watch & Precision Industry | Assembly and repair |
| Gem & Jewelry Industry | Stone inspection |
| Archaeology | Artifact examination |
🛠 Build Quality & Ergonomics
| Component | Details |
|---|---|
| Optical Body | Streamlined integrated design |
| Zoom Mechanism | Smooth continuous zoom |
| Viewing Head | Ergonomic binocular / trinocular |
| Stand | Rigid column stand |
| Illumination System | Stable halogen lighting |
| Finish | Industrial laboratory-grade coating |
📦 Packaging & Delivery
| Packaging Type | Details |
|---|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Strong cardboard box |
🎯 Why Choose DSZ Stereo Zoom Microscope Series
| Reason | Advantage |
|---|---|
| One Product, Two Variants | Binocular or Trinocular flexibility |
| Continuous Zoom | No image loss during magnification change |
| Dual Illumination | Adaptable for various samples |
| Ergonomic Design | Reduced fatigue in long sessions |
| Industrial & Research Ready | Versatile application coverage |
| Proven Reliability | Suitable for education, research & industry |
Specifications
- Eye Piece TypeBino/Trino
- Viewing Head45° inclined - 360° Head Rotation
- Eye PieceWide-field 10×
- StageColumn type
- IlluminationReflected & Transmitted - Halogen lamp 6V / 15W
- Power230V - 50 HZ AC
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
