Research Microscope BM-6 (Ultra Series) - ALMICRO

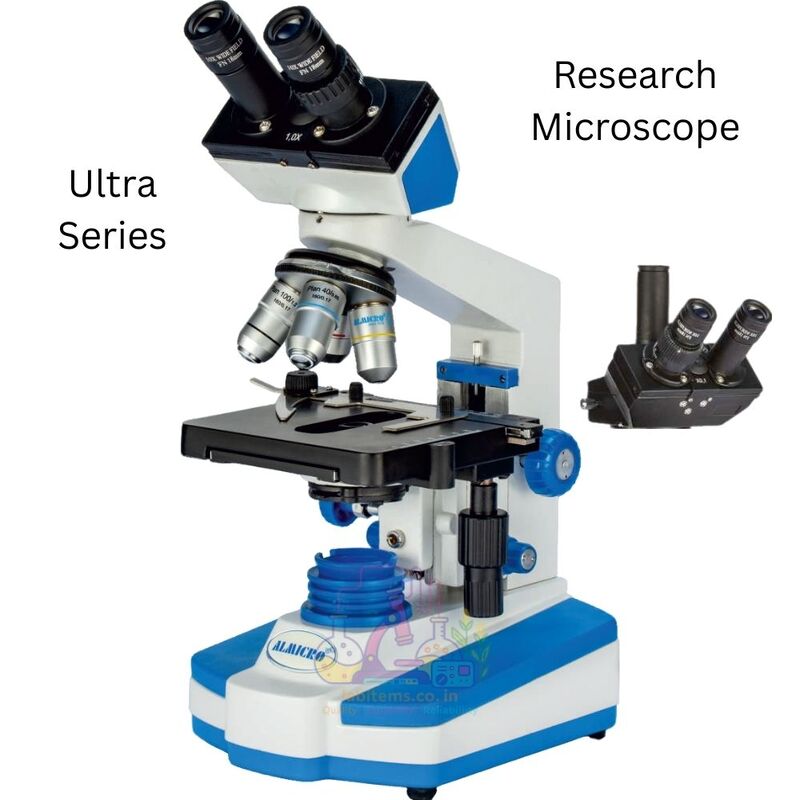

The BM-6bi Ultra Research Binocular Microscope with Trinocular Option is a high-precision research-grade microscope designed for advanced laboratory, teaching, and diagnostic applications. Supplied as a single configurable system , it includes a binocular viewing head for routine observation and a trinocular head for camera attachment and documentation , allowing users to switch between visual analysis and digital imaging as required.
Compared to the BM-6bi standard binocular microscope BM-6bi Ultra offers a new ergonomic design , hard-coated prisms , quadruple ball-bearing nosepiece , double-layer graduated mechanical stage , and refined fine focusing system for superior stability and measurement accuracy. Equipped with plan achromatic objectives (4×, 10×, 40×, 100× oil) , EWF 10× eyepieces , and bright regulated LED illumination , this combined bino–trino configuration is ideal for research laboratories, teaching hospitals, pathology labs, and institutions requiring both precision viewing and image documentation in one integrated solution .
Non-returnable
SKU - BM-6bi(Ultra)
SKU - BM-6tr(Ultra)
Out of stock Out of stock
Customize
Product Details
🔬 Research Microscope BM-6 (Ultra Series) – Binocular & Trinocular Available Variants ⭐ Key Features & Benefits Feature Customer Benefit Ultra Series Ergonomic Design Professional build for long research sessions Hard-Coated Prism Optical System High contrast, bright images with long optical life Extra Wide Field Eyepieces (EWF 10×, 18 mm) Wider viewing area and reduced eye strain Plan Achromatic Objectives Flat, sharp, color-corrected images Quadruple Ball-Bearing Nosepiece Smooth, precise objective rotation Co-Axial Coarse & Fine Focusing Accurate and effortless focusing control Double-Layer Mechanical Stage Stable slide handling with precise X-Y movement Low-Positioned Co-Axial Stage Knobs Ergonomic slide control with reduced fatigue Special Graduated Mechanical Stage Accurate measurements and repeatable positioning Abbe Condenser with High-Quality Optics Efficient light utilization at all magnifications Bright LED Illumination Uniform, energy-efficient lighting Solid-State Power Supply Circuit Stable illumination with minimal maintenance Heavy Die-Cast Stand Vibration-free performance for precision work
🔍 Variant Comparison Specification BM-6bi Ultra (Binocular) BM-6TR Ultra (Trinocular) Viewing Head Binocular Trinocular with camera port Visual Observation Yes Yes Camera / Imaging Support ❌ ✅ (Photo/Video attachment) Eyepieces EWF 10× (18 mm, paired) EWF 10× (18 mm, paired) Objectives 4×, 10×, 40×, 100× (Oil) 4×, 10×, 40×, 100× (Oil) Illumination LED LED Application Focus Teaching & research Research & documentation
🧪 Applications & Usage Areas Application Area Usage Research Laboratories Advanced biological and material research Medical & Life Science Colleges Teaching and practical demonstrations Diagnostic & Clinical Labs High-precision slide analysis Industrial & Quality Labs Measurement and inspection Imaging & Documentation Labs Digital microscopy (Trinocular) Skill Development Centers Professional microscopy training
📦 What’s Included in the Box Item Description Research Microscope BM-6 Ultra Binocular or Trinocular (as selected) Eyepieces EWF 10× (18 mm), paired Objectives Plan achromatic 4×, 10×, 40× & 100× oil Nosepiece Quadruple revolving, ball-bearing Mechanical Stage Double-layer, graduated Condenser Unit Abbe condenser with iris diaphragm Illumination Bright LED with solid-state power supply Camera Port Included with Trinocular variant only Inner Packing Thermocol / Styrofoam Outer Box Strong cardboard carton Optional Packaging Wooden cabinet with lock & key
🛠 Build Quality & Construction Component Construction Detail Stand Heavy-duty die-cast metal Optical System Hard-coated optics Focusing Mechanism Co-axial coarse & fine Stage Assembly Precision mechanical stage Illumination System LED with regulated circuit Finish Laboratory-grade durable coating
🎯 Why Choose Research Microscope BM-6 (Ultra Series) Reason Advantage One Product, Two Configurations Choose binocular or trinocular as needed Research-Grade Optics Accurate, repeatable results Ergonomic Design Comfortable for long working hours Imaging-Ready Option Trinocular supports camera documentation Industry-Standard Build Suitable for demanding lab environments Long Service Life Reliable performance over years
Specifications
Eye Piece Type
Bino/Trino
Viewing Head
360° Rotatable Binocular Head
Eye Piece
Extra Wide Field Eyepieces (EWF 10×; 18 mm) - Paired
Nosepiece
Quadruple revolving; ball-bearing type
Stage
Mechanical Stage - Double-layered with co-axial controls
Focusing
Co-Axial Coarse & Fine Focusing
Condenser
ABBE condenser with IRIS diaphragm
Illumination
Bright LED with solid-state power supply
Objective Type
Plan Achromatic
Objectives
4X; 10X; 40X; 100X Oil Immersion
Power
230V - 50 HZ AC
Battery
Not Applicable
Packaging
Securely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
Special Attachments
Optional Camera
Build Quality & Construction
Heavy-duty die-cast metal Stand | Suitable for demanding lab environments | Choose binocular or trinocular as needed
