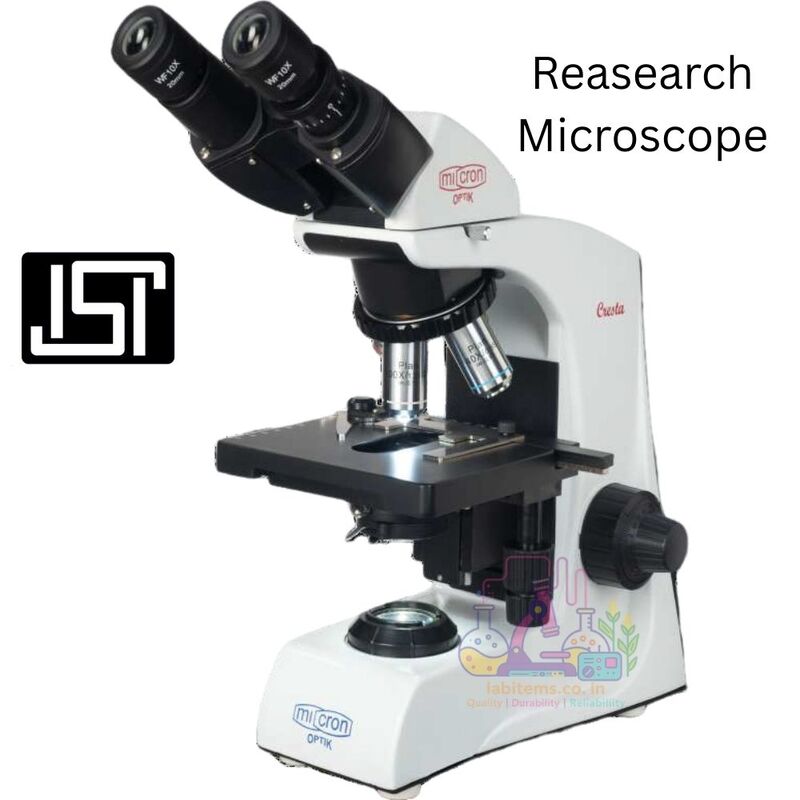

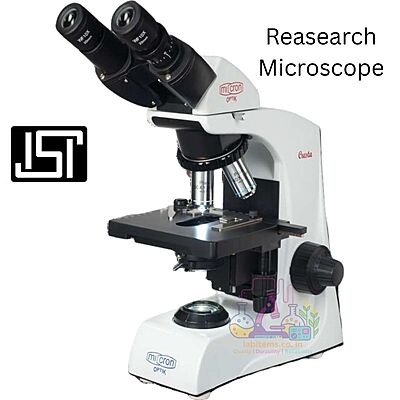

The Micron Cresta ZS 50 Plus and ZS 50i microscopes are built for high-accuracy research and clinical analysis. A rigid single-mould arm structure with viewing window ensures excellent stability and reduced vibration for crisp, repeatable imaging.
An inward ball-bearing quadruple revolving nosepiece combined with a ball-bearing low-drive coaxial mechanical stage delivers ultra-smooth, backlash-free slide movement and precise specimen positioning. Illumination is provided by a built-in 3W LED system with intensity control, working with a focusable Abbe condenser (N.A. 1.25) and iris diaphragm to optimise contrast and resolution.
Both variants feature a 30° inclined Siedentopf-type trinocular head, enabling comfortable binocular viewing along with a dedicated camera port for digital documentation and live display.
Optical differences define the two models:
ZS 50 Plus:Plan achromatic objectives for flat, edge-to-edge clarity in routine research work.
ZS 50i:Infinite plan achromatic objectives for superior optical correction and compatibility with advanced accessories.
A WF10×/20 mm wide-field eyepiece provides a larger viewing area for faster scanning. Both models include battery backup for uninterrupted operation during power outages and are protected with anti-fungus optical treatment for durability in humid environments.
These features make the Cresta research series ideal for universities, medical colleges, pathology labs, and research institutions.
Technical Specifications
| Feature | ZS 50 Plus | ZS 50i |
|---|
| Certification | ISI Mark | ISI Mark |
| Body | Single mould arm with viewing window | Same |
| Nosepiece | Inward, ball-bearing quadruple revolving | Same |
| Mechanical Stage | Ball-bearing low drive coaxial control | Same |
| Condenser | Focusable Abbe N.A. 1.25 with iris diaphragm | Same |
| Illumination | 3W LED with intensity control | Same |
| Viewing Head | 30° inclined trinocular (Siedentopf) | Same |
| Objectives | Plan Achromatic | Infinite Plan Achromatic |
| Eyepiece | WF10× / 20 mm | Same |
| Battery Backup | Yes | Yes |
| Special Feature | Anti-fungus optics | Anti-fungus optics |
Key Features
Advanced LED illumination system
Smooth ball-bearing mechanical controls
Reversed inward nosepiece for ergonomic access
Trinocular observation for camera integration
Anti-fungus treated optics for long life
Battery backup for uninterrupted laboratory work
