Phase Contrast Attachment - ALMICRO
The Phase Contrast Attachment is designed for observing unstained, transparent, and living specimens by converting minute differences in refractive index and specimen thickness into visible contrast. It enables detailed visualization of cellular structures without the need for staining.

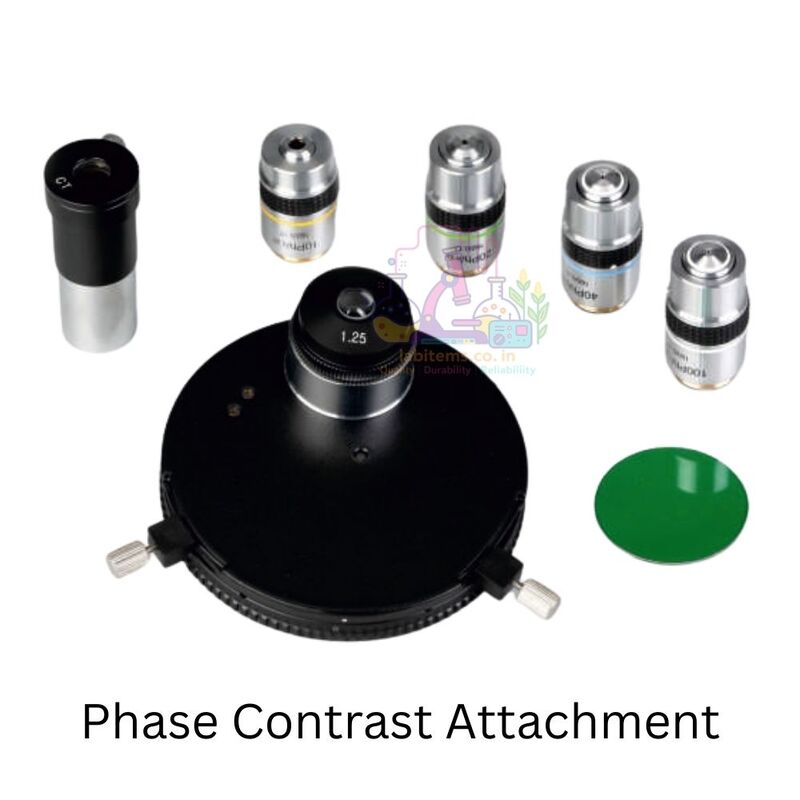

The set includes a phase turret condenser (NA 1.25) with iris diaphragm , phase achromatic objectives (10×, 20×, 40×, and 100× oil immersion) , a phase centering telescope , and a green filter for accurate alignment and enhanced image quality. This attachment is ideal for cell culture studies, microbiology, pathology, and live specimen observation , making it a valuable addition to research, clinical, and teaching laboratories.
Non-returnable
SKU - PCA-001
Customize
Product Details
🔬 Phase Contrast Attachment (Research Grade) A precision optical attachment designed for observing unstained and living specimens by converting phase differences into visible contrast.
⭐ Key Features & Benefits Feature Customer Benefit Phase Contrast Technique Enables observation of transparent and unstained specimens Converts Phase to Brightness Differences Reveals internal cellular structures clearly Ideal for Live Cell Imaging No staining required, preserves specimen integrity Research-Grade Optical Components High contrast and sharp image quality Compatible with Research Microscopes Designed for laboratory and R&D applications Complete Phase Contrast Set Ready-to-use system with all essential components
🔍 Technical Specifications Parameter Specification Condenser Type Phase Turret Condenser Condenser Numerical Aperture NA 1.25 Iris Diaphragm Yes Objective Type Phase Achromatic Objectives Parfocal Distance 45 mm Objective Magnifications 10× (NA 0.025), 20× (NA 0.40), 40× (NA 0.65), 100× Oil (NA 1.25) Objective Loading Spring-loaded Immersion Objective Oil immersion, phase type Phase Centering Telescope Included Filter Green filter Condenser Key Included
📦 Items Included in the Set Component Description Phase Turret Condenser NA 1.25 with iris diaphragm Phase Objectives 10×, 20×, 40× & 100× oil Phase Centering Telescope For precise phase alignment Green Filter Enhances phase contrast visibility Condenser Key For installation and adjustment
🧪 Applications & Usage Areas Application Area Usage Cell Biology Observation of live and unstained cells Microbiology Bacteria, protozoa, and microorganisms Medical Research Hematology and cytology studies Academic Laboratories Teaching phase contrast techniques Pharmaceutical R&D Cell culture and drug response analysis Biotechnology Labs Transparent specimen examination
🎯 Why Choose This Phase Contrast Attachment Reason Advantage No Staining Required Preserves natural cell structure Complete Phase Kit No additional components needed High Optical Precision Clear contrast at all magnifications Research & Teaching Ready Suitable for professional and academic use Compatible with Infinity / Finite Systems Flexible integration with research microscopes Durable Construction Long service life in laboratory environments
📦 Packaging Packaging Type Details Standard Packing Inner Thermocol / Styrofoam + Outer Carton
Specifications
Packaging
Securely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
Build Quality & Construction
NA 1.25 with iris diaphragm | Parfocal Distance - 45 mm | Oil immersion & phase type
