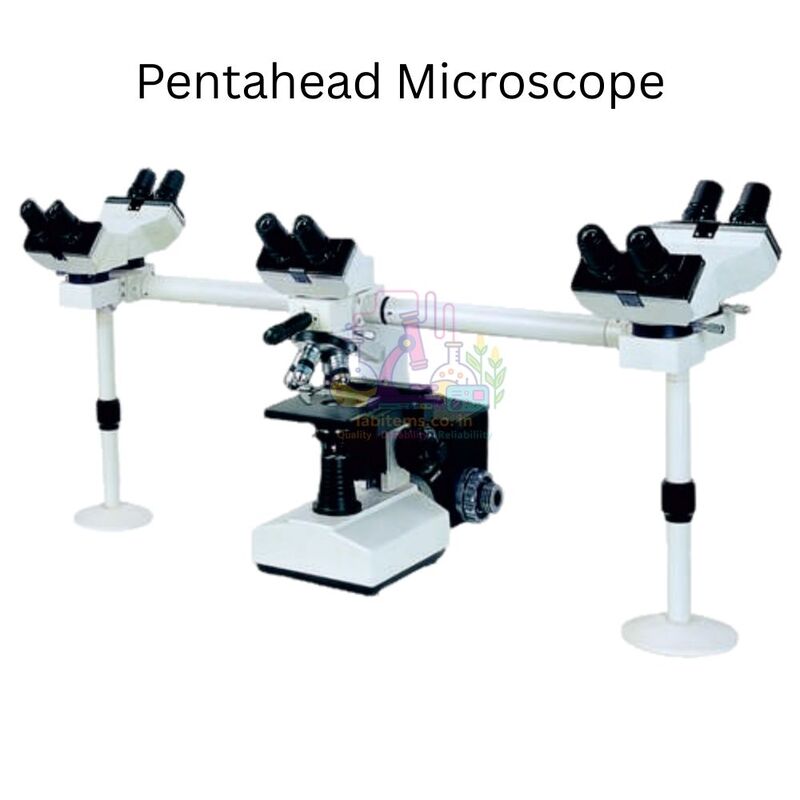

PENTAHEAD MICROSCOPE – X-555
The Pentahead Microscope X-555 is a multi-view teaching microscope designed to allow simultaneous observation by up to five users. Built with a high-quality achromatic optical system, this microscope delivers clear, sharp, and comfortable viewing for extended teaching sessions.
Equipped with five binocular viewing heads, precision focusing, and high-intensity illumination, the X-555 is ideally suited for medical colleges, dental institutions, and teaching laboratories where collaborative learning and instructor-guided demonstrations are essential.
Key Features & Benefits
| Feature | Benefit |
|---|
| 5-Head Viewing System | Enables simultaneous observation for group teaching |
| Achromatic Optical System | Provides clear, distortion-free images |
| Five Binocular Viewing Heads | Uniform image quality for all viewers |
| Co-Axial Coarse & Fine Focusing | Smooth and precise focusing control |
| LED Pointer | Instructor can highlight specific specimen areas |
| Large Mechanical Stage | Stable specimen positioning during demonstrations |
| Adjustable Illumination | Comfortable viewing without eye strain |
| Robust Teaching Structure | Designed for long-term institutional use |
Optical Specifications
| Parameter | Specification |
|---|
| Optical System | Achromatic optical system |
| Eyepieces | Wide Field WF 10× / 18 mm |
| Objectives | Achromatic 4×, 10×, 40×, 100× |
| Nosepiece | Quadruple revolving nosepiece |
| Viewing Configuration | 5 Binocular heads |
| Head Design | Ergonomic inclined heads for comfortable viewing |
Mechanical & Focusing System
| Parameter | Specification |
|---|
| Focusing | Co-axial coarse and fine adjustment |
| Fine Focus Precision | 0.002 mm |
| Stage Type | Plain layer mechanical stage |
| Stage Size | 140 mm × 140 mm |
| Body Construction | Heavy-duty multi-arm teaching structure |
Illumination System
| Parameter | Specification |
|---|
| Light Source | Halogen lamp 6V / 30W |
| Brightness Control | Adjustable illumination intensity |
| Condenser | Swing condenser NA 0.9 / 0.25 |
| LED Pointer | Adjustable brightness LED pointer |
| Power Supply | 230V AC |
Applications
| Field | Usage |
|---|
| Medical Colleges | Pathology, histology & microbiology teaching |
| Dental Colleges | Oral pathology training |
| Teaching Laboratories | Group demonstrations & instruction |
| Clinical Training | Collaborative specimen study |
| Research Training | Multi-observer discussions |
Packaging & Delivery
| Item | Details |
|---|
| Inner Packing | Thermocol / Styrofoam protective packing |
| Outer Packing | Heavy-duty corrugated carton |
| Shipping | Safe for long-distance transport |
