The BM-8mo Pathological Monocular Microscope is an advanced diagnostic microscope designed for precision pathology and clinical laboratory work. Compared to the BM-6mo, the BM-8mo introduces a co-axial coarse and fine focusing system, offering smoother, more precise control during high-magnification observation. While both models support objectives up to 100× oil immersion, LED illumination with intensity control, and a mechanical stage, the BM-8mo delivers enhanced ergonomics, refined focusing accuracy, and improved workflow efficiency. Positioned above standard pathological models, it is ideal for laboratories requiring greater control and reliability in routine and advanced diagnostic applications.
Almicro

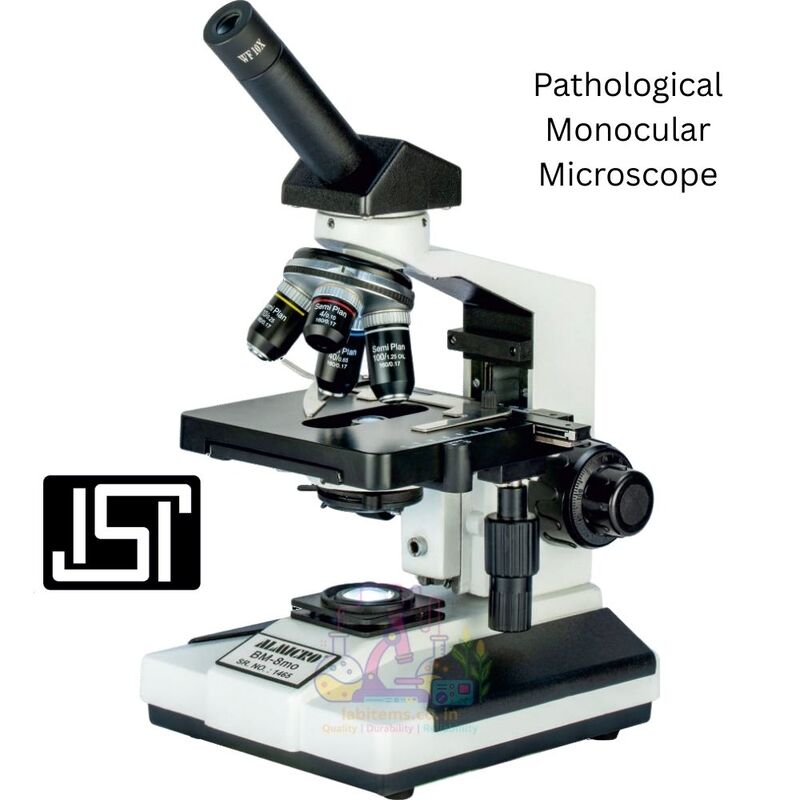

Pathological Monocular Microscope BM-8mo - ALMICRO
Non-returnable
₹20,000.00
₹25,500.00
Customize
Choose Quantity:
Share:
Product Details
🔬 Pathological Monocular Microscope BM-8mo – Key Features & Benefits
| Feature | Customer Benefit |
|---|---|
| Pathological Monocular Design | Ideal for routine diagnostic and clinical microscopy |
| Wide-Field 10× Eyepiece | Clear viewing with comfortable eye relief |
| Parafocal Achromatic Objectives (4×, 10×, 40×, 100× Oil Immersion) | Sharp, color-corrected images across magnifications |
| 360° Rotatable Monocular Head | Flexible viewing angle for user comfort |
| Co-Axial Coarse & Fine Focusing | Smooth, precise focusing with minimal effort |
| Horizontal Co-Axial Mechanical Stage (120 × 125 mm min.) | Accurate slide positioning and movement |
| Graduated Mechanical Stage Controls | Precise X-Y specimen navigation |
| Abbe Condenser (NA 1.25) | Efficient light concentration for bright-field observation |
| LED Illumination with Intensity Regulator | Bright, uniform, energy-efficient lighting |
| Plano-Concave Mirror Attachment | Backup illumination option |
| Dual Illumination (LED + Mirror) | Reliable operation during power interruptions |
| Heavy, Stable Base | Vibration-free performance for diagnostic accuracy |
🧪 Applications & Usage Areas
| Application Area | Usage |
|---|---|
| Pathology Laboratories | Routine pathological slide examination |
| Diagnostic Centers | Blood, tissue, and specimen analysis |
| Medical Colleges | Teaching and clinical training |
| Hospitals | Educational and diagnostic observation |
| Research Laboratories | Medical and biological research |
| Skill Development Centers | Professional microscopy training |
📦 What’s Included in the Box
| Item | Description |
|---|---|
| Pathological Microscope BM-8mo | Fully assembled monocular microscope |
| Eyepiece | Wide-field 10× |
| Objectives | Achromatic 4×, 10×, 40× & 100× oil immersion |
| Nosepiece | Quadruple revolving |
| Mechanical Stage | 120 × 125 mm minimum |
| Condenser Unit | Abbe condenser with iris diaphragm |
| Illumination | LED with intensity control + mirror |
| Power Supply | 220V, 50 Hz AC |
| Inner Packing | Thermocol / Styrofoam protection |
| Outer Box | Strong cardboard carton |
🛠 Build Quality & Construction
| Component | Construction Detail |
|---|---|
| Body | Heavy-duty metal construction |
| Stand | Rigid, well-balanced base |
| Focusing System | Co-axial coarse and fine adjustment |
| Stage Assembly | Precision mechanical stage |
| Optical System | Parafocal achromatic optics |
| Finish | Medical-grade durable coating |
🎯 Why Choose Pathological Monocular Microscope BM-8mo
| Reason | Advantage |
|---|---|
| Diagnostic-Grade Optics | Supports oil immersion pathology work |
| LED Illumination | Bright, stable, and energy efficient |
| Dual Light Option | Reliable use during power failures |
| Precise Slide Control | Accurate specimen examination |
| Comfortable Viewing | Rotatable monocular head |
| Long-Term Reliability | Designed for daily laboratory use |
Specifications
- Eye Piece TypeMonocular
- Viewing Head360° Rotatable Monocular Head
- Eye PieceWide-field 10×
- NosepieceQuadruple revolving
- StageMechanical Stage - 120 × 125 mm minimum
- FocusingCo-Axial Coarse & Fine Focusing
- CondenserABBE condenser with IRIS diaphragm
- IlluminationDual Illumination Support (LED + Mirror) With Intensity Regulator
- Objective TypeAchromatic
- Objectives4X; 10X; 40X; 100X Oil Immersion
- CertificationISI
- Power230V - 50 HZ AC
- BatteryNot Applicable
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
