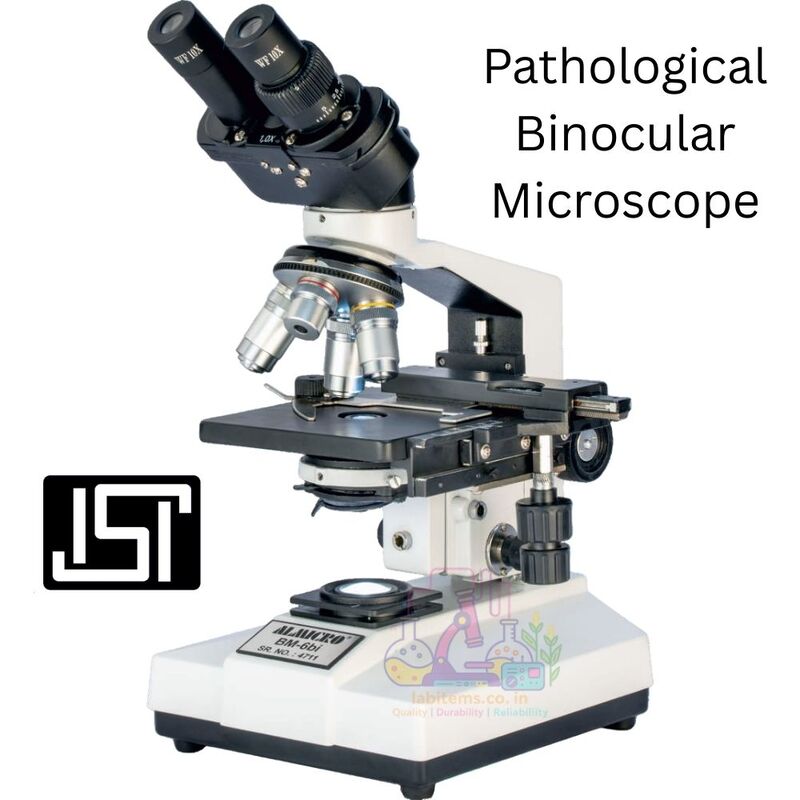

The BM-6bi Pathological Binocular Microscope is a professional-grade diagnostic microscope designed for prolonged pathological and clinical examination. Compared to the BM-6mo monocular model, the BM-6bi upgrades to a binocular viewing head, significantly reducing eye strain during extended observation. It retains the same advanced optical capabilities—objectives up to 100× oil immersion, LED illumination with intensity control, Abbe condenser (NA 1.25), and a precision mechanical stage—but offers superior comfort and depth perception. Unlike student and medical models such as the BM-5, the BM-6bi is purpose-built for continuous laboratory diagnostics, making it ideal for pathology labs, hospitals, and research centers requiring accuracy with viewing comfort.
Almicro
Pathological Binocular Microscope BM-6bi - ALMICRO
Non-returnable
₹15,500.00
₹22,999.00
Customize
Choose Quantity:
Share:
Product Details
🔬 Pathological Binocular Microscope BM-6bi – Key Features & Benefits
| Feature | Customer Benefit |
|---|---|
| Pathological Binocular Viewing Head | Comfortable two-eye viewing for reduced eye strain |
| Two Wide-Field 10× Eyepieces | Clear, bright images with improved viewing comfort |
| Parafocal Achromatic Objectives (4×, 10×, 40×, 100× Oil Immersion) | Sharp, color-corrected images at all magnifications |
| 360° Rotatable Binocular Head | Flexible viewing angle for different users |
| Separate Coarse & Fine Focusing | Precise and smooth focus control for diagnostics |
| Horizontal Mechanical Stage (120 × 125 mm min.) | Accurate specimen positioning |
| Co-Axial Mechanical Stage Controls | Smooth X-Y slide movement |
| Abbe Condenser (NA 1.25) | Efficient light concentration for bright-field microscopy |
| LED Illumination with Intensity Regulator | Bright, uniform, energy-efficient lighting |
| Plano-Concave Mirror Attachment | Backup illumination option |
| Dual Illumination (LED + Mirror) | Reliable operation during power interruptions |
| Heavy & Stable Base | Vibration-free performance for accurate observation |
🧪 Applications & Usage Areas
| Application Area | Usage |
|---|---|
| Pathology Laboratories | Routine pathological slide examination |
| Diagnostic Centers | Blood, tissue, and specimen analysis |
| Medical Colleges | Teaching and clinical training |
| Hospitals | Training and diagnostic observation |
| Research Laboratories | Medical and biological research |
| Skill Development Centers | Professional microscopy training |
📦 What’s Included in the Box
| Item | Description |
|---|---|
| Pathological Binocular Microscope BM-6bi | Fully assembled binocular microscope |
| Eyepieces | Two wide-field 10× |
| Objectives | Achromatic 4×, 10×, 40× & 100× oil immersion |
| Nosepiece | Quadruple revolving |
| Mechanical Stage | 120 × 125 mm minimum |
| Condenser Unit | Abbe condenser with iris diaphragm |
| Illumination | LED with intensity control + mirror |
| Power Supply | 220V, 50 Hz AC |
| Inner Packing | Thermocol / Styrofoam protection |
| Outer Box | Strong cardboard carton |
🛠 Build Quality & Construction
| Component | Construction Detail |
|---|---|
| Body | Heavy-duty metal construction |
| Stand | Rigid, well-balanced base |
| Focusing System | Separate coarse and fine adjustment |
| Stage Assembly | Precision mechanical stage |
| Optical System | Parafocal achromatic optics |
| Finish | Medical-grade durable coating |
🎯 Why Choose Pathological Binocular Microscope BM-6bi
| Reason | Advantage |
|---|---|
| Binocular Comfort | Reduced eye fatigue during long sessions |
| Pathology-Ready Optics | Supports oil immersion diagnostics |
| LED Illumination | Bright, consistent, low-power lighting |
| Dual Light Support | Reliable use during power fluctuations |
| Precise Slide Control | Ideal for diagnostic accuracy |
| Long-Term Reliability | Designed for daily laboratory use |
Specifications
- Eye Piece TypeBinocular
- Viewing Head360° Rotatable Binocular Head
- Eye PieceTwo Wide-Field 10× Eyepieces
- NosepieceQuadruple revolving
- StageMechanical Stage - 120 × 125 mm minimum
- FocusingSeparate coarse and fine adjustment
- CondenserABBE condenser with IRIS diaphragm
- IlluminationDual Illumination Support (LED + Mirror) With Intensity Regulator
- Objective TypeAchromatic
- Objectives4X; 10X; 40X; 100X Oil Immersion
- CertificationISI
- Power230V - 50 HZ AC
- BatteryNot Applicable
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
