The BM-5 Medical Microscope is an ISI-marked, professional-grade monocular microscope designed for medical, paramedical, and advanced academic use. Compared to the BM-3 / BM-3A / BM-4 student microscopes, the BM-5 features a co-axial coarse and fine focusing system, a graduated mechanical stage (120 × 120 mm) for precise slide movement, and a double-lens bright-field Abbe condenser (NA 1.25) for superior optical control. While earlier BM-series models focus on basic teaching and durability, the BM-5 is built for higher precision, smoother operation, and clinical-level reliability, making it ideal for medical colleges, diagnostic training labs, and research-oriented institutions.
Almicro

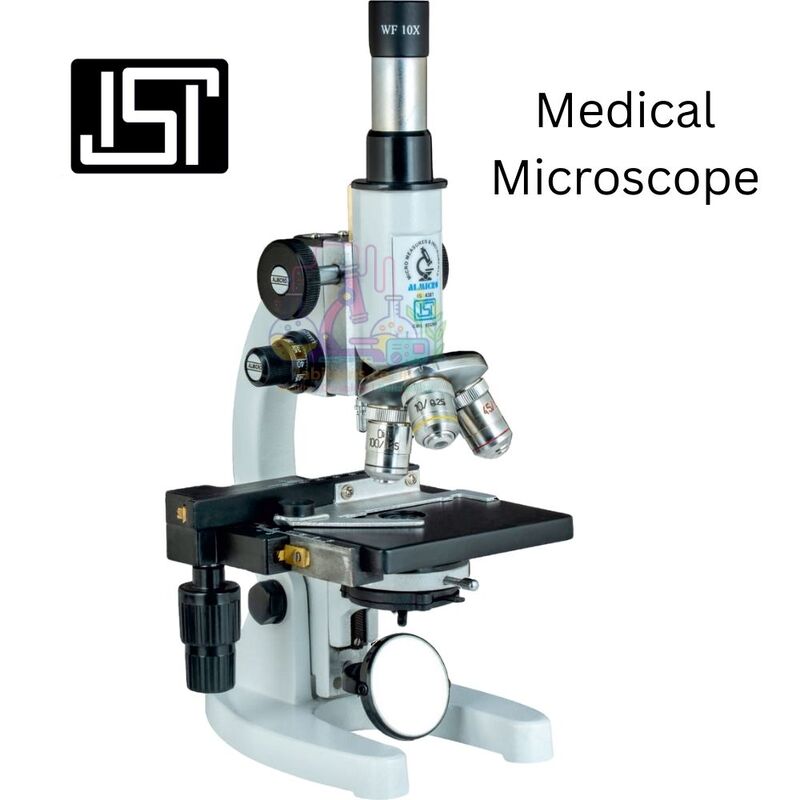

Medical Microscope BM-5 - ALMICRO
Non-returnable
₹8,800.00
₹10,000.00
Customize
Choose Quantity:
Share:
Product Details
🔬 Medical Microscope BM-5 – Key Features & Benefits
| Feature | Customer Benefit |
|---|---|
| ISI Marked Medical Microscope | Complies with Indian quality and safety standards |
| Heavy Pressure Die-Cast Monocular Body | High durability for daily medical and academic use |
| Monocular Viewing Head (Inclinable up to 90°) | Comfortable viewing for prolonged observation |
| Mechanical Tube Length 160 mm | Standard optical alignment for accurate results |
| Triple Revolving Nosepiece | Quick and precise objective selection |
| Achromatic Objectives (10× & 40×) | Clear, sharp, and color-corrected images |
| Separate Coarse & Fine Focusing | Smooth and precise focusing control |
| Co-Axial Mechanical Stage (120 × 120 mm) | Accurate slide movement in X-Y direction |
| Graduated Mechanical Stage Controls | Precise specimen positioning |
| Abbe Condenser (NA 1.25) | Efficient light concentration for bright field observation |
| Iris Diaphragm with Swing-Out Filter Holder | Adjustable contrast and illumination |
| Adjustable Down Stopper | Prevents accidental damage to slides |
| Piano-Concave Mirror Illumination | Uses natural or artificial light without electricity |
| Heavy & Stable Base | Vibration-free operation |
🧪 Applications & Usage Areas
| Application Area | Usage |
|---|---|
| Medical Colleges | Routine medical microscopy training |
| School & College Laboratories | Biology and medical science practicals |
| Diagnostic Training Labs | Slide examination practice |
| Educational Institutions | Demonstrations and learning |
| Research Laboratories | Basic pathological observation |
| Skill Development Centers | Medical microscopy training |
📦 What’s Included in the Box
| Item | Description |
|---|---|
| Medical Microscope BM-5 | Fully assembled monocular microscope |
| Eyepiece | Wide-field 10× |
| Objectives | Achromatic 10× and 40× |
| Nosepiece | Triple revolving |
| Mechanical Stage | 120 × 120 mm with slide controls |
| Condenser Unit | Abbe condenser with iris diaphragm |
| Illumination | Piano-concave mirror |
| Inner Packing | Thermocol / styrofoam protection |
| Outer Box | Strong cardboard carton |
🛠 Build Quality & Construction
| Component | Construction Detail |
|---|---|
| Body | Heavy-duty pressure die-cast metal |
| Stand | Rigid and well-balanced base |
| Focusing System | Separate coarse and fine adjustment |
| Stage Assembly | Co-axial mechanical stage |
| Optical System | Standard 160 mm tube length |
| Finish | Laboratory-grade durable coating |
🎯 Why Choose Medical Microscope BM-5
| Reason | Advantage |
|---|---|
| ISI Certified | Trusted quality for medical use |
| Medical-Grade Design | Suitable for clinical and academic training |
| Precise Slide Control | Mechanical stage ensures accuracy |
| Comfortable Operation | Inclined monocular head |
| No Power Dependency | Mirror-based illumination |
| Long Service Life | Built for institutional daily use |
Specifications
- Eye Piece TypeMonocular
- Viewing HeadInclined up to 90°
- Eye PieceWide-field 10×
- NosepieceTriple revolving nosepiece with positive click stops
- StageMechanical Stage - 120 × 120 mm with slide controls
- FocusingSeparate coarse and fine adjustment
- CondenserABBE condenser with IRIS diaphragm
- IlluminationDouble Lens Piano-concave mirror
- Objective TypeAchromatic
- Objectives10X and 40X
- CertificationISI
- PowerNot Required
- BatteryNot Applicable
- PackagingSecurely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
