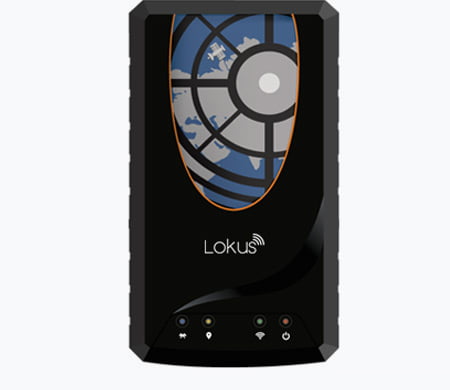

Lokus Lite Bluetooth GNSS Receiver
₹35,725.00
Tags:
Lokus Lite Meter level high precision GNSS receiver squeezes more accuracy from the GNSS constellations and free SBAS corrections including GAGAN reducing your cost of surveying and data acquisition. Thanks to our technology R&D, the Lokus Lite meter level GPS receiver works flawlessly with any Survey or Mapping applications be it on Android, iOS or Windows. It even works where other receivers fail to deliver. Like all Lokus GNSS receivers, the Lokus Lite provides real-time meter level SBAS corrections in the field. So there is no more requirement of any post-processing or high priced receivers. Get higher accuracy and greater productivity from the unmatched value of Lokus Lite. Please note the Lokus Lite works not only with GPS satellites, parallelly and concurrently three constellations are used to provide you high precision in real time during your mapping, surveying or GIS activities in the field.
Choose Quantity
Product Details
LOKUS LITE FEATURES
External Bluetooth GNSS Receiver
METER LEVEL ACCURACY
Acquire Precision GNSS Data With A Handheld Device
GAGAN PRECISION
Receiving and Tracking Multiple GNSS Systems as GPS, Galileo, GLONASS, BeiDou
EXTERNAL ANTENNA
Connected Wirelessly to Data Collection Device
NMEA OUTPUT
NMEA 0183
Data Output
MAPPING & GIS
Real-Time Sub Meter Accuracy
MULTI-GNSS
Real-Time, High Accuracy Performance
Lokus Lite Specifications
GNSS, Orientation and Accuracy
Receiver Type
- 72-channel, GPS L1 C/A, /QZSS L1C/A, QZSS L1 SAIF GLONASS L1 Of BeiDou B1, Galileo E1B/CGalileo E1B/C
SBAS
- GAGAN/WAAS/EGNOS/MSAS/QZSS
Chip
- High-sensitivity Receiver
Update Rate
- Up to 10Hz
Operational Limits
- Dynamics : ≤ 4 g
- Altitude : 50000 m
- Velocity : 500 m/s
Horizontal Accuracy
- 1-2 meter
Position Format
- Degree Decimal
Acquisition Time
- Cold start: 25 s
- Aided start: 2 s
- Reacquisition: 1.5 s
Auto Locate
- 5 minutes approx
Update Rate
- 1 Second, continuous
GPS Data I/O Protocol
Type
- NMEA 0183, Text
- Raw (Binary)
Communication
Ports
- Bluetooth classic 4.2
- USB 2.0
- Serial (optional)
Battery
Type
- Lithium-ion pack Rechargeable
Capacity
- 3.7V 2000 mAh
Operating Time
- 12+ hours
Environmental Use and Ruggedness
Operating Temperature
- -10ºC to +60ºC
Storage Temperature
- -20ºC to +70ºC
Water and Dust Proof
- IP65
Humidity
- 10-90% RH ±2%
Mechanical
Data Connector
- Micro USB Type
Antenna
GPS Frequency Range
- L1 (1575 MHz +/- 10 MHz)
Gain (without cable)
- 26.5 dB (+/- 2 dB), 35mA
Voltage
- +5 VDC +/- 10%
Impedance
- 50 Ω
Physical Characteristics
Dimension
- 120mm x 70.5mm x 30mm or smaller
Weight
- Less than 200 gms, with battery
Standard Accessories
- AC Charger and Data Cable
- Quick Start Guide
- Canvas Pouch
