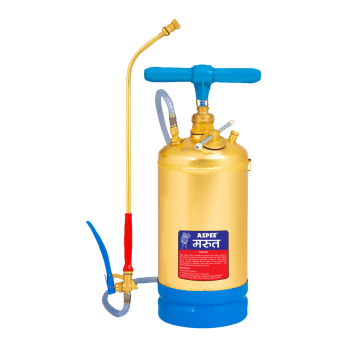

Knapsack Sprayer with Flat Nozzle for IRS Spraying
Heavy-Duty Brass Hand Compression Sprayer – Available in 3.5L, 6L, 9L & 12L Capacities
This hand compression knapsack sprayer is designed for efficient pesticide and disinfectant spraying in agriculture and public health applications. Manufactured with industrial-grade brass alloy tank, the sprayer ensures excellent durability, corrosion resistance, and long service life.
The sprayer features a 110 cm delivery hose, 48 cm goose-neck extension rod, and a dura mist flat spray nozzle with stainless steel disc for uniform spray distribution. It includes a trigger cut-off valve, filling funnel, wrench, packing gasket set, and adjustable shoulder strap for convenient operation.
Available Tank Capacity Variants
| Model Variant | Tank Capacity | Suitable For |
|---|---|---|
| Variant 1 | 3.5 Liters | Small gardens & indoor spraying |
| Variant 2 | 6 Liters | Medium agricultural spraying |
| Variant 3 | 9 Liters | Field crop spraying |
| Variant 4 | 12 Liters | Large area agricultural spraying |
Customize
Product Details
Product Overview
The Hand Compression Brass Sprayer is a reliable and durable spraying solution designed for agriculture, public health spraying, and pest control applications.
The sprayer tank is fabricated using cold rolled industrial brass alloy sheets, ensuring strong construction and long-lasting performance even under continuous field usage.
The sprayer operates using a manual compression pump system, where air pressure generated inside the tank forces the liquid through the hose and spray lance, producing a consistent mist spray.
Equipped with a 110 cm delivery hose and 48 cm extension lance with goose-neck bend, the sprayer allows comfortable spraying across crops, plants, and hard-to-reach areas.
A dura mist spray nozzle with stainless steel disc provides uniform mist distribution, ensuring effective chemical coverage.
The sprayer conforms to Indian Standard specifications with ISI mark, guaranteeing quality and reliability.
Key Features
✔ Heavy-Duty Brass Tank Construction
✔ Manual Hand Compression Pump System
✔ 48 cm Goose-Neck Extension Lance
✔ 110 cm Flexible Delivery Hose
✔ Dura Mist Flat Spray Nozzle with Stainless Steel Disc
✔ Trigger Cut-off Valve for Controlled Spraying
✔ Adjustable Shoulder Strap for Comfortable Carrying
✔ ISI Standard Compliant Construction
✔ Provision for Pressure Gauge Installation
Working Principle
Fill the sprayer tank with the desired chemical or liquid solution.
Use the built-in hand pump to compress air inside the tank.
The compressed air forces the liquid through the delivery hose.
The trigger valve controls the spray flow, while the flat spray nozzle distributes the liquid in a fine mist for uniform coverage.
Applications
• Agricultural pest control spraying
• Crop protection spraying
• Indoor Residual Spraying (IRS) programs
• Disinfectant spraying in sanitation programs
• Plantation & garden spraying
• Spraying in crops like potato, paddy, jute, groundnut, and sugarcane
Standard Accessories Included
• Brass Tank Assembly
• Built-in Hand Compression Pump
• Delivery Hose (110 cm)
• Extension Lance (48 cm Goose-neck Type)
• Trigger Cut-off Valve
• Dura Mist Spray Nozzle
• Stainless Steel Nozzle Disc
• Filling Funnel
• Wrench Tool
• Packing Gasket Set
• Adjustable Shoulder Strap
Technical Specifications
| Parameter | Specification |
|---|---|
| Tank Capacity Options | 3.5L / 6L / 9L / 12L |
| Tank Material | Industrial Grade Brass |
| Manufacturing Material | Cold Rolled Brass Alloy Sheets |
| Pump Type | Hand Compression Pump |
| Delivery Hose Length | 110 cm |
| Extension Rod Length | 48 cm |
| Nozzle Type | Dura Mist Flat Spray |
| Nozzle Disc | Stainless Steel |
| Control Valve | Trigger Cut-off Type |
| Shoulder Strap | Adjustable |
| Compliance | IS Specification with ISI Mark |
| Pressure Gauge | Collar Provided for Gauge Installation |
