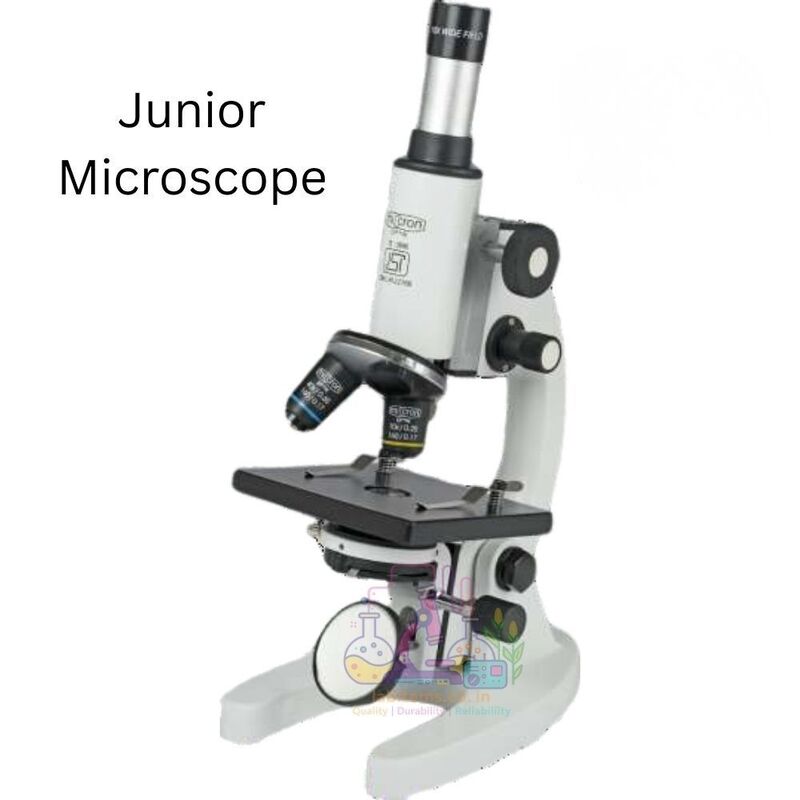

The Micron VG-3 Junior Microscope builds on the reliable VG-2 platform and adds a focusable Abbe condenser (N.A. 1.25) with iris diaphragm, allowing precise control of illumination and focus for better contrast and clarity during observation.
It retains the sturdy educational design with a triple revolving nosepiece carrying 10× and 40× achromatic objectives, providing clean and colour-corrected images for routine biological study.
The microscope uses a plano concave mirror illumination system, enabling operation without electrical power. Smooth adjustment is provided by separate coarse and fine focusing knobs, while the fixed 110 × 110 mm stage with stage clips keeps slides stable during examination.
With its straight monocular viewing tube and choice of 10×/15× Huygens or 10× wide-field eyepiece, the VG-3 offers comfortable viewing and improved optical control compared to basic entry-level models, making it ideal for higher school and college practical work.
Technical Specifications
| Feature | Specification |
|---|
| Model | VG-3 |
| Category | Junior Microscope |
| Base Platform | Same as VG-2 |
| Condenser | Focusable Abbe N.A. 1.25 with iris diaphragm |
| Focusing System | Separate coarse & fine focusing knobs |
| Nosepiece | Triple revolving |
| Mechanical Stage | Fixed 110 × 110 mm with stage clips |
| Illumination | Plano concave mirror |
| Viewing Tube | Straight monocular |
| Objectives | 10×, 40× (S/L) achromatic |
| Eyepiece | 10× & 15× Huygens / 10× wide field |
Applications
Intermediate school and college biology labs
Improved contrast microscopy for unstained samples
Practical science and laboratory training
