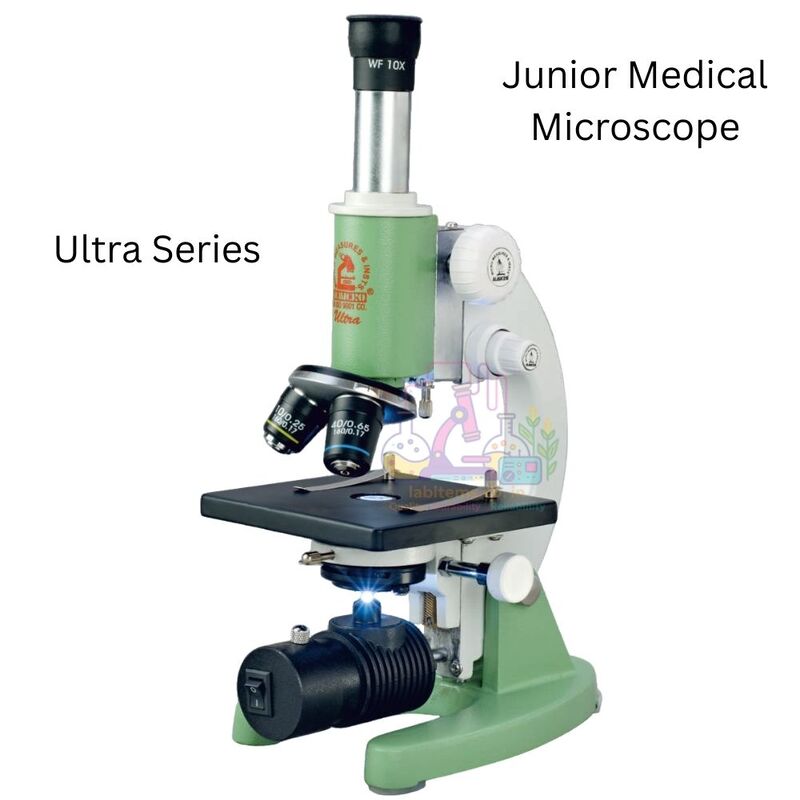

Junior Medical Microscope BM-4 (Ultra Series) - ALMICRO
The BM-4 Ultra Series Junior Medical Microscope is a portable, student-focused microscope designed for medical and paramedical training. It features battery-operated LED illumination , an extra-wide field 10× eyepiece , achromatic 10× and 40× objectives , and an Abbe condenser (NA 1.25) —making it ideal for classrooms, mobile labs, and locations with limited power availability.
Compared to the BM-4 Compound Student Microscope BM-4 Ultra offers battery-powered LED lighting and enhanced portability , allowing flexible use beyond fixed laboratory benches. While the BM-4 Compound Student Microscope is better suited for conventional lab setups with standard illumination and a traditional design, the BM-4 Ultra Series is optimized for mobility, modern ergonomics, and power independence , making it the preferred choice for training programs that require flexibility without compromising optical performance.
Non-returnable
SKU - BM-4(Ultra)
Customize
Product Details
🔬 Junior Medical Microscope BM-4 (Ultra Series) – Key Features & Benefits Feature Customer Benefit Ultra Series Ergonomic Design Modern, compact build with long-term stability Monocular Viewing Head Simple operation ideal for students and beginners Extra Wide Field 10× Eyepiece Wider viewing area for comfortable observation Triplet Revolving Nosepiece with Click Stops Smooth and accurate objective selection Achromatic Objectives (10× & 40×) Clear, sharp images for medical and biology study Rack & Pinion Coarse Focusing Smooth vertical movement of observation tube Fine Focusing Screw Mechanism Precise focusing for detailed clarity Abbe Condenser (NA 1.25) Efficient light concentration for bright images Iris Diaphragm with Swing-Out Filter Holder Adjustable contrast and illumination control Plane Stage with SS Clips Secure slide holding during observation Battery-Operated LED Illumination Portable operation without continuous power Optional Arc-Reflector Illumination Enables study using natural light Stable & Durable Base Vibration-free classroom use
🧪 Applications & Usage Areas Application Area Usage Medical & Paramedical Training Introductory microscopy for students School & College Laboratories Biology and basic medical science practicals Student Training Labs Hands-on learning and demonstrations Educational Institutions Routine slide observation Science Learning Centers Practical teaching and experiments Mobile / Field Labs Battery-powered microscopy applications
📦 What’s Included in the Box Item Description Junior Medical Microscope BM-4 Ultra Fully assembled monocular microscope Eyepiece Extra wide field 10× Objectives Achromatic 10× and 40× Nosepiece Triplet revolving with click stops Stage Plane stage with stainless steel clips Condenser Unit Abbe condenser with iris diaphragm Illumination Battery-operated LED lamp Optional Illumination Arc-reflector (natural light) Inner Packing Thermocol / styrofoam protection Outer Box Strong cardboard carton
🛠 Build Quality & Construction Component Construction Detail Body Rigid metal construction with Ultra Series finish Stand Compact, well-balanced base Focusing System Rack & pinion with fine adjustment Optical System High-efficiency light utilization Stage Assembly Durable, corrosion-resistant stage Finish Laboratory-grade protective coating
🎯 Why Choose Junior Medical Microscope BM-4 (Ultra Series) Reason Advantage Designed for Medical Students Ideal for introductory medical microscopy Portable & Battery Operated Suitable for labs with limited power supply Clear Optical Performance Accurate images for learning Durable Construction Withstands daily academic use Cost-Effective Excellent value for institutions Modern Ultra Series Design Attractive and ergonomic appearance
Specifications
Eye Piece Type
Monocular
Viewing Head
Simple operation and easy alignment for educational and lab use
Eye Piece
Extra Wide Field 10× Eyepiece
Nosepiece
Triple revolving nosepiece with positive click stops
Stage
High-quality SS stage clips
Focusing
Rack-Pinion Coarse & Fine Focusing
Condenser
ABBE condenser with IRIS diaphragm
Illumination
Battery-operated LED lamp
Objective Type
Achromatic
Objectives
10X and 40X
Power
Not Required
Battery
Battery-powered LED
Packaging
Securely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
Build Quality & Construction
Rigid metal construction with Ultra Series finish
