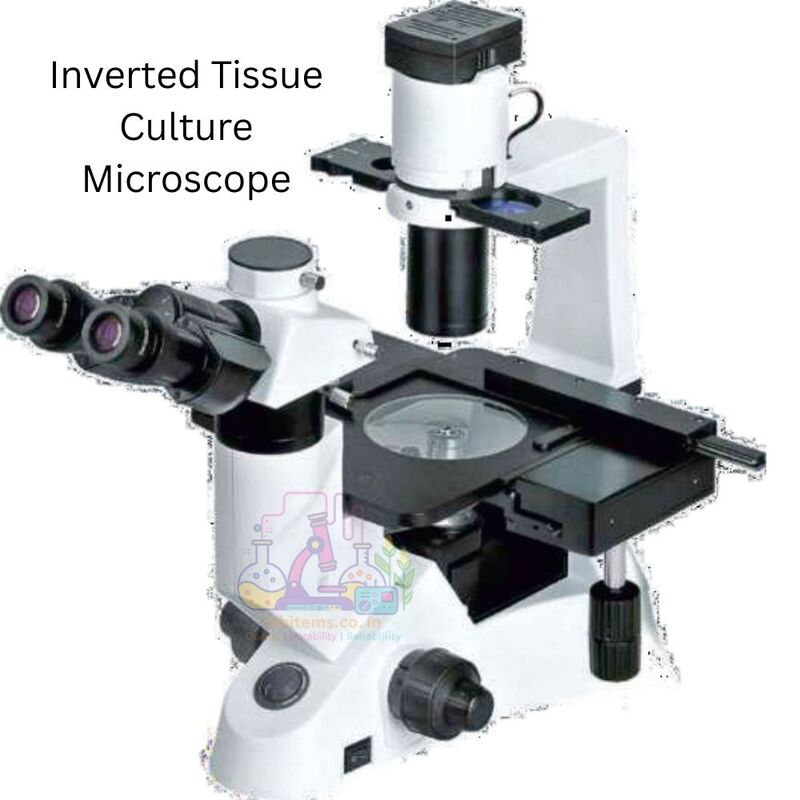

🔬 Inverted Tissue Culture Microscope TM-9
A high-quality inverted biological microscope designed for advanced cell culture observation, live-cell imaging, and contrast-enhanced research applications.
⭐ Key Features & Benefits
| Feature | Customer Benefit |
|---|
| Inverted Optical Design | Ideal for observing cells in culture dishes and flasks |
| Infinity Optical System | Superior image clarity, brightness, and contrast |
| Trinocular Viewing Head | Enables visual observation and camera imaging |
| Long Working Distance Objectives | Clear viewing through culture vessels |
| Infinity Plan Objectives | Flat, sharp images across the entire field |
| Standard Phase Contrast System | High-contrast imaging of transparent living cells |
| Center-Adjustable Annular Spot | Precise phase alignment for sharp images |
| Large Plane Stage | Accommodates various culture vessels |
| Co-Axial Coarse & Fine Focusing | Smooth and precise focus control |
| Fine Focus Resolution 0.002 mm | Accurate focusing for delicate specimens |
| Robust Mechanical Construction | Stable, vibration-free operation |
| Research-Grade Illumination | Reliable lighting for long observation sessions |
🔍 Technical Specifications
Optical & Viewing System
| Parameter | Specification |
|---|
| Microscope Type | Inverted Tissue Culture Microscope |
| Optical System | Infinity Optical System |
| Viewing Head | Binocular / Trinocular, inclined 30°, 360° rotatable |
| Interpupillary Distance | 48–75 mm |
| Eyepieces | EWF 10× / 22 mm, high eye-point |
Objectives & Phase Contrast
| Objective Type | Specification |
|---|
| Infinity Plan Achromatic Objectives | 4×/0.10, WD 18 mm |
| 10×/0.25, WD 10 mm |
| 20×/0.40, WD 6.1 mm |
| 40×/0.60, WD 2.6 mm |
| Infinity Plan Phase Objectives | PH 10×/0.25 |
| PH 20×/0.40 |
| PH 40×/0.60 |
| Cover Slip Thickness | 1.2 mm |
| Nosepiece | Inverse quintuple nosepiece |
Stage, Condenser & Focusing
| Component | Specification |
|---|
| Stage Type | Plane stage 160 × 250 mm |
| Phase Contrast Sliding Plate | 10×, 20×, 40× center adjustable |
| Condenser | Super long working distance condenser, NA 0.3, WD 72 mm |
| Maximum Culture Dish Height | Up to 150 mm (with condenser unloaded) |
| Centering Telescope | 30 mm |
| Focusing System | Co-axial coarse & fine focus |
| Fine Focus Scale | 0.002 mm |
Illumination & Filters
| Parameter | Specification |
|---|
| Light Source | Halogen bulb 6V / 30W |
| Filters | Blue, green, yellow & frosted glass |
🧪 Applications & Usage Areas
| Application Area | Usage |
|---|
| Cell Culture Laboratories | Live cell morphology and growth observation |
| Tissue Culture Facilities | Routine and advanced culture examination |
| IVF & Reproductive Labs | Embryo and cell monitoring |
| Biotechnology Research | Transparent specimen observation |
| Pharmaceutical R&D | Cell response and drug testing |
| Academic & Medical Institutes | Teaching and research applications |
📦 Packaging & Delivery
| Packaging Type | Details |
|---|
| Standard Packaging | Inner Thermocol / Styrofoam Packing |
| Outer Packaging | Strong cardboard box |
🎯 Why Choose Inverted Tissue Culture Microscope TM-9
| Reason | Advantage |
|---|
| Advanced Inverted Design | Optimized for live cell observation |
| Infinity Optics | High-quality, bright, and flat images |
| Phase Contrast Ready | Ideal for transparent specimens |
| Large Working Distance | Supports various culture vessels |
| Precision Focusing | Safe and accurate focusing |
| Research-Grade Build | Designed for continuous lab use |
