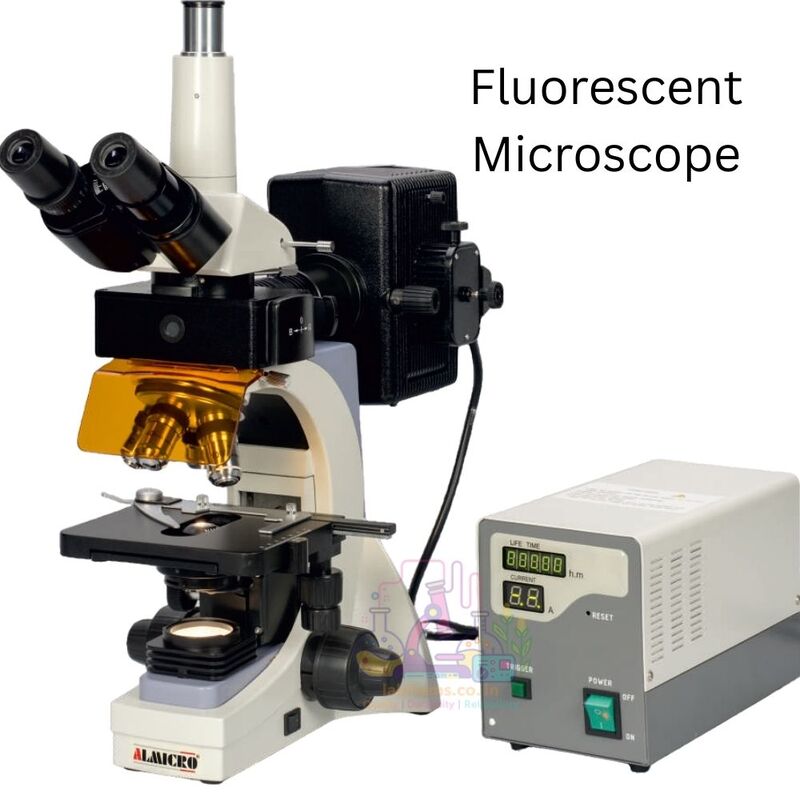

🔬 Fluorescent Microscope AFM-100
A high-performance fluorescence microscope engineered for advanced biological research, immunofluorescence, and disease diagnostics.
⭐ Key Features & Benefits
| Feature | Customer Benefit |
|---|
| High-Resolution Fluorescence Optics | Delivers sharp, high-contrast fluorescent images |
| Infinity Optical System | Superior color correction and optical accuracy |
| Advanced Lamp Housing | Prevents light leakage and improves safety |
| Trinocular Viewing Head | Enables simultaneous visual observation and camera imaging |
| Long Working Distance Objectives | Ideal for thick specimens and cell cultures |
| Dedicated Fluorescence Filter Sets | Accurate excitation and emission control |
| Mercury Lamp Fluorescence System | High-intensity illumination for fluorescence |
| Multi-Fluorophore Support | Suitable for FITC, TRITC, UV and Blue excitation |
| Precision Mechanical Stage | Stable specimen positioning during imaging |
| Co-Axial Coarse & Fine Focusing | Smooth, precise focusing for critical observations |
| Barrier-Resistant Power Supply | Protects user from UV exposure |
| Immunofluorescence Ready | Optimized for diagnostic and biomedical research |
🔍 Technical Specifications
| Parameter | Specification |
|---|
| Optical System | Infinite Optical System |
| Viewing Head | Trinocular, inclined at 30°, IPD 48–75 mm |
| Eyepieces | Extra wide-field EWF 10× / 20 mm, high eye-point |
| Nosepiece | Inverse quadruple nosepiece |
| Objectives | Infinity Plan Achromatic 4×/0.10, 10×/0.25, 20×/0.65, 40×/1.25 |
| Condenser | NA 1.25, rack & pinion adjustable |
| Centering Telescope | 30 mm |
| Mechanical Stage | Double-layer, 210 × 140 mm |
| Stage Travel Range | 75 × 50 mm |
| Focusing System | Co-axial coarse & fine focus |
| Fine Focus Resolution | 2 µm |
| Light Source (Brightfield) | Halogen 6V / 20W |
| Filters | Blue & frosted glass filters |
| Immersion Oil | Fluorescence-free oil |
🌈 Reflected Fluorescence System
| Fluorescence Mode | Excitation Wavelength |
|---|
| Blue Fluorescence (System B) | 420–485 nm |
| Green Fluorescence (System G) | 460–550 nm |
| UV Fluorescence | 330–400 nm |
Light Source:
🔧 Fluorescence Attachment & Filters
| Component | Details |
|---|
| Fluorescence Attachment | Reflected light fluorescence system |
| Exciter Filters | Blue, Green |
| Ordinary Light System | Integrated |
| Protection | UV-resistant barrier power supply |
| Centering Telescope | 30 mm |
🧪 Applications & Usage Areas
| Application Area | Usage |
|---|
| Biomedical Research | Cellular & molecular imaging |
| Immunofluorescence Diagnostics | Disease detection & analysis |
| Pathology Laboratories | Fluorescent tissue examination |
| Medical Research Institutes | Advanced fluorescence studies |
| Pharmaceutical R&D | Drug interaction & cell response |
| Academic Research Labs | Teaching & advanced experiments |
📦 Packaging & Delivery
| Item | Details |
|---|
| Standard Packaging | Inner Thermocol / Styrofoam + Outer Carton |
| Accessories Packed Separately | Lamp house & power supply |
🎯 Why Choose Fluorescent Microscope AFM-100
| Reason | Advantage |
|---|
| Dedicated Fluorescence Platform | Purpose-built for fluorescent imaging |
| Multi-Filter Capability | Supports multiple fluorophores |
| High-Intensity Mercury Lamp | Bright, stable fluorescence |
| Infinity Optical Accuracy | Reliable and repeatable results |
| Diagnostic-Grade Construction | Suitable for clinical & research use |
| Advanced Safety Design | UV protection for users |
