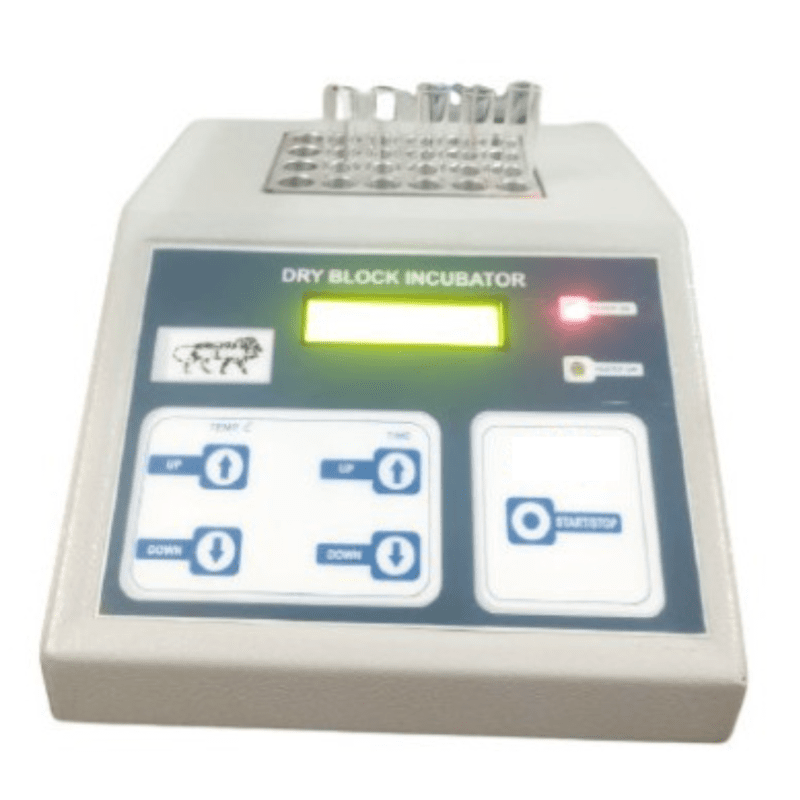

Dry Bath for general laboratory use
Digital Dry Bath Incubator – Precision Temperature Control for Laboratory Applications
The Digital Dry Bath Heating Block Incubator is a microprocessor-based temperature-controlled laboratory instrument designed for precise heating of samples in microtubes. Featuring a 5 mL × 24 tube aluminum heating block, the unit provides uniform temperature distribution for consistent experimental results.
The system operates within a temperature range of 30°C to 80°C with ±0.5°C accuracy and allows programmable timer settings up to 250 minutes. The instrument includes a 16×2 LCD display, membrane keypad, LED heating indicators, and advanced safety protections including over-temperature alarm and sensor failure detection.
Block Specifications:
| Parameter | Specification |
|---|---|
| Tube Capacity | 5 mL Tubes × 24 Wells |
| Hole Diameter | 12.6 ± 0.3 mm |
| Hole Depth | 37 ± 1 mm |
| Block Material | Aluminum Heating Block |
| Block Dimension | L: 97 mm × W: 40 mm |
Technical Specifications:
| Parameter | Specification |
|---|---|
| Temperature Range | 30°C – 80°C |
| Temperature Accuracy | ±0.5°C |
| Display | 16 × 2 LCD |
| Timer Range | 0 – 250 Minutes |
| Temperature Sensor | Solid State Electronic Sensor |
| Power Consumption | 75 Watts |
| Power Supply | 230 V AC / 50 Hz |
| Cabinet Material | Powder Coated Mild Steel |
| External Dimensions | H: 125 mm × W: 185 mm × L: 220 mm |
With low power consumption (75W) and compact design, this dry bath incubator is an ideal replacement for traditional water baths, offering clean, efficient, and maintenance-free heating.
Customize
Product Details
The Digital Dry Bath Heating Block Incubator is a reliable and compact laboratory heating device designed for precise temperature control and sample incubation. This instrument uses microprocessor-based temperature regulation technology, ensuring high accuracy, stability, and repeatability for laboratory experiments.
Unlike traditional water baths, the dry bath incubator eliminates the need for water, reducing maintenance and improving laboratory safety. The aluminum heating block provides uniform heat distribution, allowing multiple samples to be incubated simultaneously.
The instrument features a user-friendly interface with a 16×2 LCD display and membrane keypad, enabling easy setting of temperature and timer parameters. With programmable temperature control from 30°C to 80°C, it supports a wide range of biological, chemical, and clinical laboratory applications.
Advanced safety features such as over-temperature protection, sensor failure detection, and alarm system ensure reliable and safe operation during continuous use.
Key Features
• Microprocessor-Based Control System – Accurate and stable temperature regulation
• 16×2 LCD Display – Clear display for temperature and timer monitoring
• Membrane Keypad Interface – Durable and easy-to-use control panel
• Precise Temperature Control – Adjustable from 30°C to 80°C
• High Temperature Accuracy – Stability within ±0.5°C
• Programmable Timer – Adjustable 0–250 minutes with memory retention
• LED Heating Indicator – Visual indication of heating and timer status
• Advanced Safety Protection – Over-temperature alarm and sensor failure detection
• Low Power Consumption – Energy efficient operation (75W)
• Compact Powder-Coated Metal Cabinet – Durable and laboratory-friendly design
Applications
• Molecular biology laboratories
• Clinical diagnostic laboratories
• DNA / RNA sample incubation
• Enzyme reactions and sample preparation
• Microbiology research
• Pharmaceutical laboratories
• Chemical sample heating and incubation
Advantages Over Water Bath
• No water required – cleaner operation
• Faster heating response
• Lower power consumption
• Reduced maintenance
• Compact and portable design
