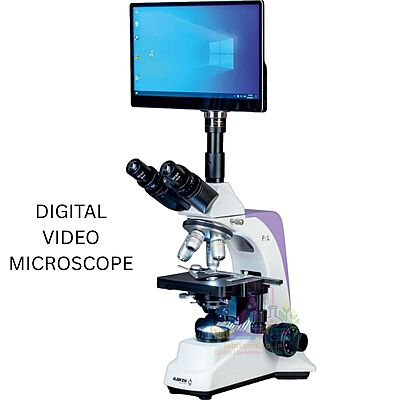

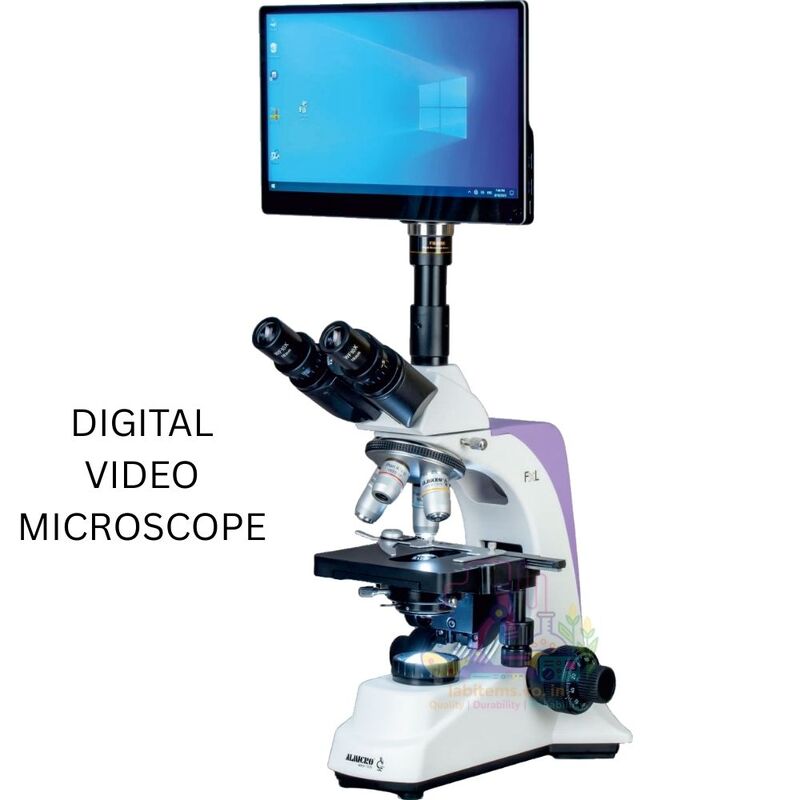

DIGITAL VIDEO MICROSCOPE – DVM-04 Ultra
The DVM-04 Ultra Digital Video Microscope is a high-end research and documentation microscope integrating precision optical microscopy with a Windows-based digital tablet system. Designed for advanced research, teaching, diagnostics, and quality inspection, it delivers exceptional imaging, accurate measurement, and powerful data handling.
Equipped with SP Plan Achromatic objectives, trinocular articulated head, Windows tablet interface, advanced measurement software, and USB/Wi-Fi connectivity, the DVM-04 Ultra is ideal for medical colleges, research laboratories, pathology labs, and industrial inspection.
Key Features & Benefits
| Feature | Benefit |
|---|
| Windows-Based Tablet Interface | Full PC-like operation with advanced software control |
| High-Resolution Digital Imaging | Sharp image capture and video recording |
| SP Plan Achromatic Objectives | Superior flat-field image quality |
| Articulated Trinocular Viewing Head | Ergonomic viewing with camera & eyepiece use |
| Advanced Measurement Software | Precise dimensional and geometric analysis |
| USB, HDMI & Wi-Fi Connectivity | Easy data transfer and external display |
| Co-Axial Precision Focusing | Smooth and accurate focusing for research work |
| Large Mechanical Stage | Stable sample handling during analysis |
Optical Specifications
| Parameter | Specification |
|---|
| Viewing Head | Trinocular, side-entry, 30° inclined, 360° rotatable |
| Interpupillary Distance | 50 – 75 mm |
| Diopter Adjustment | ±5 on left tube |
| Eyepiece | Wide Field WF 10× / 20 mm |
| Objectives | SP Plan Achromatic 4×, 10×, 40×, 100× (oil) |
| Nosepiece | Reverse quadruple nosepiece (inward facing) |
Mechanical & Focusing System
| Parameter | Specification |
|---|
| Focusing | Co-axial coarse & fine focusing |
| Fine Focus Precision | 0.002 mm |
| Coarse Stroke | 37.7 mm with adjustable rack stop |
| Friction Control | Adjustable coarse focus tension |
| Stage Type | Double-layer mechanical stage |
| Stage Size | 140 mm × 140 mm |
| Movement Range | 50 mm × 75 mm |
Illumination & Power System
| Parameter | Specification |
|---|
| Light Source | 3W LED illumination |
| Brightness Control | Adjustable intensity |
| Power Adapter | 110–240V AC |
| Power Input | DC 12V / 2A |
Windows Tablet Specifications
| Parameter | Specification |
|---|
| Screen Size | 11″ |
| Camera Sensor Size | 1/2.3″ |
| Effective Pixels | 16 Million Pixels |
| Resolution | 1920 × 1080 @ 30 FPS |
| Output Interfaces | USB 2.0, HDMI, TF Card, Wi-Fi |
| Pixel Size | 1.335 × 1.335 μm |
| Power | DC 12V / 2A |
Software Features
| Capability | Details |
|---|
| User Interface | Windows-based, mouse & touch friendly |
| Measurement Tools | Length, angle, radius, circle, polygon, curve |
| Marking Tools | Lines, points, coordinates, text annotation |
| Geometry Analysis | Fixed circles, concentric circles, multi-point shapes |
| Image Capture | Supports up to 16MP photos |
| Video Recording | Supports Full HD 1080P video |
| Measurement Software | S-EYE Measurement Software |
Applications
| Field | Usage |
|---|
| Research Laboratories | Advanced imaging & analysis |
| Medical Colleges | Teaching pathology & histology |
| Diagnostic Labs | Digital documentation & reporting |
| Industrial Inspection | Measurement & quality control |
| Training Institutes | Demonstration & learning |
Packaging & Delivery
| Item | Details |
|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Corrugated cardboard box |
| Shipping | Secure for long-distance transport |
