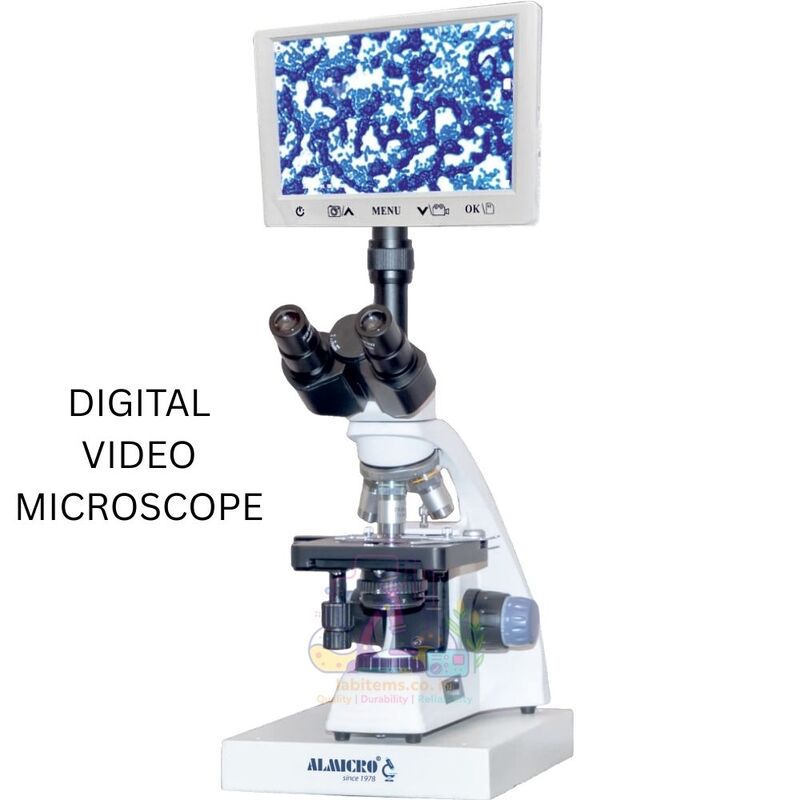

DIGITAL VIDEO MICROSCOPE – DVM-01 Plus
The DVM-01 Plus Digital Video Microscope is a research-grade optical microscope integrated with a 7” LED digital display, designed for real-time viewing, documentation, and analysis. This model combines traditional compound microscopy with digital imaging, allowing users to observe specimens directly on-screen without continuous eyepiece viewing.
Ideal for research laboratories, medical colleges, pathology labs, training institutes, and quality inspection, the DVM-01 Plus enhances productivity, reduces eye strain, and enables group demonstrations with ease.
Key Features & Benefits
| Feature | Benefit |
|---|
| 7” TFT LED Digital Display | Real-time specimen viewing without eyepiece strain |
| Integrated Digital Imaging | Ideal for teaching, documentation & demonstrations |
| Co-Axial Focusing System | Smooth and precise focusing for fine observations |
| Plan Achromatic Objectives | Sharp, flat-field image quality |
| Built-in Battery Backup | Ensures uninterrupted operation |
| Dual Viewing Option | Digital display + binocular eyepiece viewing |
| Mechanical Stage | Accurate and stable slide movement |
| Compact Research Design | Suitable for laboratories and institutions |
Optical Specifications
| Parameter | Specification |
|---|
| Tube Length | 160 mm |
| Viewing Head | Compensation-free binocular head, 30° inclined |
| Interpupillary Distance | 55 – 75 mm |
| Eyepiece (Ocular) | Line field of view 18 mm |
| Objectives | Plan Achromatic 4×, 10×, 40×, 100× |
| Nosepiece | Backward quadruple nosepiece |
| Condenser | Abbe Condenser NA 1.2 |
Mechanical & Focusing System
| Parameter | Specification |
|---|
| Focusing | Co-axial coarse and fine focusing |
| Fine Focus Precision | 0.004 mm |
| Focusing Range | 24 mm |
| Stage Type | Double layer mechanical stage |
| Stage Size | 132 mm × 142 mm |
| Movement Range | 75 mm × 40 mm |
Illumination & Power System
| Parameter | Specification |
|---|
| Light Source | Halogen bulb 6V / 20W or LED lamp 3W |
| Brightness Control | Adjustable illumination |
| Battery Backup | Inbuilt battery backup facility |
| Power Input | DC 12V / 230V AC |
Digital Display Specifications
| Parameter | Specification |
|---|
| Display Size | 7” TFT LED screen |
| Control | All functions controlled via remote |
| Valid Pixels | 3.0 Megapixels |
| Storage | SD card support |
| Software | Integrated image/video capture support |
Applications
| Field | Usage |
|---|
| Research Laboratories | Digital specimen observation & recording |
| Medical Colleges | Teaching pathology, histology & microbiology |
| Diagnostic Labs | Routine examination & reporting |
| Training Institutes | Group demonstrations |
| Quality Inspection | Visual documentation and analysis |
Packaging & Delivery
| Item | Details |
|---|
| Inner Packing | Thermocol / Styrofoam |
| Outer Packing | Corrugated cardboard box |
| Shipping | Secure packaging for transit |
