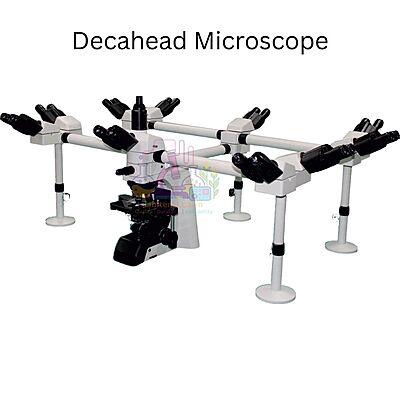

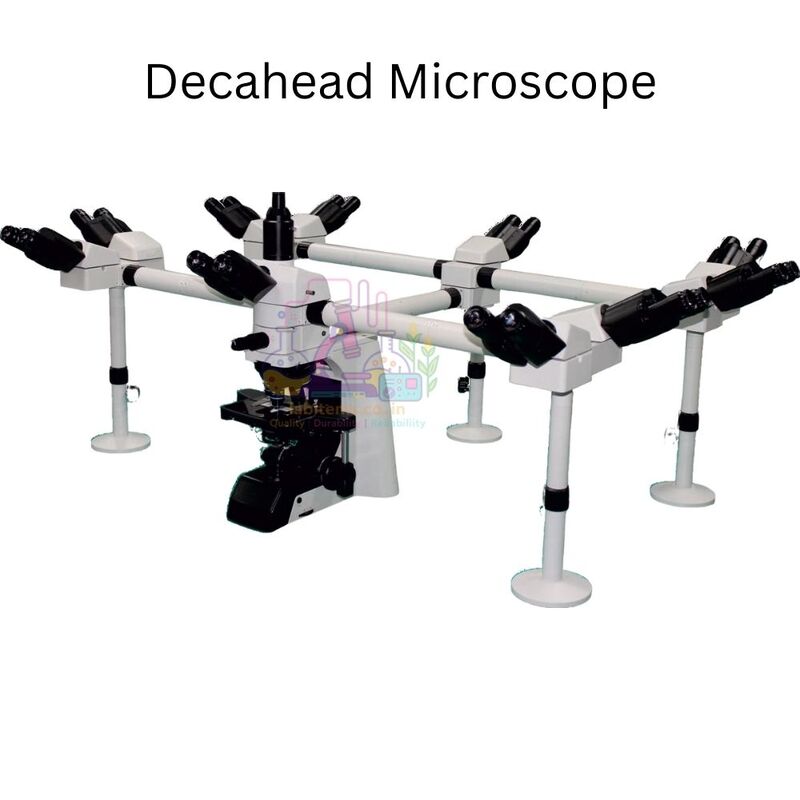

DECAHEAD MICROSCOPE – X-10
The Decahead Microscope X-10 is a high-performance multi-head teaching and demonstration microscope engineered for simultaneous observation by up to 10 users. Built on an infinity-corrected plan optical system, it delivers sharp, distortion-free images across all viewing heads, making it ideal for medical colleges, dental institutions, and advanced research training environments.
With a trinocular main head and nine sidetube binocular heads, the X-10 enables instructors and students to observe the same specimen in real time, ensuring uniform learning outcomes and efficient group instruction.
Key Features & Benefits
| Feature | Benefit |
|---|
| 10-Head Viewing System | Enables simultaneous observation for teaching and demonstrations |
| Infinity Corrected Plan Optics | Delivers high-resolution, flat-field images across all heads |
| Trinocular Main Head | Allows camera attachment for image capture and projection |
| Nine Sidetube Binocular Heads | Ensures identical viewing quality for all participants |
| Co-Axial Coarse & Fine Focusing | Precise and smooth focus control for detailed study |
| LED Cursor Pointer | Facilitates instructor-guided explanation of specimen details |
| Large Mechanical Stage | Stable and accurate specimen positioning |
| Rugged Multi-Arm Construction | Long-term stability in classroom and laboratory use |
Optical Specifications
| Parameter | Specification |
|---|
| Optical System | Infinity corrected plan optical system |
| Eyepieces | Wide Field EWF 10× / 22 mm |
| Objectives | Infinity Plan Objectives 4×, 10×, 40×, 100× |
| Nosepiece | Quadruple revolving nosepiece |
| Viewing Configuration | 1 Trinocular head + 9 Binocular sidetube heads |
| Head Inclination | 30° inclined for ergonomic viewing |
Mechanical & Focusing System
| Parameter | Specification |
|---|
| Focusing | Co-axial coarse and fine adjustment |
| Stage Type | Double-layer mechanical stage |
| Stage Size | 180 mm × 160 mm |
| Body Design | Heavy-duty multi-arm teaching structure |
| Stability | Individual pillar stands for each viewing station |
Illumination System
| Parameter | Specification |
|---|
| Light Source | Halogen lamp 12V / 100W |
| Brightness Control | Adjustable illumination intensity |
| Cursor Pointer | LED cursor pointer with adjustable brightness |
| Power Supply | 230V AC |
Applications
| Field | Usage |
|---|
| Medical Colleges | Pathology, histology & microbiology teaching |
| Dental Colleges | Oral pathology and dental research training |
| Research Institutions | Group specimen evaluation |
| Teaching Laboratories | Instructor-led multi-user demonstrations |
| Clinical Training | Collaborative diagnostic learning |
Packaging & Delivery
| Item | Details |
|---|
| Inner Packing | Thermocol / Styrofoam protective packing |
| Outer Packing | Heavy-duty corrugated carton |
| Shipping | Secure packing suitable for long-distance transport |
