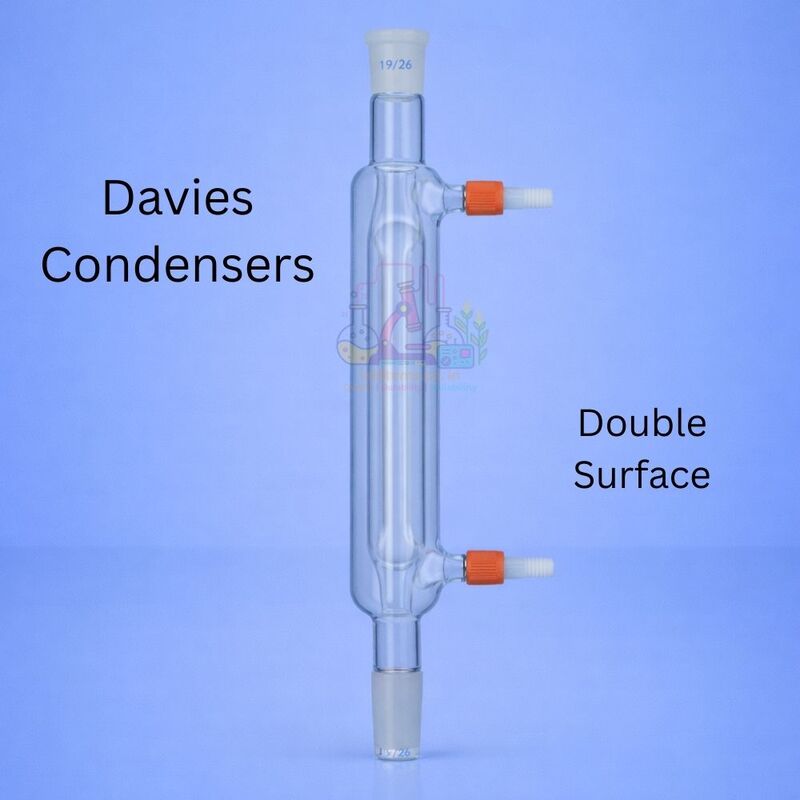

Davies Condensers - Double Surface
RELIGLAS Davies Condensers (Double Surface) — efficient water-cooled glass condensers for high-performance vapor condensation. Double surface increases cooling area, available in joint sizes 19/26 to 34/35, lengths 150 mm to 500 mm.
Customize
Product Details
Product Description
The RELIGLAS Davies condenser features a double surface (concentric tube) design, providing more than twice the cooling surface of a standard Liebig condenser. This makes it ideal for efficient condensation during distillation, reflux, and solvent recovery operations in laboratories handling large volumes or high-boiling-point compounds.
All-glass, heavy-duty borosilicate construction offers exceptional chemical and thermal durability, with B-series ground glass sockets/cones for secure, leak-tight assembly. Compatible with a wide range of laboratory setups in both teaching and research settings. Available with effective lengths from 150 mm up to 500 mm.
Specifications
- Material: Borosilicate/chemical-resistant glass
- Socket/cone sizes: 19/26, 24/29, 29/32, 34/35
- Effective lengths: 150, 200, 300, 400, 500 mm
- Double surface design for maximum cooling
- Reusable, autoclavable, and robust
Available Sizes & Variants
| Cat. No. | Socket | Cone | Effective Length (mm) |
|---|---|---|---|
| 03.391.01 | 19/26 | 19/26 | 150 |
| 03.391.04 | 19/26 | 19/26 | 200 |
| 03.391.05 | 19/26 | 19/26 | 300 |
| 03.391.08 | 24/29 | 24/29 | 200 |
| 03.391.12 | 29/32 | 29/32 | 200 |
| 03.391.16 | 24/29 | 24/29 | 300 |
| 03.391.17 | 24/29 | 24/29 | 400 |
| 03.391.19 | 34/35 | 34/35 | 500 |
Applications
- High-efficiency distillation, solvent condensation, and reflux setup
- Organic synthesis, sample recovery
- Teaching, academic, and research laboratories
- Large-volume or high-boiling-point chemical processing
Key Features
- Double surface/concentric tube maximizes cooling efficiency
- Multiple lengths and joint sizes for application flexibility
- Durable borosilicate build, easy to clean and reuse
- Reliable for demanding laboratory workflows
