Product Description

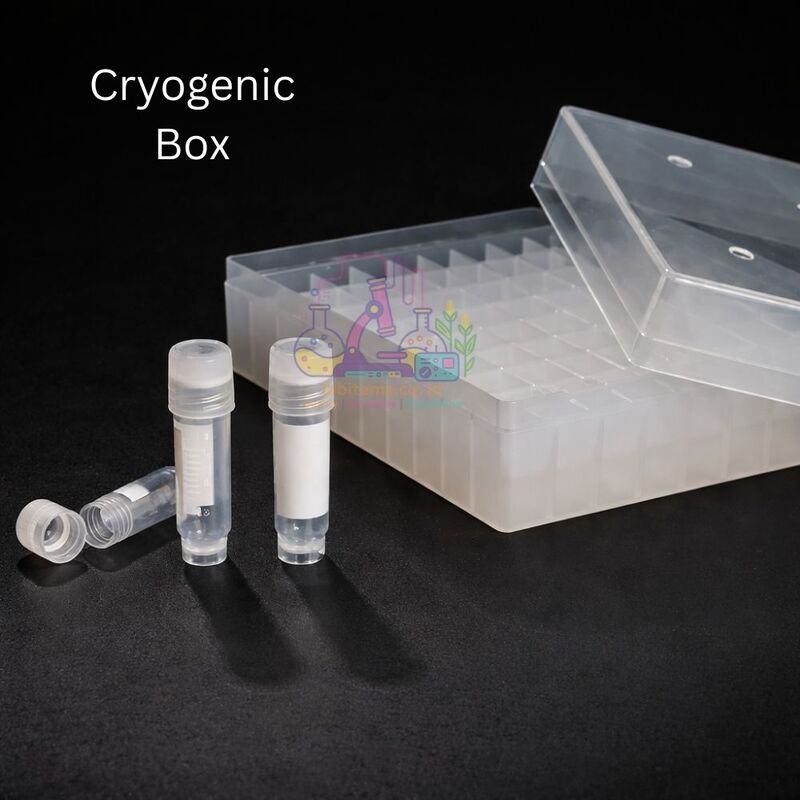

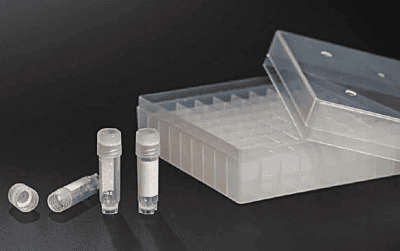

Our cryogenic boxes are made from highly transparent polypropylene (PP) material, allowing samples to be repeatedly frozen and thawed while remaining suitable for long-term storage. The transparent design enables easy visibility of stored samples without opening the box, facilitating efficient sample tracking and organization.

The 81-well cryogenic box is specifically designed to accommodate standard-size cryogenic vials and cryogenic racks. It is particularly suitable for storing 0.5 mL, 1 mL, 2 mL cryovials and 1.5 mL, 2.0 mL EP tubes. The precision-engineered construction ensures secure placement and easy retrieval of samples, making it ideal for biobanks, research laboratories, and clinical applications.

Specifications

• Material: Polypropylene (PP) - Highly transparent
• Well Capacity: 81-Well
• External Dimensions (L*W*H): 128.5*128.5*52 mm
• Inner Hole Dimensions: 12.9*12.9 mm
• Box Color: White
• Temperature Tolerance Range: -80°C to +100°C
• Chemical Resistance: Resistant to alcohol and mild organic solvents
• Compatible Storage Formats: Standard-size cryogenic vials and cryogenic racks

Compatible Sample Types

• 0.5 mL cryovials
• 1 mL cryovials
• 2 mL cryovials
• 1.5 mL EP tubes
• 2.0 mL EP tubes
• Standard cryogenic racks

Applications

• Biobank sample organization and storage
• Research laboratory cryogenic storage
• Biological sample preservation (cells, tissues, serum)
• DNA and RNA sample archival
• Vaccine and pharmaceutical storage
• Clinical laboratory sample management
• Long-term cryogenic storage at -80°C and below
• Ultra-low freezer organization
• Liquid nitrogen storage system integration

Key Features

• High Transparency: Crystal-clear polypropylene material allows visual inspection of stored samples without opening
• Extreme Temperature Range: Maintains structural integrity from -80°C to +100°C for versatile storage applications
• Wide Temperature Cycling: Samples can be repeatedly frozen and thawed without compromising box integrity
• Chemical Compatibility: Resistant to alcohol and mild organic solvents for enhanced durability
• Large Capacity: 81-well design provides organized storage for multiple samples in a compact footprint
• Precision Dimensions: Inner holes of 12.9*12.9 mm ensure proper fit for standard cryogenic vials and EP tubes
• Easy Organization: Compatible with standard cryogenic racks for systematic sample management
• Compact Design: External dimensions of 128.5*128.5*52 mm optimize storage in ultra-low freezers

Variants

81-Well Cryogenic Storage Box
