Compound Student Microscope - BM-3 - ALMICRO

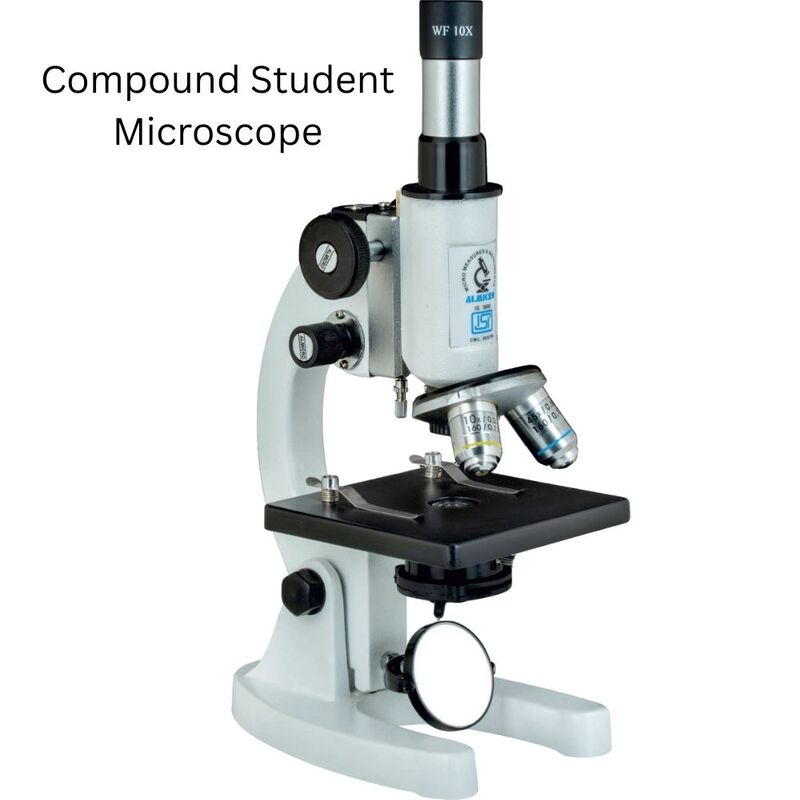

Compound Student Microscope BM-3 - ALMICRO

Non-returnable
₹5,200.00 ₹6,000.00

The BM-3 Compound Student Microscope is a heavy-duty, die-cast monocular microscope designed for regular school and college laboratory use. Compared to the BM-2, BM-3 offers a stronger pressure die-cast body, inclination up to 90°, and improved long-term durability for frequent handling. While both models provide achromatic 10× and 40× objectives and an Abbe condenser (NA 1.25), the BM-3 stands out for its enhanced mechanical stability and classroom robustness, making it better suited for institutions requiring a more rugged student microscope than standard entry-level models.

Choose Quantity
+ Add to Cart
Product Details
Specifications

🔬 Compound Student Microscope BM-3 – Key Features & Benefits

FeatureCustomer Benefit
Heavy Pressure Die-Cast Monocular BodyExcellent durability and long service life
Monocular Viewing Head Inclined up to 90°Comfortable viewing posture for students
Wide-Field Eyepiece (10× / optional 15×)Clear image with wider field of view
Triple Revolving Nosepiece with Click StopsFast and accurate objective selection
Achromatic Objectives (10× & 40×)Sharp, color-corrected images for learning
Rack & Pinion Coarse FocusingSmooth vertical tube movement
Fine Focusing Screw MechanismPrecise focus for detailed observation
Abbe Condenser (NA 1.25)Efficient light concentration for clear imaging
Iris Diaphragm with Swing-Out Filter HolderAdjustable contrast and illumination control
Plane Stage with SS ClipsSecure slide holding during observation
Arc-Reflector IlluminationUses natural light, no electricity required
Heavy & Stable BaseVibration-free operation in classrooms

🧪 Applications & Usage Areas

Application AreaUsage
School LaboratoriesBiology and science practical classes
Colleges & UniversitiesUndergraduate life science courses
Student Training LabsHands-on microscopy learning
Educational InstitutionsRoutine slide observation
Science Learning CentersDemonstrations and experiments
Entry-Level ResearchBasic specimen examination

📦 What’s Included in the Box

ItemDescription
Compound Student Microscope BM-3Fully assembled monocular microscope
EyepieceWide-field 10× (optional 15×)
ObjectivesAchromatic 10× and 40×
NosepieceTriple revolving with click stops
StagePlane stage with stainless steel clips
Condenser UnitAbbe condenser with iris diaphragm
IlluminationArc-reflector for natural light
Inner PackingThermocol / styrofoam protection
Outer BoxStrong cardboard carton
Optional StorageWooden cabinet with lock & key (on demand)

🛠 Build Quality & Construction

ComponentConstruction Detail
BodyHeavy-duty pressure die-cast metal
StandRigid and well-balanced base
Focusing SystemRack & pinion with fine adjustment
Optical SystemHigh-efficiency light utilization
Stage AssemblyCorrosion-resistant metal stage
FinishLaboratory-grade durable coating

🎯 Why Choose Compound Student Microscope BM-3

ReasonAdvantage
Designed for Schools & CollegesMeets academic curriculum needs
Student-Friendly OperationSimple controls for beginners
Accurate Optical PerformanceClear images for effective learning
No Power RequirementSuitable for any classroom
Long-Lasting ConstructionIdeal for daily institutional use
Cost-Effective SolutionExcellent value for education
Microscope
  • Eye Piece Type
    Monocular
  • Viewing Head
    Inclined up to 90°
  • Eye Piece
    Wide-field 10X Eye-piece or set of 10x & 15x Huygenian Eye-pieces
  • Nosepiece
    Triple revolving nosepiece with positive click stops
  • Stage
    High-quality SS stage clips
  • Focusing
    Coarse & Fine Focusing
  • Condenser
    High-performance ABBE condenser
  • Illumination
    ARC reflector system
  • Objective Type
    Achromatic
  • Objectives
    10X and 40X
  • Certification
    ISI
  • Power
    Not Required
  • Battery
    Not Applicable
Attachments
  • Packaging
    Securely packed with inner thermocol/styrofoam protection and a sturdy outer cardboard box to ensure safe transportation
