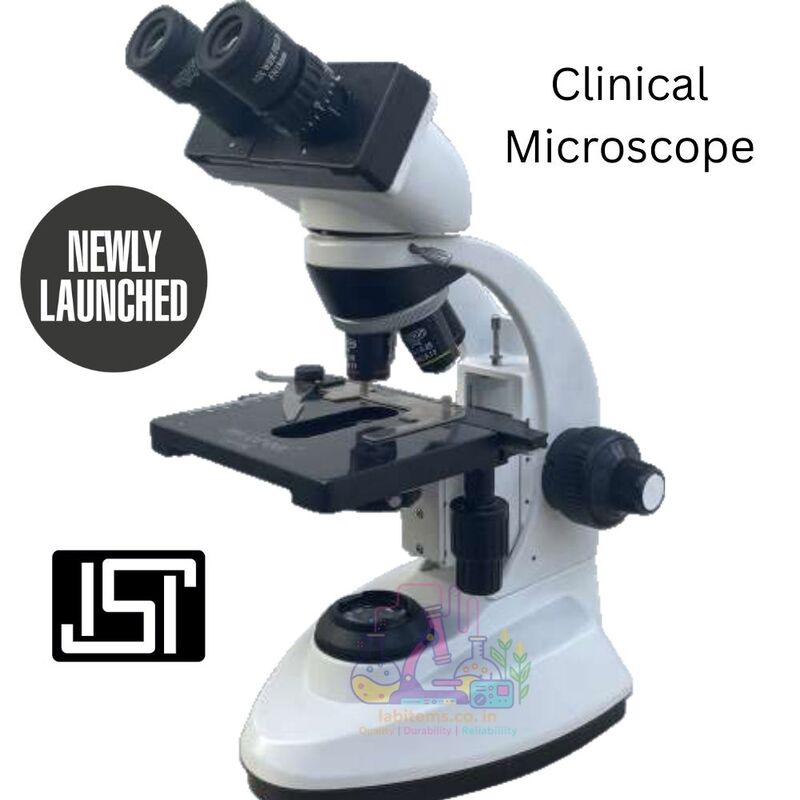

The Clinical Microscope Bino CXL advances beyond the Bino Mini by introducing a fully co-axial focusing system with focus lock and torque adjustment, enabling smoother, more controlled fine focusing during continuous clinical use. While the Bino Mini emphasizes safety with a focus stopper, the Bino CXL prioritizes long-session precision and stability for high-throughput laboratory workflows.
It upgrades the nosepiece to a reversed inward ball-bearing quadruple turret, allowing quicker, more stable objective changes and better balance during oil immersion work. The ball-bearing low-drive coaxial mechanical stage further enhances slide movement accuracy compared to the earlier low-drive stage, reducing operator fatigue in repetitive diagnostic routines.
Maintaining the bright 3W LED illumination with intensity control and a focusable Abbe condenser (NA 1.25), the Bino CXL delivers crisp, high-contrast images through 4×, 10×, 40× (S/L), and 100× (S/L oil) achromatic objectives with wider WF10×/18 mm eyepieces for an expanded field of view.
With multiple head options (monocular, binocular, or trinocular) and upgraded ergonomic and mechanical controls, the Bino CXL is purpose-built for clinical and pathology laboratories that require faster operation, finer control, and enhanced viewing comfort compared to the Bino Mini.
