Microlit

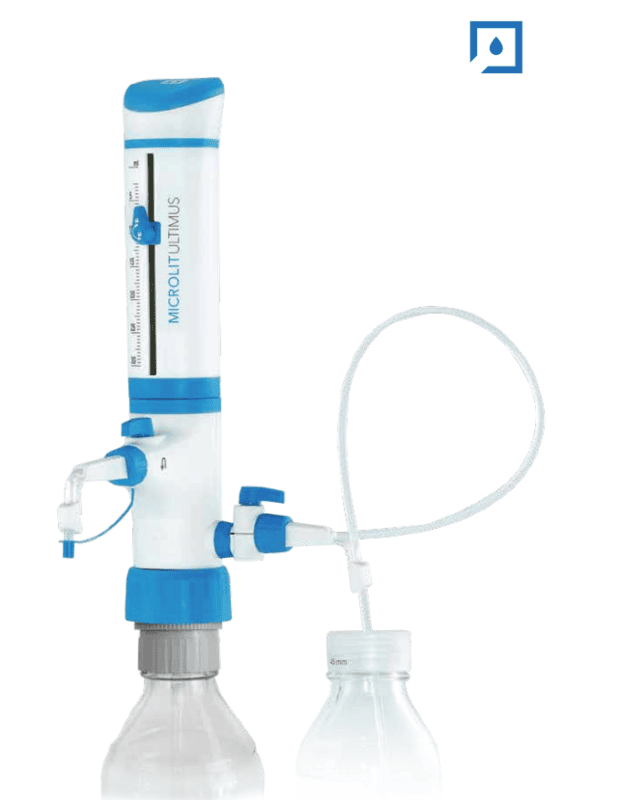

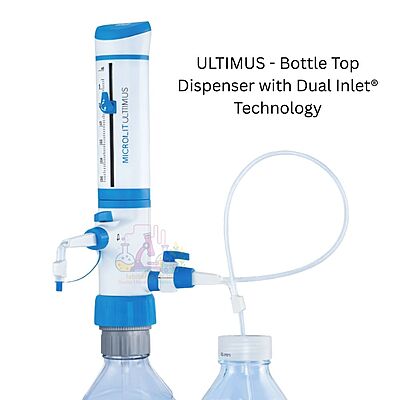

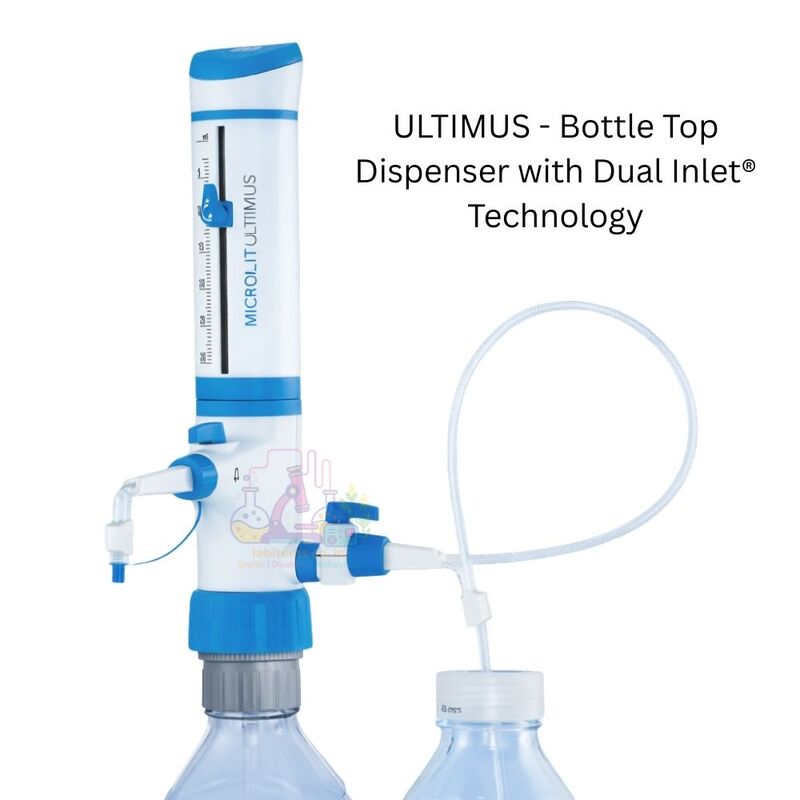

ULTIMUS - Bottle Top Dispenser with Dual Inlet® Technology
MICROLIT ULTIMUS is a Bottle Top Dispenser (BTD) that works on Dual Inlet Technology®. It offers a sophisticated blend of features and functionality, along with four modes of operation.
Available in Six Unique Volume Ranges
MICROLIT ULTIMUS is a Bottle Top Dispenser (BTD) that offers a sophisticated blend of features and functionality. Built by our in-house team of product design engineers, it uses Dual Inlet®, an award- winning technology patented in India, the EU and the US.
It offers 4 liquid handling modes – rinsing, dilution, refilling & purging without dismounting the dispenser.
MICROLIT ULTIMUS also features two product innovations: EasyKnob® and FlexiNozzle® that enhance its ease of use and flexibility.
Designed with ergonomics and intuitive handling in mind, it exhibits excellent chemical compatibility and helps in achieving precision with reliability in practical laboratory environments.
₹21,470.00
Volume:
Customize
Choose Quantity:
Share:
Product Details
Modes of Operation
Standard Dispensing: Knob A – Open, Knob B – Closed. In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
Purging: Knob A – Closed, Knob B – Closed. In this mode, the liquid is re-circulated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.
Dilution/Rinsing/Second Liquid Dispensing: Knob A – Open, Knob B – Open. In this mode, the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or dilute the reagent within the receiver.
Bottle Refilling: Knob A – Closed, Knob B – Open. In this mode, the liquid from a second source can be used to refill the bottle without dismounting the dispenser.

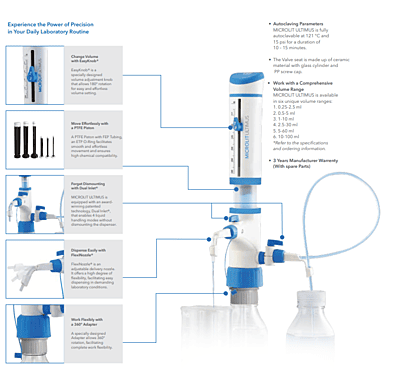

Change Volume with EasyKnob®
EasyKnob® is a specially designed volume adjustment knob that allows 180° rotation for easy and effortless volume setting.
Move Effortlessly with a PTFE Piston
The instrument is equipped with a PTFE Piston with an ETP O-Ring. It facilitates smooth and effortless movement and ensures high chemical compatibility.
Forget Dismounting with Dual Inlet®
Dual Inlet®, an award winning patented technology enables 4 liquid handling modes without dismounting the dispenser.
Dispense Easily with FlexiNozzle®
MICROLIT ULTIMUS comes with FlexiNozzle® – an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions.
Work Flexibly with a 360° Adapter
A specially designed Adapter allows 360° rotation, facilitating complete work flexibility.
Assured Quality with ISO 8655 Conformed Calibration
MICROLIT ULTIMUS is calibrated in an ISO 17025 accredited laboratory according to ISO 8655 standards. A calibration certificate is included inside the product package. A calibration tool is also included for quick in-lab recalibration.
Work with a Comprehensive Volume Range
Autoclaving Parameters MICROLIT ULTIMUS is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
Models & Volume Ranges
Model - ULT-2.5 - Range - 0.25 - 2.5 ml
Model - ULT-5 - Range - 0.5 - 5 ml
Model - ULT-10 - Range - 1 - 10 ml
Model - ULT-30 - Range - 2.5 - 30 ml
Model - ULT-60 - Range - 5 - 60 ml
Autoclaving Parameters MICROLIT ULTIMUS is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
Accessories
Adapters
The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 38 mm, 40 mm and 45 mm.
Extendable Tube
A Telescoping Tube that can be adjusted according to a variety of bottle sizes is provided as an inside-the-box accessory.
