Religlas

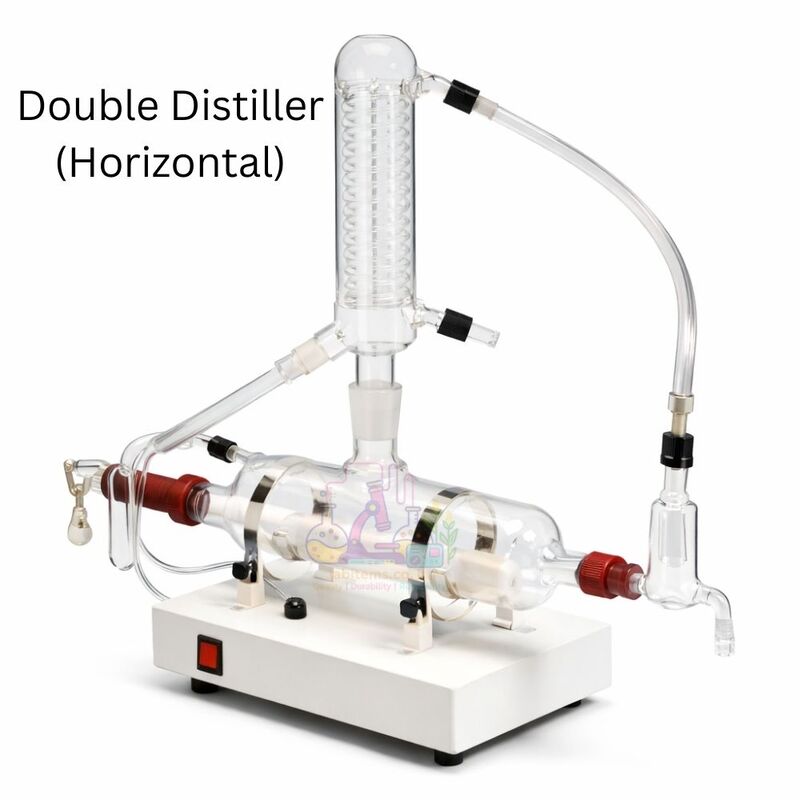

All Quartz Double Distillation (Horizontal Model)
All Quartz Double Distillation (Horizontal Model) – Features replaceable silica heater, rust-free powder-coated stand, recirculating condenser cooling, safety switches, pyrogen-free double distilled water (1.5–4 L/hr output).
Non-returnable
₹165,000.00
Output Ltr/Hr. (Approx.):
Customize
Choose Quantity:
Share:
Product Details
The All Quartz Double Distillation Horizontal Model delivers ultra-pure, pyrogen-free double distilled water for laboratory applications. It includes a horizontal quartz jacket with a removable silica heater for easy cleaning, and efficient distillate temperature control (25–45°C) via an optimized condenser. The rust-resistant, powder-coated stand supports reliable, long-term use, and the innovative recirculating cooling system minimizes energy waste. For convenience and durability, screw-threaded connectors simplify installation and plumbing, while the replaceable constant level device aids quick maintenance. Built-in safety features include a gate valve (to conserve cooling water during power loss), a flow switch (automatic power shutoff in case of cooling water failure), and a temperature switch (to safeguard glass components if water falls below safe levels). Outputs range from 1.5 to 4 litres per hour at low conductivity (0.1–0.5 µS/cm), with minimal organic matter or silica (<0.01 mg/ltr), ensuring suitability for sensitive laboratory tasks. Optional accessories like flow switch, water softener, and reverse osmosis unit are also available.
Water Quality Parameters
| Parameter | Values |
| Specific Conductivity | 0.1 - 0.5 µS/cm |
| Biological Activity | Pyrogen free |
| pH | 6.9 - 7 |
| Organic Matter | Nil |
| Total Solids | 0.1 mg/ltr |
| Silica | <0.01 mg/ltr |
Optional Accessories :
LI - 05.691.17 Flow Switch : In-built safety feature for the equipment. Shuts off he power supply in case of cooling water supply failure - INR 22000.00
LI - 05.695.01 Water Softner : to enhance life of Water Still (Recommended) - INR 17500.00
LI - 05.695.03 Reverse Osmosis Unit 5 stage purification (for removal of 80-90% salts) Recommended where the salts are more in raw water. - INR 36000.00
