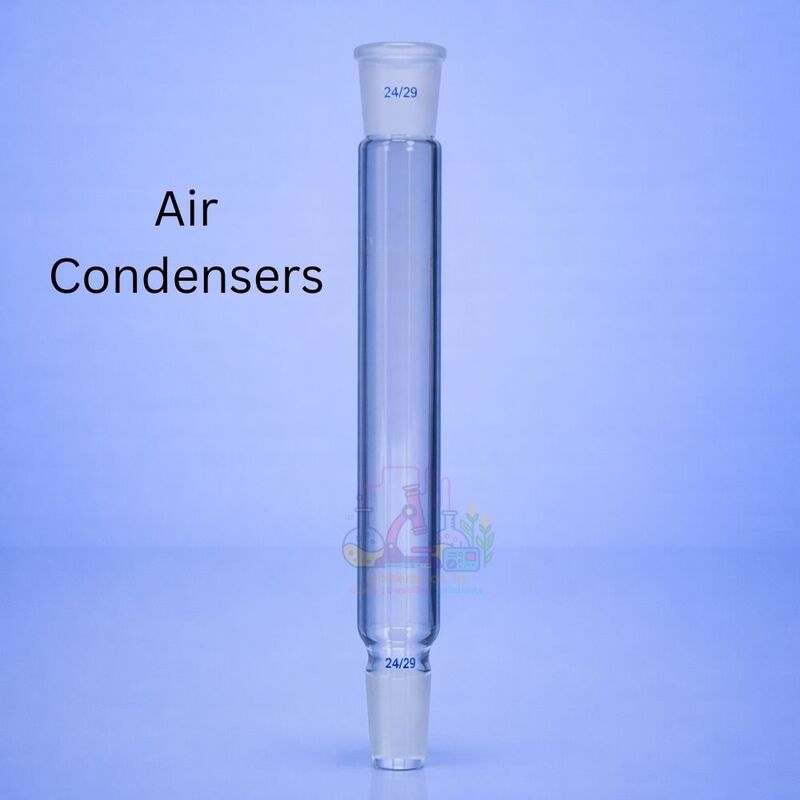

Air Condensers
RELIGLAS Air Condensers — simple, low-cost glassware for cooling vapors or gases without coolant. Multiple socket/cone options, available in effective lengths from 200 mm to 750 mm. Ideal for distillation or vapor condensation in labs.
Customize
Product Details
Product Description
RELIGLAS air condensers provide efficient, waterless cooling for laboratory distillation, reflux, and vapor condensation. The design utilizes room air to condense vapors, making them perfect for small-scale operations, green chemistry, or where coolant supply is impractical.
These all-glass condensers feature ground glass socket and cone joints in standard B-series sizes for secure, leak-resistant connections with other lab glassware. Choose among several effective lengths (200 mm to 750 mm) to match your setup’s volume and cooling need. Reliable, easy to clean, and safe for a wide range of routine and teaching/lab processes.
Specifications
- Material: Borosilicate/chemical-resistant glass
- Socket options: 14/23, 19/26, 24/29 (see table)
- Cone options: 14/23, 19/26, 24/29
- Effective lengths: 200, 250, 400, 500, 750 mm
- Reusable and autoclavable
Available Sizes & Variants
| Cat. No. | Socket | Cone | Effective Length (mm) |
|---|---|---|---|
| 03.375.01 | 14/23 | 14/23 | 200 |
| 03.375.04 | 19/26 | 19/26 | 200 |
| 03.375.08 | 24/29 | 24/29 | 250 |
| 03.375.16 | 19/26 | 19/26 | 400 |
| 03.375.20 | 24/29 | 24/29 | 500 |
| 03.375.24 | — | 19/26 | 750 |
| 03.375.28 | — | 24/29 | 750 |
Applications
- Waterless cooling for distillation, reflux, and synthesis
- Educational and demonstration labs
- Green chemistry and low-resource settings
- Replacement or supplement to water jacket condensers
Key Features
- No need for external coolant—air cooled
- Multiple effective lengths for optimum condensation
- Compatible with standard glassware joints
- Reusable, autoclavable, chemically resistant
