Mechanical Aspirator LIA06

Mechanical Aspirator LIA06

Non-returnable
₹14,956.00

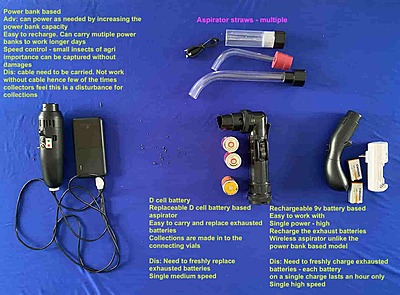

Mechanical pooter or Aspirator Highlights (a) Less cumbersome and highly convenient (b) Less tiring (c) Avoid swallowing of harmful chemicals and dust present in unknown surfaces (d) Clean way of sample collection (e) Very very useful in difficult reach areas and unhygienic walls or surfaces. This old aspirator has several limitations which are addressed in our newly introduced Mechanical Aspirator that purely runs on Power Bank with several collection straws and speed control for damage free collections. Working Video
Choose Quantity
+ Add to Cart
Product Details
Specifications

Description:

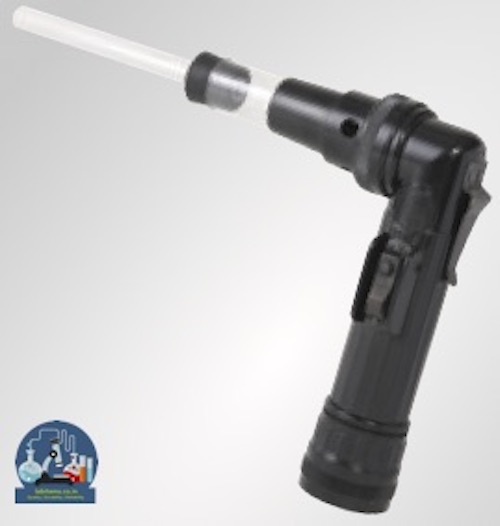

This device is invaluable for the rapid collection of biting and resting mosquitoes. Powered by two D-cell batteries, a small vacuum pulls the mosquito into a detachable tube. The respiratory hazards of mouth aspiration are eliminated. In a polluted situation this pooter has great advantages as it offers a clean way to suck up insects.

Specs Name

Description

Housing

Flashlight body, Type 1 Style 2 2- D cell battery right angle ABS plastic with belt clipwater proof black in color

Collection Chamber

5 cm x 3 cm

Motor assembly

Model #RE-260RA-2670

Rubber stopper

Made of natural rubber SBR 28 mm top / 24 mm bottom with 25 mm in length and a 12 mm hole in center

Extension tube

12.7 cm 15.24 cm - 1.27 cm OD X.95 cm ID acrylic tube

Dimension of the handle

length x diameter => 200 x 49 mm

Dimension of suction tube

length x internal diameter => 153 x 9 mm

Dimension of collecting container

length x internal diameter => 50 x 28 mm


For accessories, missing parts and replacements please see here

For mosquito related utilities and accessories, please visit here



Note: This aspirator is sale only. Service and spares are not easily available or expensive.
Aspirator
  • Types of Aspirator
    Mechanical Aspirator
  • Power Requrement
    DC
  • Aspirator Straw
    10 cm
  • Type of Aspirator Straw
    Straight
  • Opening of the Aspiration Straw
    10mm
  • Suitable for
    Agriculture insects
  • Warranty on Aspirator
    NA
  • Warranty on Accessories like Collection Vial and Straw
    NA
  • Total Number of Aspirator Straws
    1 no's
Battery Charger
  • Battery Charger Supplied
    No
  • Battery Type Chargeable
    Lithium Ion Batteries
  • Capacity of Battery Chargeable
    NA
  • Chargeable Power
    NA
  • Operation
    NA
Power Requirements
  • Power Requirement
    Yes
  • DC Power Use
    Yes
  • AC Power Use
    No
  • Battery Operated
    Yes
  • Battery
    4.5v
  • Connecting Cable Required
    NA
  • DC Cable Required
    No
  • Rechargeable Batteries
    No
  • Are Required Batteries Supplied with the Unit
    No, its an additional purchase
  • Battery Charger
    NA
  • DC Power Cable Length
    NA
  • AC Power Cable Length
    NA
